F175AET
Section 14: FUEL 1 (v2)
Engine sections in this catalog
SCHEDULED SERVICE PARTS
INTAKE 2
INTAKE 3
FUEL INJECTION PUMP 1
FUEL INJECTION PUMP 2
FUEL 1
FUEL 2
GENERATOR
ELECTRICAL 1
ELECTRICAL 2
ELECTRICAL 3
TOP COWLING
ELECTRICAL 4
ELECTRICAL 5
ELECTRICAL 6
STARTING MOTOR
BOTTOM COWLING 1
BOTTOM COWLING 2
BOTTOM COWLING 3
CONTROL
BRACKET 1
BRACKET 2
CYLINDER & CRANKCASE 1
POWER TRIM & TILT ASSY 1
POWER TRIM & TILT ASSY 2
UPPER CASING
OIL PAN
LOWER CASING & DRIVE 1
LOWER CASING & DRIVE 2
STEERING GUIDE
OPTIONAL PARTS 1
OPTIONAL PARTS 2
REPAIR KIT 1
CRANKSHAFT & PISTON
REPAIR KIT 2
CYLINDER & CRANKCASE 2
CYLINDER & CRANKCASE 3
CYLINDER & CRANKCASE 4
VALVE
INTAKE 1

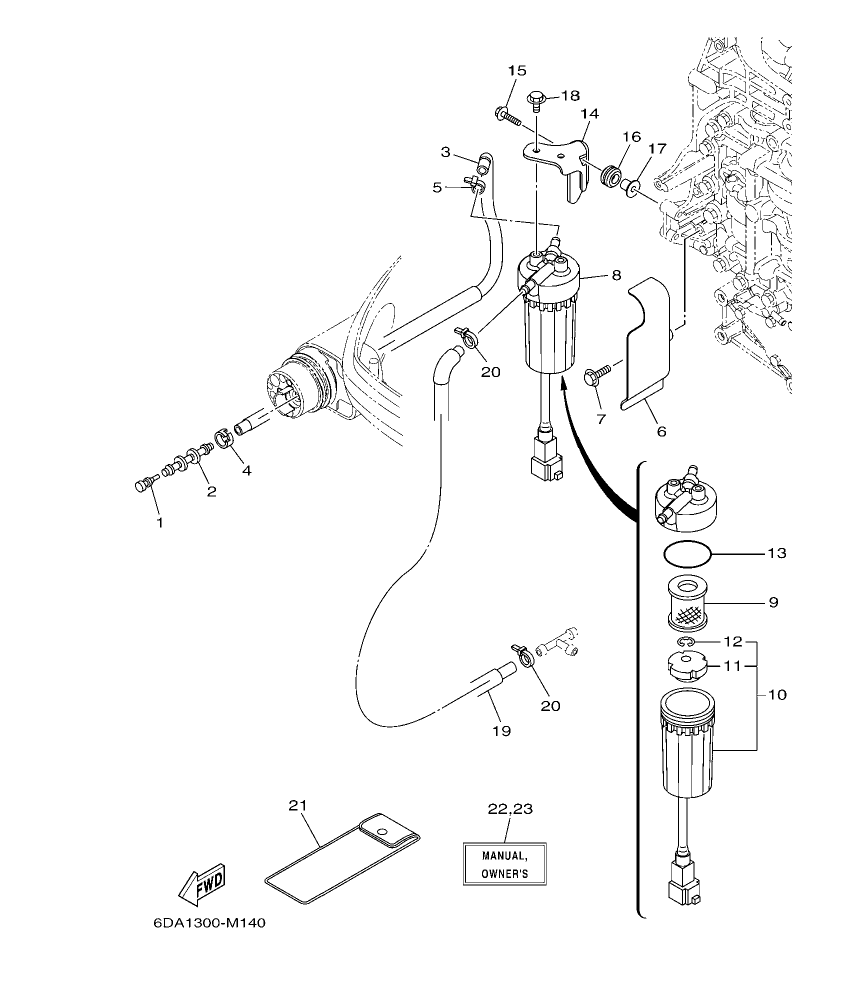

Diagram for section 14: FUEL 1.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
689–85547–00
DAMPER
|
1 | Ask on WhatsApp |
| 2 |
6AW–24377–01
PIPE, JOINT 2
|
1 | Ask on WhatsApp |
| 3 |
6DA–24314–10
PIPE 4
|
1 | Ask on WhatsApp |
| 4 |
6E5–24351–51
BAND 1
|
1 | Ask on WhatsApp |
| 5 |
90465–11M10
CLAMP
|
1 | Ask on WhatsApp |
| 6 |
6DA–24596–00
COVER
|
1 | Ask on WhatsApp |
| 7 |
95895–06025
BOLT, FLANGE
|
2 | Ask on WhatsApp |
| 8 |
6P3–24560–03
FILTER ASSY
|
1 | Ask on WhatsApp |
| 9 |
6P3–24563–01
.ELEMENT, FILTER
|
1 | Ask on WhatsApp |
| 10 |
6P3–24562–03
.CUP, FILTER
|
1 | Ask on WhatsApp |
| 11 |
6P3–24469–00
..FLOAT, WATER LEVEL
|
1 | Ask on WhatsApp |
| 12 |
6P3–24519–00
..CLIP
|
1 | Ask on WhatsApp |
| 13 |
6P3–24564–00
.GASKET
|
1 | Ask on WhatsApp |
| 14 |
6DA–24566–00
BRACKET, FILTER
|
1 | Ask on WhatsApp |
| 15 |
90119–06M17
BOLT, WITH WASHER
|
2 | Ask on WhatsApp |
| 16 |
90480–15013
GROMMET
|
2 | Ask on WhatsApp |
| 17 |
90387–06289
COLLAR
|
2 | Ask on WhatsApp |
| 18 |
95895–06012
BOLT, FLANGE
|
2 | Ask on WhatsApp |
| 19 |
6DA–24313–10
PIPE 3
|
1 | Ask on WhatsApp |
| 20 |
90465–11M10
CLAMP
|
2 | Ask on WhatsApp |
| 21 |
69J–28100–01
TOOL KIT
|
1 | Ask on WhatsApp |
| 22 |
6DA–28199–71–D0
MANUAL,OWNER'S
|
1 | Ask on WhatsApp |
| 22 |
6DA–28199–71–E0
MANUAL,OWNER'S
|
1 | Ask on WhatsApp |
| 22 |
6DA–28199–71–F0
MANUAL,OWNER'S
|
1 | Ask on WhatsApp |
| 22 |
6DA–28199–71–G0
MANUAL,OWNER'S
|
1 | Ask on WhatsApp |
| 22 |
6DA–28199–71–H0
MANUAL,OWNER'S
|
1 | Ask on WhatsApp |
| 22 |
6DA–28199–71–S0
MANUAL,OWNER'S
|
1 | Ask on WhatsApp |
| 23 |
6DA–28199–81–K0
MANUAL,OWNER'S
|
1 | Ask on WhatsApp |
| 23 |
6DA–28199–81–L0
MANUAL,OWNER'S
|
1 | Ask on WhatsApp |
| 23 |
6DA–28199–81–M0
MANUAL,OWNER'S
|
1 | Ask on WhatsApp |
| 23 |
6DA–28199–81–N0
MANUAL,OWNER'S
|
1 | Ask on WhatsApp |
| 23 |
6DA–28199–81–P0
MANUAL,OWNER'S
|
1 | Ask on WhatsApp |
| 23 |
6DA–28199–81–R0
MANUAL,OWNER'S
|
1 | Ask on WhatsApp |
