F175AET – section 18 ELECTRICAL 2 parts diagram

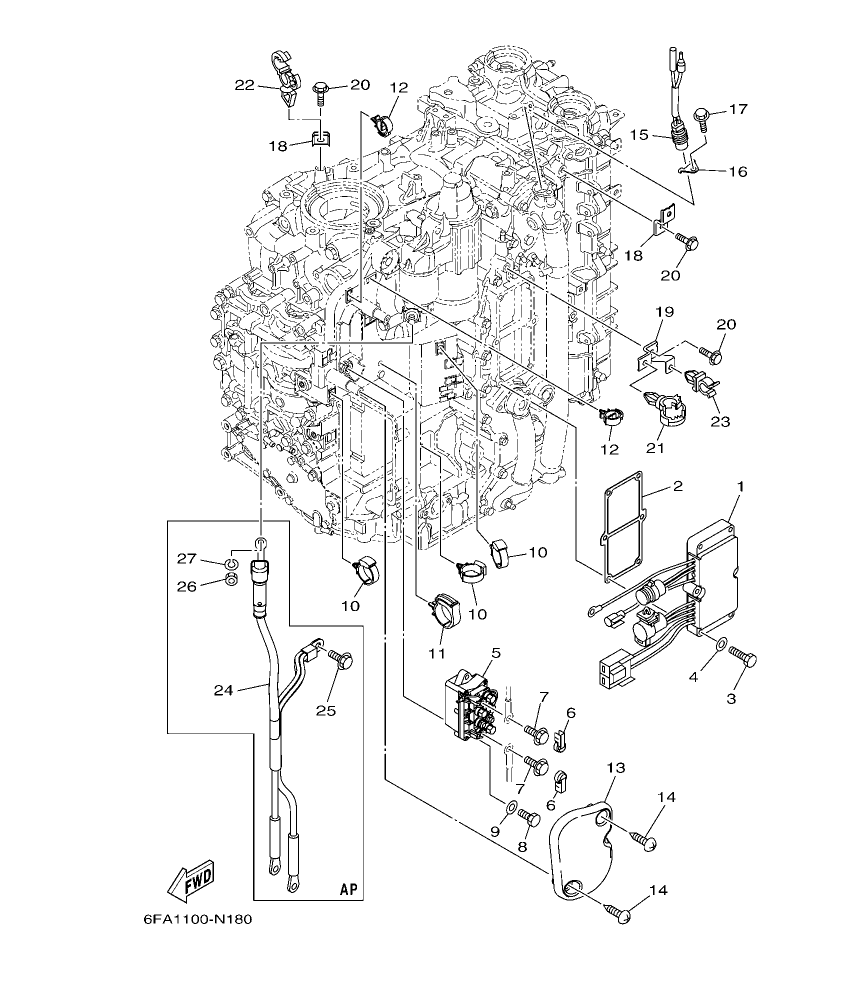

Diagram for section 18: ELECTRICAL 2.

Ref Part No. Qty Buy
1
6DA–81960–00
RECTIFIER & REGULATOR ASSY
 1 Ask on WhatsApp
2
6DA–81975–00
PLATE, RECTIFIER FITTING
 1 Ask on WhatsApp
3
97095–06035
BOLT
 6 Ask on WhatsApp
4
92995–06600
WASHER
 6 Ask on WhatsApp
5
63P–81950–00
RELAY ASSY
 1 Ask on WhatsApp
6
6P2–8183X–00
CAP, TERMINAL
 2 Ask on WhatsApp
7
97595–06610
BOLT, WITH WASHER
 2 Ask on WhatsApp
8
97095–06020
BOLT
 2 Ask on WhatsApp
9
92995–06600
WASHER
 2 Ask on WhatsApp
10
90464–12183
CLAMP
 3 Ask on WhatsApp
11
90464–32002
CLAMP
 1 Ask on WhatsApp
12
90464–18246
CLAMP
 2 Ask on WhatsApp
13
6DA–81942–00
COVER
 1 Ask on WhatsApp
14
90169–05M00
SCREW, TRUSS HEAD TAPPING
 2 Ask on WhatsApp
15
6P2–82560–01
THERMO SWITCH ASSY
 1 Ask on WhatsApp
16
6E9–82588–00
PLATE
 1 Ask on WhatsApp
17
95895–06012
BOLT, FLANGE
 1 Ask on WhatsApp
18
6DA–82388–00
PLATE
 2 Ask on WhatsApp
19
6DA–82389–00
PLATE 2
 1 Ask on WhatsApp
20
95895–06016
BOLT, FLANGE
 3 Ask on WhatsApp
21
90464–20181
CLAMP
 1 Ask on WhatsApp
22
90464–13249
CLAMP
 1 Ask on WhatsApp
23
90464–09008
CLAMP
 1 Ask on WhatsApp
24
6DA–82105–01
BATTERY CABLE
 1 Ask on WhatsApp
25
95895–08016
BOLT, FLANGE
 1 Ask on WhatsApp
26
95333–08600
NUT
 1 Ask on WhatsApp
27
92903–08100
WASHER, SPRING
 1 Ask on WhatsApp
