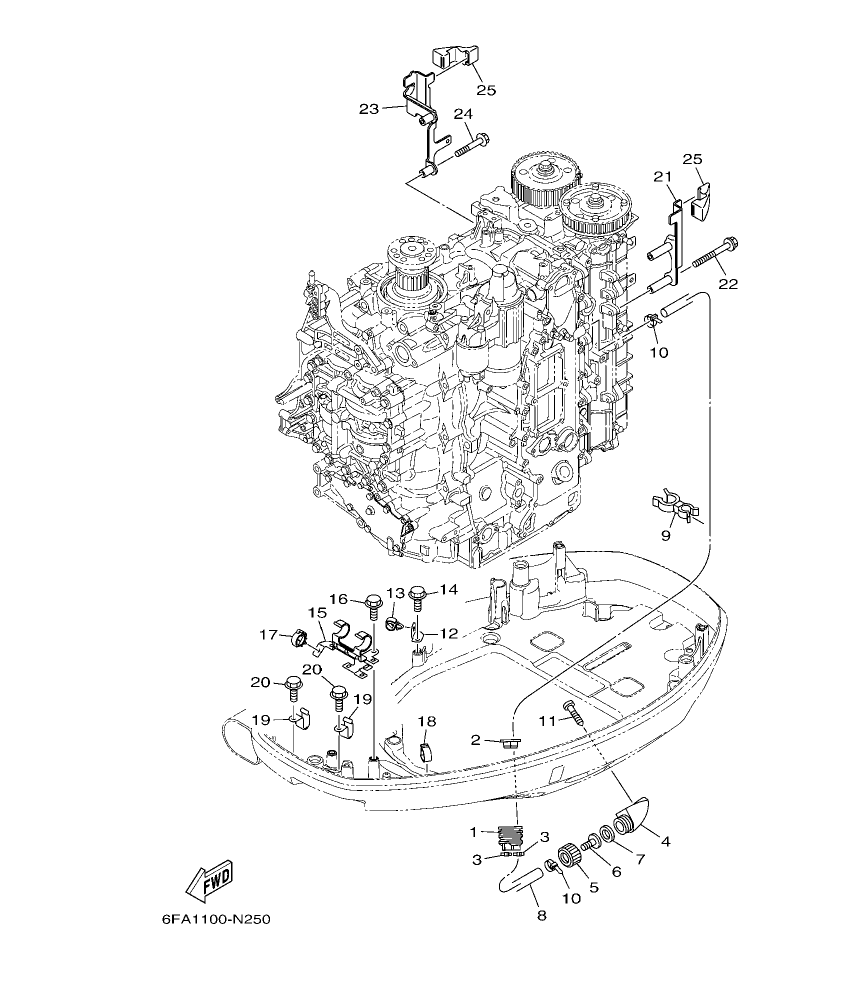

F175AET – section 26 BOTTOM COWLING 3 parts diagram

Diagram for section 26: BOTTOM COWLING 3.

Ref Part No. Qty Buy
1
6H1–42726–21
GROMMET
 1 Ask on WhatsApp
2
6BG–42384–00
SEAL, CAP
 1 Ask on WhatsApp
3
90465–11M10
CLAMP
 2 Ask on WhatsApp
4
6AW–12572–00
ADAPTER
 1 Ask on WhatsApp
5
6R3–12581–00
JOINT, HOSE 1
 1 Ask on WhatsApp
6
6AW–12582–00
JOINT, HOSE 2
 1 Ask on WhatsApp
7
6R3–12583–00
GASKET, HOSE JOINT
 1 Ask on WhatsApp
8
6DA–42541–00
PIPE 1
 1 Ask on WhatsApp
9
90464–21256
CLAMP
 1 Ask on WhatsApp
10
90465–11M10
CLAMP
 2 Ask on WhatsApp
11
97780–60520
SCREW, TAPPING
 2 Ask on WhatsApp
12
63P–42756–00
STAY, CLAMP
 1 Ask on WhatsApp
13
90464–13249
CLAMP
 1 Ask on WhatsApp
14
95895–06012
BOLT, FLANGE
 1 Ask on WhatsApp
15
6DA–8366G–00
BRACKET 3
 1 Ask on WhatsApp
16
95895–06012
BOLT, FLANGE
 2 Ask on WhatsApp
17
90464–18246
CLAMP
 1 Ask on WhatsApp
18
90464–18004
CLAMP
 1 Ask on WhatsApp
19
90462–12013
CLAMP
 2 Ask on WhatsApp
20
95895–06012
BOLT, FLANGE
 2 Ask on WhatsApp
21
6DA–11998–00
BRACKET 1
 1 Ask on WhatsApp
22
95895–06065
BOLT, FLANGE
 2 Ask on WhatsApp
23
6DA–11999–00
BRACKET 2
 1 Ask on WhatsApp
24
95895–06040
BOLT, FLANGE
 2 Ask on WhatsApp
25
6CB–42662–00
DAMPER
 2 Ask on WhatsApp
