F175AET

Section 2: TOP COWLING (v2)

Engine sections in this catalog
SCHEDULED SERVICE PARTS INTAKE 2 INTAKE 3 FUEL INJECTION PUMP 1 FUEL INJECTION PUMP 2 FUEL 1 FUEL 2 GENERATOR ELECTRICAL 1 ELECTRICAL 2 ELECTRICAL 3 TOP COWLING ELECTRICAL 4 ELECTRICAL 5 ELECTRICAL 6 STARTING MOTOR BOTTOM COWLING 1 BOTTOM COWLING 2 BOTTOM COWLING 3 CONTROL BRACKET 1 BRACKET 2 CYLINDER & CRANKCASE 1 POWER TRIM & TILT ASSY 1 POWER TRIM & TILT ASSY 2 UPPER CASING OIL PAN LOWER CASING & DRIVE 1 LOWER CASING & DRIVE 2 STEERING GUIDE OPTIONAL PARTS 1 OPTIONAL PARTS 2 REPAIR KIT 1 CRANKSHAFT & PISTON REPAIR KIT 2 CYLINDER & CRANKCASE 2 CYLINDER & CRANKCASE 3 CYLINDER & CRANKCASE 4 VALVE INTAKE 1

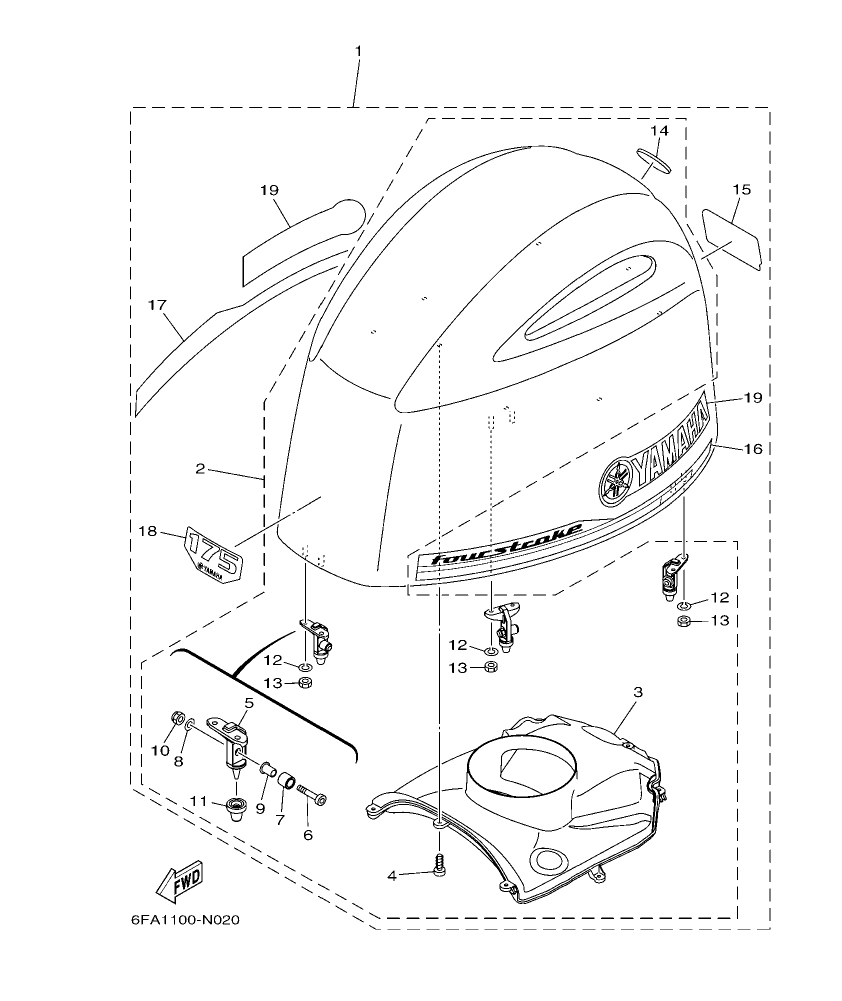

F175AET – section 2 TOP COWLING parts diagram

Diagram for section 2: TOP COWLING.

Ref Part No. Qty Buy
1
6FA–42610–00
TOP COWLING ASSY
 1 Ask on WhatsApp
2
6DA–4261A–00
.TOP COWLING COMPLETE
 1 Ask on WhatsApp
3
6DA–42613–00
..MOLDING, AIR DUCT
 1 Ask on WhatsApp
4
90167–05017
..SCREW, TAPPING
 8 Ask on WhatsApp
5
6CB–42647–00
..HOLDER, CLAMP BAND
 3 Ask on WhatsApp
6
90111–08078
..BOLT,HEX. SOCKET BUTTON
 3 Ask on WhatsApp
7
90387–10094
..COLLAR
 3 Ask on WhatsApp
8
92990–08600
..WASHER, PLATE
 3 Ask on WhatsApp
9
90387–08M45
..COLLAR
 3 Ask on WhatsApp
10
95780–08300
..NUT, FLANGE
 3 Ask on WhatsApp
11
6AW–42663–00
..DAMPER
 3 Ask on WhatsApp
12
92990–06100
..WASHER, SPRING
 6 Ask on WhatsApp
13
95380–06600
..NUT, HEXAGON
 6 Ask on WhatsApp
14
6DA–42697–00
..TUNING FORK MARK
 1 Ask on WhatsApp
15
6FA–42678–00
.GRAPHIC, REAR
 1 Ask on WhatsApp
16
6DA–42675–00
.GRAPHIC, SIDE 1
 1 Ask on WhatsApp
17
6DA–42676–00
.GRAPHIC, SIDE 2
 1 Ask on WhatsApp
18
6FA–42677–00
.GRAPHIC, FRONT
 1 Ask on WhatsApp
19
63P–42681–20
.MARK, COWLING
 2 Ask on WhatsApp
