F175AET

Section 9: INTAKE 1 (v2)

Engine sections in this catalog
SCHEDULED SERVICE PARTS INTAKE 2 INTAKE 3 FUEL INJECTION PUMP 1 FUEL INJECTION PUMP 2 FUEL 1 FUEL 2 GENERATOR ELECTRICAL 1 ELECTRICAL 2 ELECTRICAL 3 TOP COWLING ELECTRICAL 4 ELECTRICAL 5 ELECTRICAL 6 STARTING MOTOR BOTTOM COWLING 1 BOTTOM COWLING 2 BOTTOM COWLING 3 CONTROL BRACKET 1 BRACKET 2 CYLINDER & CRANKCASE 1 POWER TRIM & TILT ASSY 1 POWER TRIM & TILT ASSY 2 UPPER CASING OIL PAN LOWER CASING & DRIVE 1 LOWER CASING & DRIVE 2 STEERING GUIDE OPTIONAL PARTS 1 OPTIONAL PARTS 2 REPAIR KIT 1 CRANKSHAFT & PISTON REPAIR KIT 2 CYLINDER & CRANKCASE 2 CYLINDER & CRANKCASE 3 CYLINDER & CRANKCASE 4 VALVE INTAKE 1

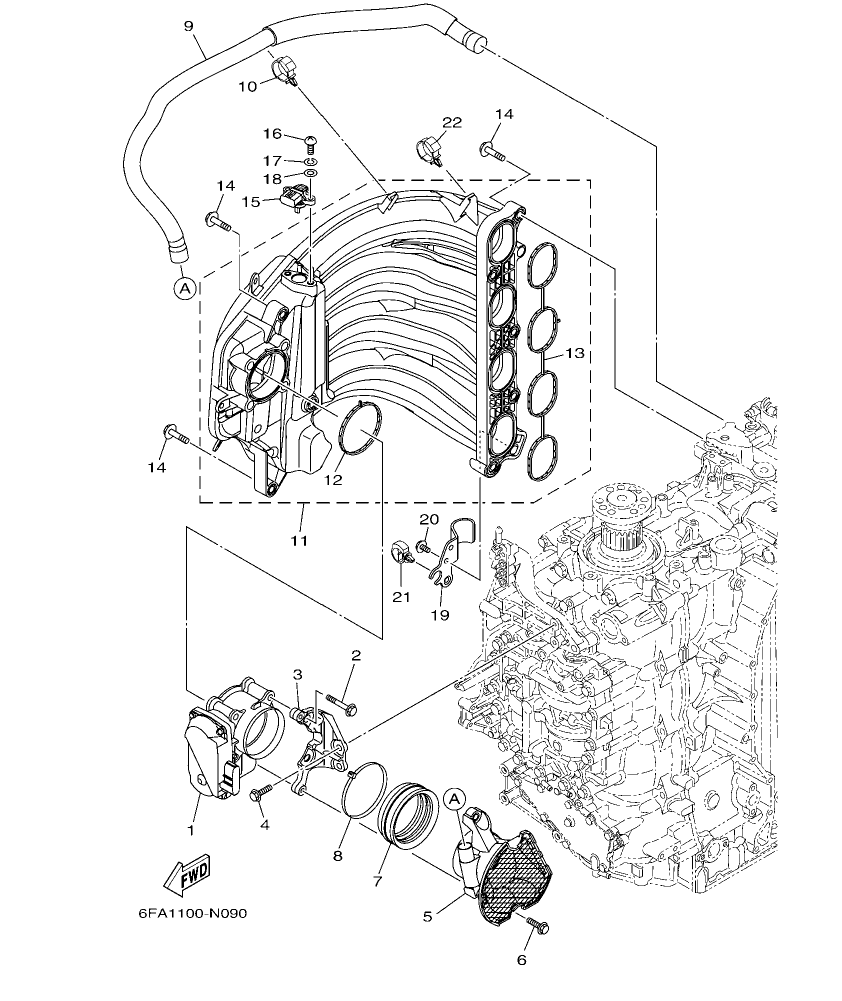

F175AET – section 9 INTAKE 1 parts diagram

Diagram for section 9: INTAKE 1.

Ref Part No. Qty Buy
1
6DA–13751–00
BODY, THROTTLE 1
 1 Ask on WhatsApp
2
97575–08560
BOLT, WITH WASHER
 4 Ask on WhatsApp
3
6DA–13152–00
STAY 2
 1 Ask on WhatsApp
4
95875–06025
BOLT, FLANGE
 2 Ask on WhatsApp
5
6DA–14440–00
SILENCER ASSY, INTAKE
 1 Ask on WhatsApp
6
95875–06025
BOLT, FLANGE
 2 Ask on WhatsApp
7
6P2–1441J–00
PIPE, SILENCER
 1 Ask on WhatsApp
8
90464–99004
CLAMP
 1 Ask on WhatsApp
9
6DA–15373–00
PIPE, BREATHER
 1 Ask on WhatsApp
10
90464–12183
CLAMP
 1 Ask on WhatsApp
11
6DA–13641–00
MANIFOLD, INTAKE 1
 1 Ask on WhatsApp
12
6DA–13646–00
.GASKET, MANIFOLD 2
 1 Ask on WhatsApp
13
6DA–13645–00
.GASKET, MANIFOLD 1
 1 Ask on WhatsApp
14
90119–08020
BOLT, WITH WASHER
 9 Ask on WhatsApp
15
68F–83688–10
SENSOR ASSY
 1 Ask on WhatsApp
16
97885–05016
SCREW, PAN HEAD
 2 Ask on WhatsApp
17
92995–05100
WASHER
 2 Ask on WhatsApp
18
92995–05600
WASHER
 2 Ask on WhatsApp
19
6DA–13881–00
COVER 1
 1 Ask on WhatsApp
20
95895–06012
BOLT, FLANGE
 2 Ask on WhatsApp
21
90464–20181
CLAMP
 1 Ask on WhatsApp
22
90464–12183
CLAMP
 1 Ask on WhatsApp
