F175AET
Section 22: ELECTRICAL 6 (v2)
Engine sections in this catalog
SCHEDULED SERVICE PARTS
INTAKE 2
INTAKE 3
FUEL INJECTION PUMP 1
FUEL INJECTION PUMP 2
FUEL 1
FUEL 2
GENERATOR
ELECTRICAL 1
ELECTRICAL 2
ELECTRICAL 3
TOP COWLING
ELECTRICAL 4
ELECTRICAL 5
ELECTRICAL 6
STARTING MOTOR
BOTTOM COWLING 1
BOTTOM COWLING 2
BOTTOM COWLING 3
CONTROL
BRACKET 1
BRACKET 2
CYLINDER & CRANKCASE 1
POWER TRIM & TILT ASSY 1
POWER TRIM & TILT ASSY 2
UPPER CASING
OIL PAN
LOWER CASING & DRIVE 1
LOWER CASING & DRIVE 2
STEERING GUIDE
OPTIONAL PARTS 1
OPTIONAL PARTS 2
REPAIR KIT 1
CRANKSHAFT & PISTON
REPAIR KIT 2
CYLINDER & CRANKCASE 2
CYLINDER & CRANKCASE 3
CYLINDER & CRANKCASE 4
VALVE
INTAKE 1

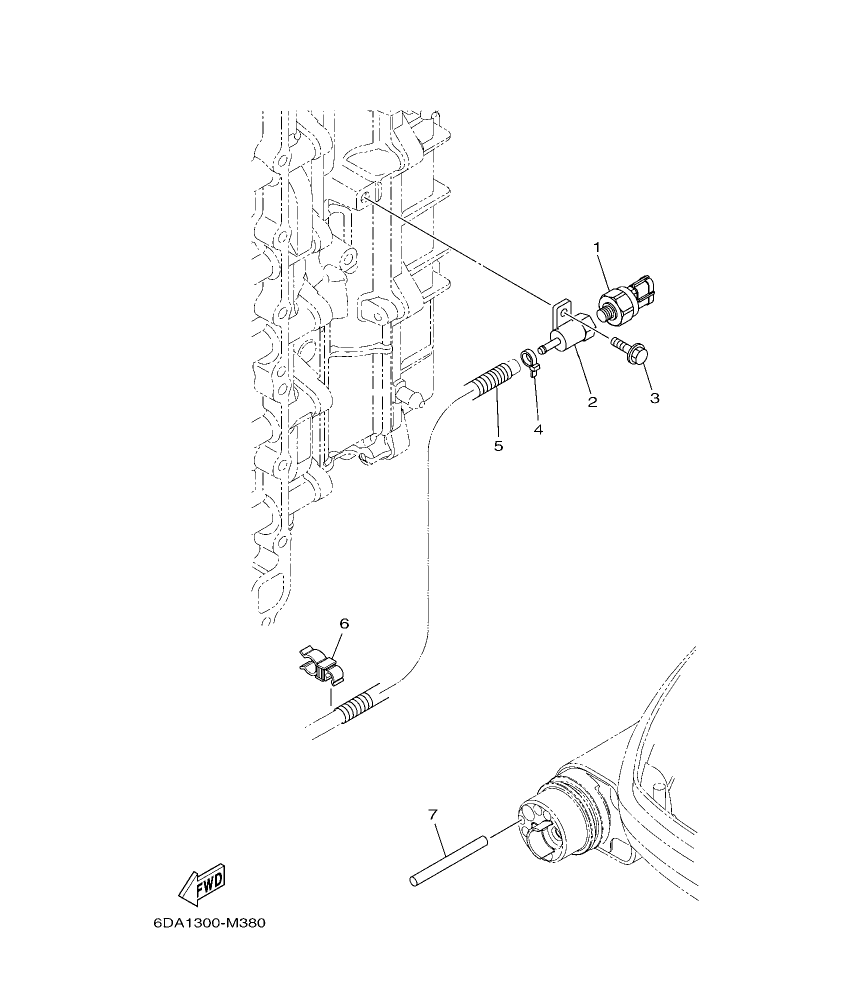

Diagram for section 22: ELECTRICAL 6.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
6AW–8366B–01
SENSOR, WATER PRESSURE
|
1 | Ask on WhatsApp |
| 2 |
60V–8366D–00
ADAPTOR, INPUT
|
1 | Ask on WhatsApp |
| 3 |
95895–06016
BOLT, FLANGE
|
1 | Ask on WhatsApp |
| 4 |
90465–11M10
CLAMP
|
1 | Ask on WhatsApp |
| 5 |
90447–07008
HOSE, WITH SPRING (L200)
|
1 | Ask on WhatsApp |
| 6 |
90464–13013
CLAMP
|
1 | Ask on WhatsApp |
| 7 |
60V–42629–00
SEAL
|
1 | Ask on WhatsApp |
