F175AET

Section 39: REPAIR KIT 1 (v2)

Engine sections in this catalog
SCHEDULED SERVICE PARTS INTAKE 2 INTAKE 3 FUEL INJECTION PUMP 1 FUEL INJECTION PUMP 2 FUEL 1 FUEL 2 GENERATOR ELECTRICAL 1 ELECTRICAL 2 ELECTRICAL 3 TOP COWLING ELECTRICAL 4 ELECTRICAL 5 ELECTRICAL 6 STARTING MOTOR BOTTOM COWLING 1 BOTTOM COWLING 2 BOTTOM COWLING 3 CONTROL BRACKET 1 BRACKET 2 CYLINDER & CRANKCASE 1 POWER TRIM & TILT ASSY 1 POWER TRIM & TILT ASSY 2 UPPER CASING OIL PAN LOWER CASING & DRIVE 1 LOWER CASING & DRIVE 2 STEERING GUIDE OPTIONAL PARTS 1 OPTIONAL PARTS 2 REPAIR KIT 1 CRANKSHAFT & PISTON REPAIR KIT 2 CYLINDER & CRANKCASE 2 CYLINDER & CRANKCASE 3 CYLINDER & CRANKCASE 4 VALVE INTAKE 1

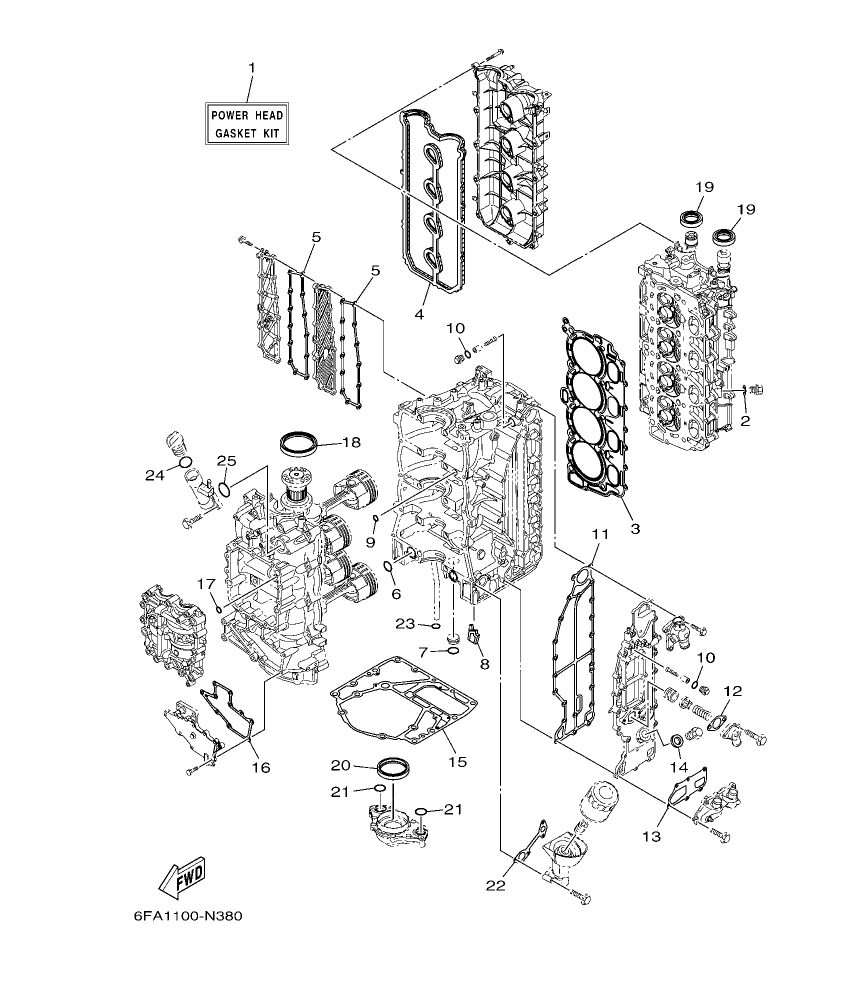

F175AET – section 39 REPAIR KIT 1 parts diagram

Diagram for section 39: REPAIR KIT 1.

Ref Part No. Qty Buy
1
6FA–W0001–00
POWER HEAD GASKET KIT
 1 Ask on WhatsApp
2
90430–14115
.GASKET
 1 Ask on WhatsApp
3
6DA–11181–00
.GASKET, CYLINDER HEAD 1
 1 Ask on WhatsApp
4
6DA–11193–00
.GASKET, HEAD COVER 1
 1 Ask on WhatsApp
5
6DA–15353–00
.GASKET, DRAIN
 2 Ask on WhatsApp
6
93210–25552
.O-RING
 2 Ask on WhatsApp
7
93210–25647
.O-RING
 1 Ask on WhatsApp
8
6DA–14664–00
.GROMMET, WATER SHUT
 1 Ask on WhatsApp
9
93210–12648
.O-RING
 1 Ask on WhatsApp
10
93210–13M63
.O-RING
 2 Ask on WhatsApp
11
6DA–41114–00
.GASKET, EXHAUST OUTER COVER
 1 Ask on WhatsApp
12
60V–11382–A0
.GASKET 2
 1 Ask on WhatsApp
13
6DA–11381–00
.GASKET 1
 1 Ask on WhatsApp
14
90430–18130
.GASKET
 1 Ask on WhatsApp
15
63P–11351–01
.GASKET, CYLINDER
 1 Ask on WhatsApp
16
6DA–15451–00
.GASKET, CRANKCASE COVER 1
 1 Ask on WhatsApp
17
93210–08001
.O-RING
 1 Ask on WhatsApp
18
93102–85008
.OIL SEAL
 1 Ask on WhatsApp
19
93102–38008
.OIL SEAL
 2 Ask on WhatsApp
20
6CB–11355–00
.SEAL, CYLINDER 1
 1 Ask on WhatsApp
21
93210–25552
.O-RING
 2 Ask on WhatsApp
22
6DA–13475–00
.GASKET
 1 Ask on WhatsApp
23
93210–19MJ3
.O-RING
 1 Ask on WhatsApp
24
93210–24M79
.O-RING
 1 Ask on WhatsApp
25
93210–357A3
.O-RING
 1 Ask on WhatsApp
