F175AET

Section 4: CRANKSHAFT & PISTON (v2)

Engine sections in this catalog
SCHEDULED SERVICE PARTS INTAKE 2 INTAKE 3 FUEL INJECTION PUMP 1 FUEL INJECTION PUMP 2 FUEL 1 FUEL 2 GENERATOR ELECTRICAL 1 ELECTRICAL 2 ELECTRICAL 3 TOP COWLING ELECTRICAL 4 ELECTRICAL 5 ELECTRICAL 6 STARTING MOTOR BOTTOM COWLING 1 BOTTOM COWLING 2 BOTTOM COWLING 3 CONTROL BRACKET 1 BRACKET 2 CYLINDER & CRANKCASE 1 POWER TRIM & TILT ASSY 1 POWER TRIM & TILT ASSY 2 UPPER CASING OIL PAN LOWER CASING & DRIVE 1 LOWER CASING & DRIVE 2 STEERING GUIDE OPTIONAL PARTS 1 OPTIONAL PARTS 2 REPAIR KIT 1 CRANKSHAFT & PISTON REPAIR KIT 2 CYLINDER & CRANKCASE 2 CYLINDER & CRANKCASE 3 CYLINDER & CRANKCASE 4 VALVE INTAKE 1

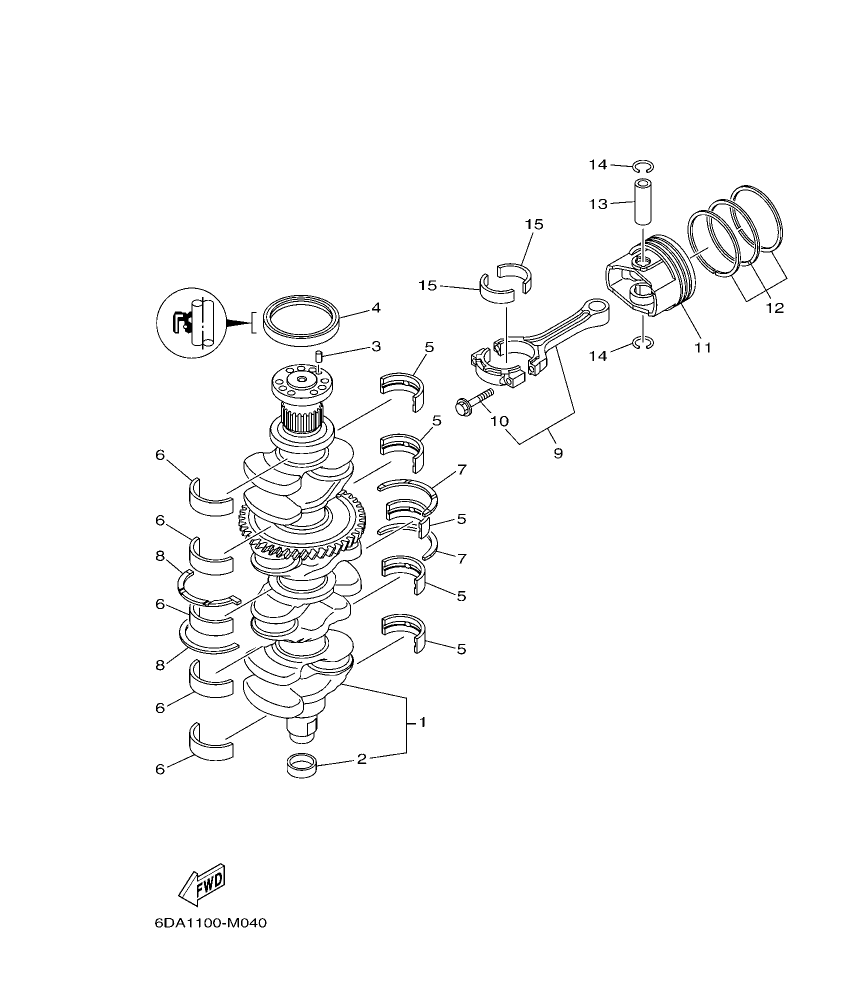

F175AET – section 4 CRANKSHAFT & PISTON parts diagram

Diagram for section 4: CRANKSHAFT & PISTON.

Ref Part No. Qty Buy
1
6DA–11410–00
CRANKSHAFT
 1 Ask on WhatsApp
2
6CB–11478–00
.COLLAR
 1 Ask on WhatsApp
3
93606–12019
PIN, DOWEL
 1 Ask on WhatsApp
4
93102–85008
OIL SEAL
 1 Ask on WhatsApp
5
6DA–11416–00
PLANE BEARING, CRANKSHAFT 1
 5 Ask on WhatsApp
5
6DA–11416–10
PLANE BEARING, CRANKSHAFT 1
 5 Ask on WhatsApp
5
6DA–11416–20
PLANE BEARING, CRANKSHAFT 1
 5 Ask on WhatsApp
6
6DA–11417–00
PLANE BEARING, CRANKSHAFT 2
 5 Ask on WhatsApp
6
6DA–11417–10
PLANE BEARING, CRANKSHAFT 2
 5 Ask on WhatsApp
6
6DA–11417–20
PLANE BEARING, CRANKSHAFT 2
 5 Ask on WhatsApp
7
6DA–11426–00
BEARING, THRUST 1
 2 Ask on WhatsApp
8
6DA–11427–00
BEARING, THRUST 2
 2 Ask on WhatsApp
9
6CB–W1165–00
CONNECTING ROD ASSY
 4 Ask on WhatsApp
10
6CB–11654–00
.BOLT, CONNECTING ROD
 2 Ask on WhatsApp
11
6FA–11631–00–94
PISTON (STD)
 4 Ask on WhatsApp
12
6CB–11603–00
PISTON RING SET (STD)
 4 Ask on WhatsApp
13
6CB–11633–00
PIN, PISTON
 4 Ask on WhatsApp
14
K0F–A3233–00
RING,HOLE SNAP
 8 Ask on WhatsApp
15
6CB–11656–00
PLANE BEARING, CONNECTING ROD
 8 Ask on WhatsApp
15
6CB–11656–10
PLANE BEARING, CONNECTING ROD
 8 Ask on WhatsApp
15
6CB–11656–20
PLANE BEARING, CONNECTING ROD
 8 Ask on WhatsApp
