Section 23: BOTTOM COWLING 1 (v2)
Engine sections in this catalog
SCHEDULED SERVICE PARTS
FUEL INJECTION PUMP 1
FUEL INJECTION PUMP 2
EXHAUST
FUEL 1
FUEL 2
GENERATOR
ELECTRICAL 1
ELECTRICAL 2
ELECTRICAL 3
ELECTRICAL 4
TOP COWLING
ELECTRICAL 5
ELECTRICAL 6
STARTING MOTOR
BOTTOM COWLING 1
BOTTOM COWLING 2
CONTROL
BRACKET 1
BRACKET 2
POWER TRIM & TILT ASSY 1
POWER TRIM & TILT ASSY 2
CYLINDER & CRANKCASE 1
UPPER CASING
OIL PAN
LOWER CASING & DRIVE 1
LOWER CASING & DRIVE 2
STEERING GUIDE
OPTIONAL PARTS 1
OPTIONAL PARTS 2
REPAIR KIT 1
REPAIR KIT 2
CRANKSHAFT & PISTON
CYLINDER & CRANKCASE 2
VALVE
INTAKE 1
INTAKE 2
INTAKE 3

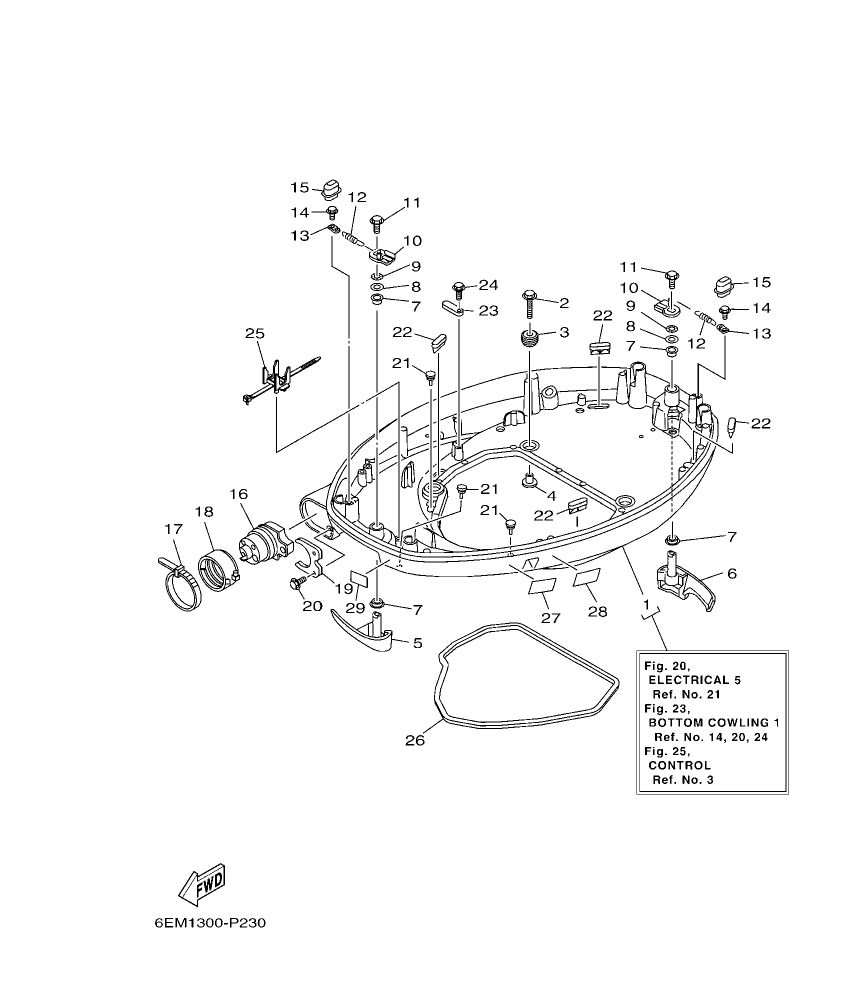

Diagram for section 23: BOTTOM COWLING 1.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
6EK–42710–00
BOTTOM COWLING ASSY
|
1 | Ask on WhatsApp |
| 2 |
90119–08M22
BOLT, WITH WASHER
|
4 | Ask on WhatsApp |
| 3 |
90480–22M15
GROMMET
|
4 | Ask on WhatsApp |
| 4 |
90387–08M37
COLLAR
|
4 | Ask on WhatsApp |
| 5 |
6EK–42815–00–8D
LEVER, CLAMP
|
1 | Ask on WhatsApp |
| 6 |
6EK–42816–00–8D
LEVER, CLAMP
|
1 | Ask on WhatsApp |
| 7 |
90386–15M73
BUSH
|
4 | Ask on WhatsApp |
| 8 |
90201–156J2
WASHER, PLATE
|
2 | Ask on WhatsApp |
| 9 |
90206–15M18
WASHER, WAVE
|
2 | Ask on WhatsApp |
| 10 |
6CB–42818–00
LEVER, CLAMP
|
2 | Ask on WhatsApp |
| 11 |
95895–08012
BOLT, FLANGE
|
2 | Ask on WhatsApp |
| 12 |
90506–22001
SPRING, TENSION
|
2 | Ask on WhatsApp |
| 13 |
66T–43144–00
HOOK, SPRING
|
2 | Ask on WhatsApp |
| 14 |
90109–06M86
BOLT
|
2 | Ask on WhatsApp |
| 15 |
6EK–42728–00
CAP
|
2 | Ask on WhatsApp |
| 16 |
6EK–42725–00
GROMMET
|
1 | Ask on WhatsApp |
| 17 |
90464–20258
CLAMP
|
1 | Ask on WhatsApp |
| 18 |
68F–42753–00
FASTNER
|
1 | Ask on WhatsApp |
| 19 |
6CB–42761–00
STOPPER
|
1 | Ask on WhatsApp |
| 20 |
90109–06M86
BOLT
|
2 | Ask on WhatsApp |
| 21 |
6H4–42748–00
GROMMET
|
3 | Ask on WhatsApp |
| 22 |
67F–42717–00
RUBBER, SEAL 2
|
4 | Ask on WhatsApp |
| 23 |
6E5–82588–00
PLATE
|
1 | Ask on WhatsApp |
| 24 |
90109–06M81
BOLT
|
1 | Ask on WhatsApp |
| 25 |
688–82594–00
CLAMP
|
1 | Ask on WhatsApp |
| 26 |
6EK–42716–00
RUBBER, SEAL 1
|
1 | Ask on WhatsApp |
| 27 |
6EE–42794–40
LABEL, WARNING (GENERAL)
|
1 | Ask on WhatsApp |
| 28 |
6EE–42794–50
LABEL, WARNING (GENERAL)
|
1 | Ask on WhatsApp |
| 29 |
6AH–81996–00
MARK
|
1 | Ask on WhatsApp |
