Section 3: CYLINDER & CRANKCASE 1 (v2)
Engine sections in this catalog
SCHEDULED SERVICE PARTS
FUEL INJECTION PUMP 1
FUEL INJECTION PUMP 2
EXHAUST
FUEL 1
FUEL 2
GENERATOR
ELECTRICAL 1
ELECTRICAL 2
ELECTRICAL 3
ELECTRICAL 4
TOP COWLING
ELECTRICAL 5
ELECTRICAL 6
STARTING MOTOR
BOTTOM COWLING 1
BOTTOM COWLING 2
CONTROL
BRACKET 1
BRACKET 2
POWER TRIM & TILT ASSY 1
POWER TRIM & TILT ASSY 2
CYLINDER & CRANKCASE 1
UPPER CASING
OIL PAN
LOWER CASING & DRIVE 1
LOWER CASING & DRIVE 2
STEERING GUIDE
OPTIONAL PARTS 1
OPTIONAL PARTS 2
REPAIR KIT 1
REPAIR KIT 2
CRANKSHAFT & PISTON
CYLINDER & CRANKCASE 2
VALVE
INTAKE 1
INTAKE 2
INTAKE 3

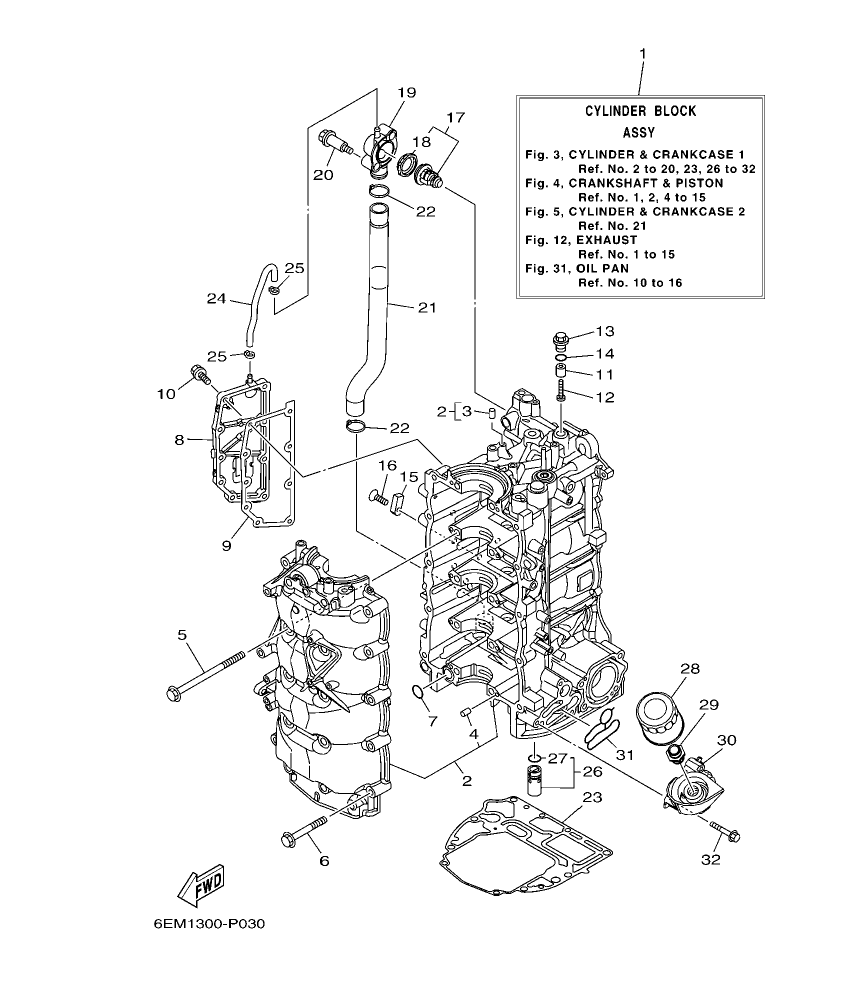

Diagram for section 3: CYLINDER & CRANKCASE 1.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
6EK–W009B–01–9S
CYLINDER BLOCK ASSY
|
1 | Ask on WhatsApp |
| 2 |
6EK–15109–01–9S
CRANKCASE ASSY
|
1 | Ask on WhatsApp |
| 3 |
93606–19M23
.PIN, DOWEL
|
1 | Ask on WhatsApp |
| 4 |
93606–12019
.PIN, DOWEL
|
10 | Ask on WhatsApp |
| 5 |
90119–10057
BOLT, WITH WASHER
|
10 | Ask on WhatsApp |
| 6 |
90105–08170
BOLT, FLANGE
|
10 | Ask on WhatsApp |
| 7 |
93210–19MJ1
O-RING
|
1 | Ask on WhatsApp |
| 8 |
6EK–15414–00–9S
COVER, AIR CLEANER
|
1 | Ask on WhatsApp |
| 9 |
6EK–15353–00
GASKET, DRAIN
|
1 | Ask on WhatsApp |
| 10 |
90105–06037
BOLT, FLANGE
|
9 | Ask on WhatsApp |
| 11 |
6G8–11325–00
ANODE
|
1 | Ask on WhatsApp |
| 12 |
98980–05025
SCREW, BIND
|
1 | Ask on WhatsApp |
| 13 |
6G8–11197–A0
PLUG, BLIND
|
1 | Ask on WhatsApp |
| 14 |
93210–13M63
O-RING
|
1 | Ask on WhatsApp |
| 15 |
63P–11325–01
ANODE
|
1 | Ask on WhatsApp |
| 16 |
90151–06M02
SCREW, COUNTERSUNK
|
1 | Ask on WhatsApp |
| 17 |
6EK–12411–00
THERMOSTAT
|
1 | Ask on WhatsApp |
| 18 |
6EK–12412–00
.SEAL, THERMOSTAT
|
1 | Ask on WhatsApp |
| 19 |
6EK–12413–00
COVER, THERMOSTAT
|
1 | Ask on WhatsApp |
| 20 |
90109–06286
BOLT
|
2 | Ask on WhatsApp |
| 21 |
6EK–1243A–00
HOSE 1
|
1 | Ask on WhatsApp |
| 22 |
90465–11M59
CLAMP
|
2 | Ask on WhatsApp |
| 23 |
6EK–11351–00
GASKET, CYLINDER
|
1 | Ask on WhatsApp |
| 24 |
6EK–12483–00
PIPE 3
|
1 | Ask on WhatsApp |
| 25 |
90465–11M10
CLAMP
|
2 | Ask on WhatsApp |
| 26 |
6EK–13490–00
RELIEF VALVE ASSY
|
1 | Ask on WhatsApp |
| 27 |
6CB–13473–00
.O-RING
|
1 | Ask on WhatsApp |
| 28 |
5GH–13440–30
ELEMENT ASSY, OIL CLEANER
|
1 | Ask on WhatsApp |
| 29 |
90401–20007
BOLT, UNION
|
1 | Ask on WhatsApp |
| 30 |
6EK–13446–00
CONNECTOR
|
1 | Ask on WhatsApp |
| 31 |
6EK–13475–00
GASKET
|
1 | Ask on WhatsApp |
| 32 |
90105–06151
BOLT, FLANGE
|
3 | Ask on WhatsApp |
