F130AET

Section 7: INTAKE 1 (v2)

Engine sections in this catalog
SCHEDULED SERVICE PARTS FUEL INJECTION PUMP 1 FUEL INJECTION PUMP 2 EXHAUST FUEL 1 FUEL 2 GENERATOR ELECTRICAL 1 ELECTRICAL 2 ELECTRICAL 3 ELECTRICAL 4 TOP COWLING ELECTRICAL 5 ELECTRICAL 6 STARTING MOTOR BOTTOM COWLING 1 BOTTOM COWLING 2 CONTROL BRACKET 1 BRACKET 2 POWER TRIM & TILT ASSY 1 POWER TRIM & TILT ASSY 2 CYLINDER & CRANKCASE 1 UPPER CASING OIL PAN LOWER CASING & DRIVE 1 LOWER CASING & DRIVE 2 STEERING GUIDE OPTIONAL PARTS 1 OPTIONAL PARTS 2 REPAIR KIT 1 REPAIR KIT 2 CRANKSHAFT & PISTON CYLINDER & CRANKCASE 2 VALVE INTAKE 1 INTAKE 2 INTAKE 3

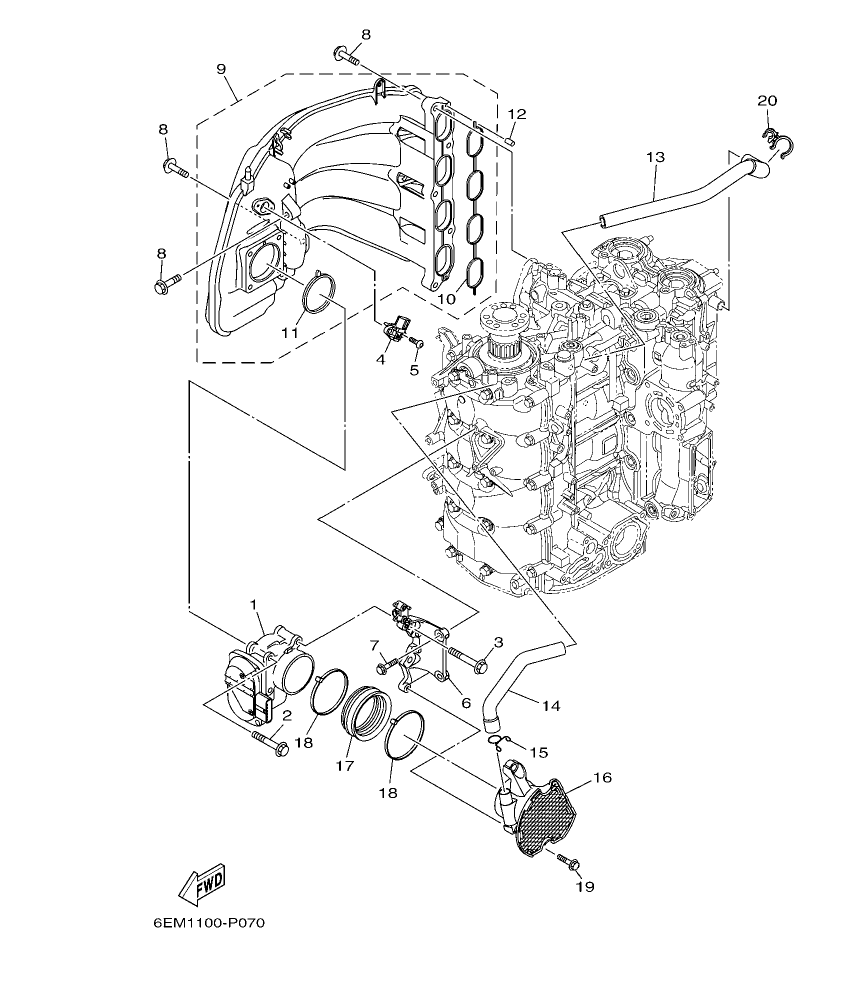

F130AET – section 7 INTAKE 1 parts diagram

Diagram for section 7: INTAKE 1.

Ref Part No. Qty Buy
1
6EM–13751–00
BODY, THROTTLE 1
 1 Ask on WhatsApp
2
95875–08060
BOLT, FLANGE
 2 Ask on WhatsApp
3
90105–08186
BOLT, FLANGE
 2 Ask on WhatsApp
4
68F–83688–10
SENSOR ASSY
 1 Ask on WhatsApp
5
90111–05037
BOLT,HEX. SOCKET BUTTON
 2 Ask on WhatsApp
6
6EK–13152–02
STAY 2
 1 Ask on WhatsApp
7
95875–06025
BOLT, FLANGE
 2 Ask on WhatsApp
8
90119–08022
BOLT, WITH WASHER
 8 Ask on WhatsApp
9
6EM–13641–00
MANIFOLD, INTAKE 1
 1 Ask on WhatsApp
10
6EK–13645–00
.GASKET, MANIFOLD 1
 1 Ask on WhatsApp
11
6EK–13646–00
.GASKET, MANIFOLD 2
 1 Ask on WhatsApp
12
91690–50014
PIN, SPRING
 2 Ask on WhatsApp
13
6EK–15373–00
PIPE, BREATHER
 1 Ask on WhatsApp
14
6EK–15393–00
PIPE, BREATHER 2
 1 Ask on WhatsApp
15
90467–23M16
CLIP
 1 Ask on WhatsApp
16
6DA–14440–00
SILENCER ASSY, INTAKE
 1 Ask on WhatsApp
17
6P2–1441J–00
PIPE, SILENCER
 1 Ask on WhatsApp
18
90464–99004
CLAMP
 2 Ask on WhatsApp
19
95875–06025
BOLT, FLANGE
 2 Ask on WhatsApp
20
90464–21002
CLAMP
 1 Ask on WhatsApp
