F130AET
Section 19: ELECTRICAL 4 (v2)
Engine sections in this catalog
SCHEDULED SERVICE PARTS
FUEL INJECTION PUMP 1
FUEL INJECTION PUMP 2
EXHAUST
FUEL 1
FUEL 2
GENERATOR
ELECTRICAL 1
ELECTRICAL 2
ELECTRICAL 3
ELECTRICAL 4
TOP COWLING
ELECTRICAL 5
ELECTRICAL 6
STARTING MOTOR
BOTTOM COWLING 1
BOTTOM COWLING 2
CONTROL
BRACKET 1
BRACKET 2
POWER TRIM & TILT ASSY 1
POWER TRIM & TILT ASSY 2
CYLINDER & CRANKCASE 1
UPPER CASING
OIL PAN
LOWER CASING & DRIVE 1
LOWER CASING & DRIVE 2
STEERING GUIDE
OPTIONAL PARTS 1
OPTIONAL PARTS 2
REPAIR KIT 1
REPAIR KIT 2
CRANKSHAFT & PISTON
CYLINDER & CRANKCASE 2
VALVE
INTAKE 1
INTAKE 2
INTAKE 3

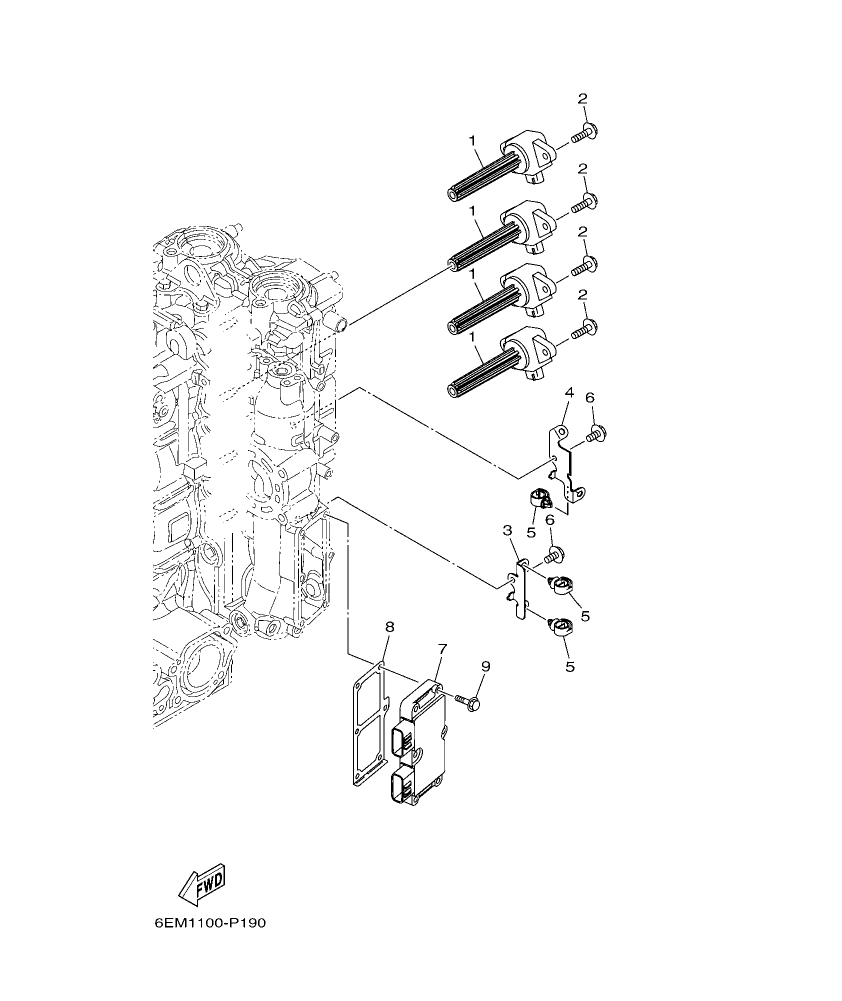

Diagram for section 19: ELECTRICAL 4.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
6P2–82310–01
IGNITION COIL ASSY
|
4 | Ask on WhatsApp |
| 2 |
95895–06020
BOLT, FLANGE
|
8 | Ask on WhatsApp |
| 3 |
6EM–82388–00
PLATE
|
1 | Ask on WhatsApp |
| 4 |
6EM–82389–00
PLATE 2
|
1 | Ask on WhatsApp |
| 5 |
90464–13249
CLAMP
|
3 | Ask on WhatsApp |
| 6 |
95895–06012
BOLT, FLANGE
|
2 | Ask on WhatsApp |
| 7 |
6EK–81960–00
RECTIFIER & REGULATOR ASSY
|
1 | Ask on WhatsApp |
| 8 |
6EK–81975–00
PLATE, RECTIFIER FITTING
|
1 | Ask on WhatsApp |
| 9 |
97595–06530
BOLT, WITH WASHER
|
6 | Ask on WhatsApp |
