F130AET – section 31 OIL PAN parts diagram

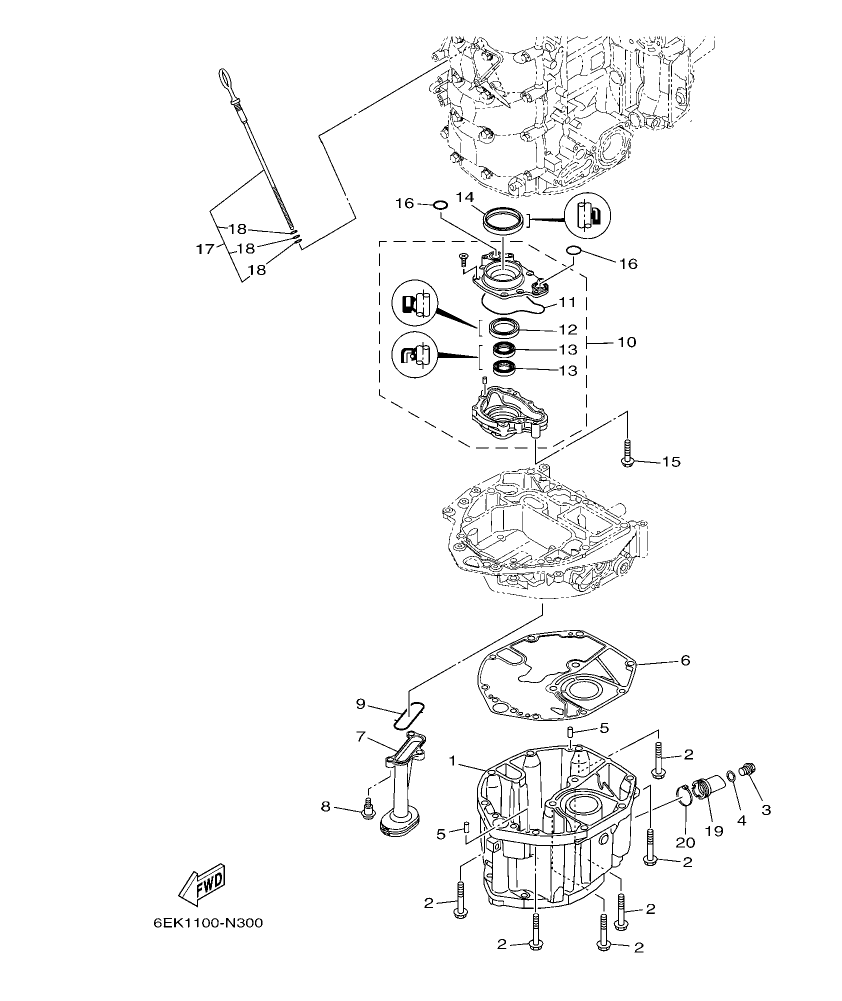

Diagram for section 31: OIL PAN.

Ref Part No. Qty Buy
1
6EK–15311–00–CA
OIL PAN
 1 Ask on WhatsApp
2
97575–10545
BOLT, WITH WASHER
 6 Ask on WhatsApp
3
90340–14M06
PLUG, STRAIGHT SCREW
 1 Ask on WhatsApp
4
90430–14M09
GASKET
 1 Ask on WhatsApp
5
93606–12019
PIN, DOWEL
 2 Ask on WhatsApp
6
6EK–15312–00
GASKET, OIL PAN
 1 Ask on WhatsApp
7
67F–13411–00
STRAINER, OIL
 1 Ask on WhatsApp
8
90109–06292
BOLT
 3 Ask on WhatsApp
9
67F–13415–00
SEAL, OIL STRAINER
 1 Ask on WhatsApp
10
6EK–13300–00
OIL PUMP ASSY
 1 Ask on WhatsApp
11
6EK–13329–00
.GASKET, PUMP COVER
 1 Ask on WhatsApp
12
6AW–13119–00
.OIL SEAL
 1 Ask on WhatsApp
13
69J–13631–00
.OIL SEAL
 2 Ask on WhatsApp
14
69J–11355–00
SEAL, CYLINDER 1
 1 Ask on WhatsApp
15
90105–06151
BOLT, FLANGE
 4 Ask on WhatsApp
16
93210–19MJ1
O-RING
 2 Ask on WhatsApp
17
6EK–15362–00
PLUG, OIL LEVEL
 1 Ask on WhatsApp
18
93210–06564
.O-RING
 3 Ask on WhatsApp
19
6EK–15316–00
DAMPER 1
 1 Ask on WhatsApp
20
90465–11M59
CLAMP
 1 Ask on WhatsApp
