F130AET – section 29 POWER TRIM & TILT ASSY 2 parts diagram

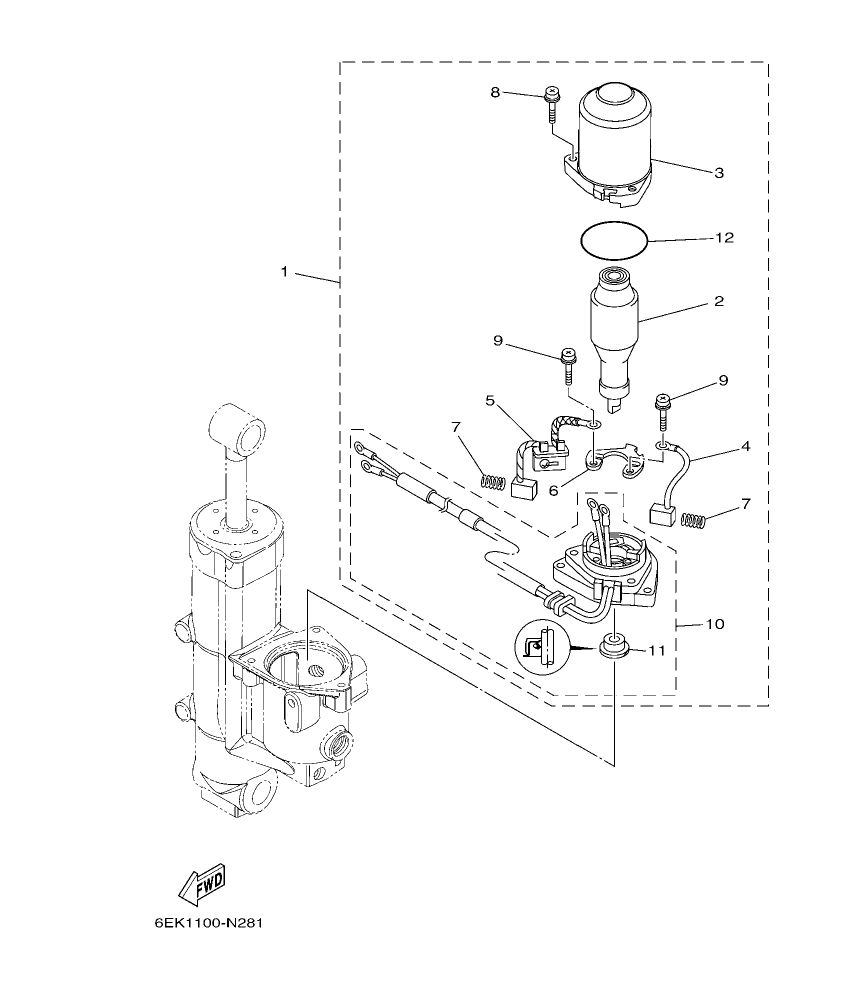

Diagram for section 29: POWER TRIM & TILT ASSY 2.

Ref Part No. Qty Buy
1
6EK–43880–00
MOTOR ASSY
 1 Ask on WhatsApp
2
63P–43805–10
.ARMATURE ASSY
 1 Ask on WhatsApp
3
6EK–43804–00
.STATOR ASSY
 1 Ask on WhatsApp
4
63P–43892–10
.BRUSH 2
 1 Ask on WhatsApp
5
63P–82181–10
.CIRCUIT BREAKER COMP.
 1 Ask on WhatsApp
6
63P–4380F–10
.PLATE, BRUSH HOLDER
 1 Ask on WhatsApp
7
62X–4386K–00
.SPRING, BRUSH
 2 Ask on WhatsApp
8
63P–43879–10
.SCREW, WITH WASHER
 3 Ask on WhatsApp
9
97602–04316
.SCREW, PAN HEAD WITH WASHER
 2 Ask on WhatsApp
10
6EK–43881–00
.FRAME, END
 1 Ask on WhatsApp
11
93102–08414
..OIL SEAL
 1 Ask on WhatsApp
12
93210–554A9
.O-RING
 1 Ask on WhatsApp
