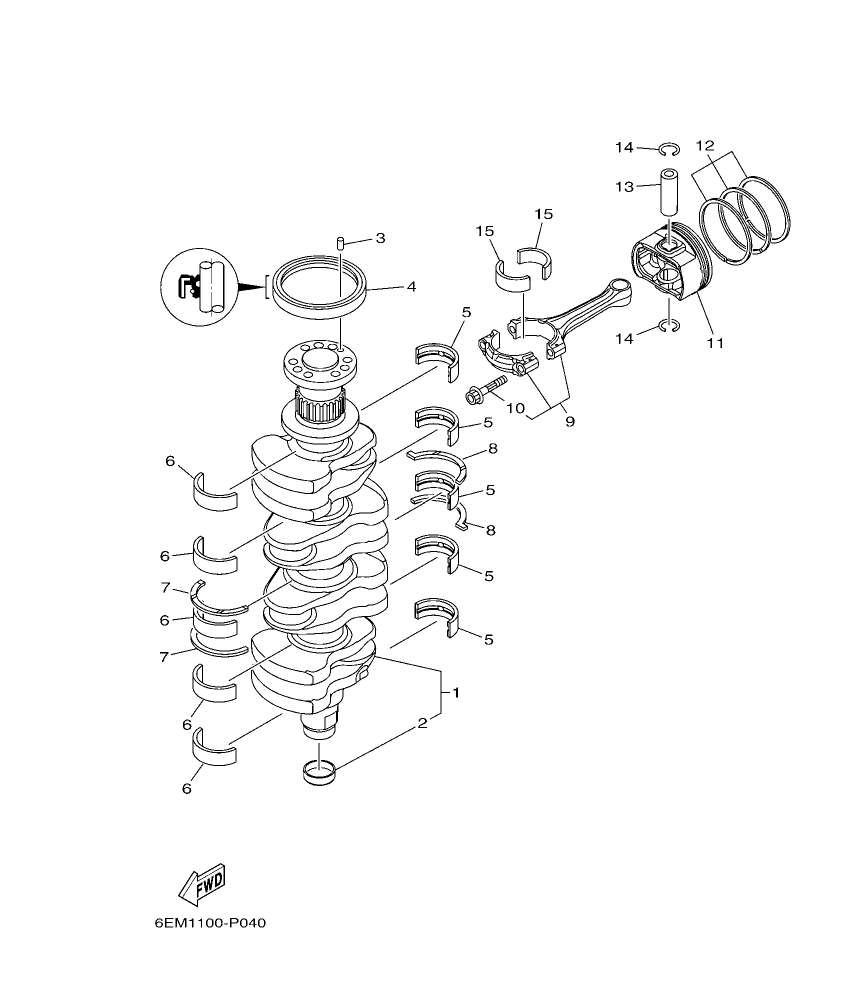

Diagram for section 4: CRANKSHAFT & PISTON.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
6EK–11410–00
CRANKSHAFT
|
1 | Ask on WhatsApp |
| 2 |
6CB–11478–00
.COLLAR
|
1 | Ask on WhatsApp |
| 3 |
93606–12019
PIN, DOWEL
|
1 | Ask on WhatsApp |
| 4 |
93102–85008
OIL SEAL
|
1 | Ask on WhatsApp |
| 5 |
6EK–11416–00
PLANE BEARING, CRANKSHAFT 1
|
5 | Ask on WhatsApp |
| 5 |
6EK–11416–10
PLANE BEARING, CRANKSHAFT 1
|
5 | Ask on WhatsApp |
| 5 |
6EK–11416–20
PLANE BEARING, CRANKSHAFT 1
|
5 | Ask on WhatsApp |
| 5 |
6EK–11416–30
PLANE BEARING, CRANKSHAFT 1
|
5 | Ask on WhatsApp |
| 5 |
6EK–11416–40
PLANE BEARING, CRANKSHAFT 1
|
5 | Ask on WhatsApp |
| 6 |
6EK–11417–00
PLANE BEARING, CRANKSHAFT 2
|
5 | Ask on WhatsApp |
| 6 |
6EK–11417–10
PLANE BEARING, CRANKSHAFT 2
|
5 | Ask on WhatsApp |
| 6 |
6EK–11417–20
PLANE BEARING, CRANKSHAFT 2
|
5 | Ask on WhatsApp |
| 6 |
6EK–11417–30
PLANE BEARING, CRANKSHAFT 2
|
5 | Ask on WhatsApp |
| 6 |
6EK–11417–40
PLANE BEARING, CRANKSHAFT 2
|
5 | Ask on WhatsApp |
| 7 |
6EK–11426–01
BEARING, THRUST 1
|
2 | Ask on WhatsApp |
| 8 |
6EK–11427–00
BEARING, THRUST 2
|
2 | Ask on WhatsApp |
| 9 |
6EK–W1165–00
CONNECTING ROD ASSY
|
4 | Ask on WhatsApp |
| 10 |
K1C–A3275–00
.BOLT, CONNECTING ROD
|
2 | Ask on WhatsApp |
| 11 |
6EK–11631–00–93
PISTON (STD)
|
4 | Ask on WhatsApp |
| 11 |
6EK–11635–00
PISTON (0.25MM O/S)
|
4 | Ask on WhatsApp |
| 12 |
6EK–11603–00
PISTON RING SET (STD)
|
4 | Ask on WhatsApp |
| 12 |
6EK–11604–00
PISTON RING SET (0.25MM O/S)
|
4 | Ask on WhatsApp |
| 13 |
6EK–11633–00
PIN, PISTON
|
4 | Ask on WhatsApp |
| 14 |
93450–19052
CIRCLIP
|
8 | Ask on WhatsApp |
| 15 |
6EK–11656–00
PLANE BEARING, CONNECTING ROD
|
8 | Ask on WhatsApp |
| 15 |
6EK–11656–10
PLANE BEARING, CONNECTING ROD
|
8 | Ask on WhatsApp |
| 15 |
6EK–11656–20
PLANE BEARING, CONNECTING ROD
|
8 | Ask on WhatsApp |
| 15 |
6EK–11656–30
PLANE BEARING, CONNECTING ROD
|
8 | Ask on WhatsApp |
| 15 |
6EK–11656–40
PLANE BEARING, CONNECTING ROD
|
8 | Ask on WhatsApp |
