F130AET

Section 11: FUEL INJECTION PUMP 2 (v2)

Engine sections in this catalog
SCHEDULED SERVICE PARTS FUEL INJECTION PUMP 1 FUEL INJECTION PUMP 2 EXHAUST FUEL 1 FUEL 2 GENERATOR ELECTRICAL 1 ELECTRICAL 2 ELECTRICAL 3 ELECTRICAL 4 TOP COWLING ELECTRICAL 5 ELECTRICAL 6 STARTING MOTOR BOTTOM COWLING 1 BOTTOM COWLING 2 CONTROL BRACKET 1 BRACKET 2 POWER TRIM & TILT ASSY 1 POWER TRIM & TILT ASSY 2 CYLINDER & CRANKCASE 1 UPPER CASING OIL PAN LOWER CASING & DRIVE 1 LOWER CASING & DRIVE 2 STEERING GUIDE OPTIONAL PARTS 1 OPTIONAL PARTS 2 REPAIR KIT 1 REPAIR KIT 2 CRANKSHAFT & PISTON CYLINDER & CRANKCASE 2 VALVE INTAKE 1 INTAKE 2 INTAKE 3

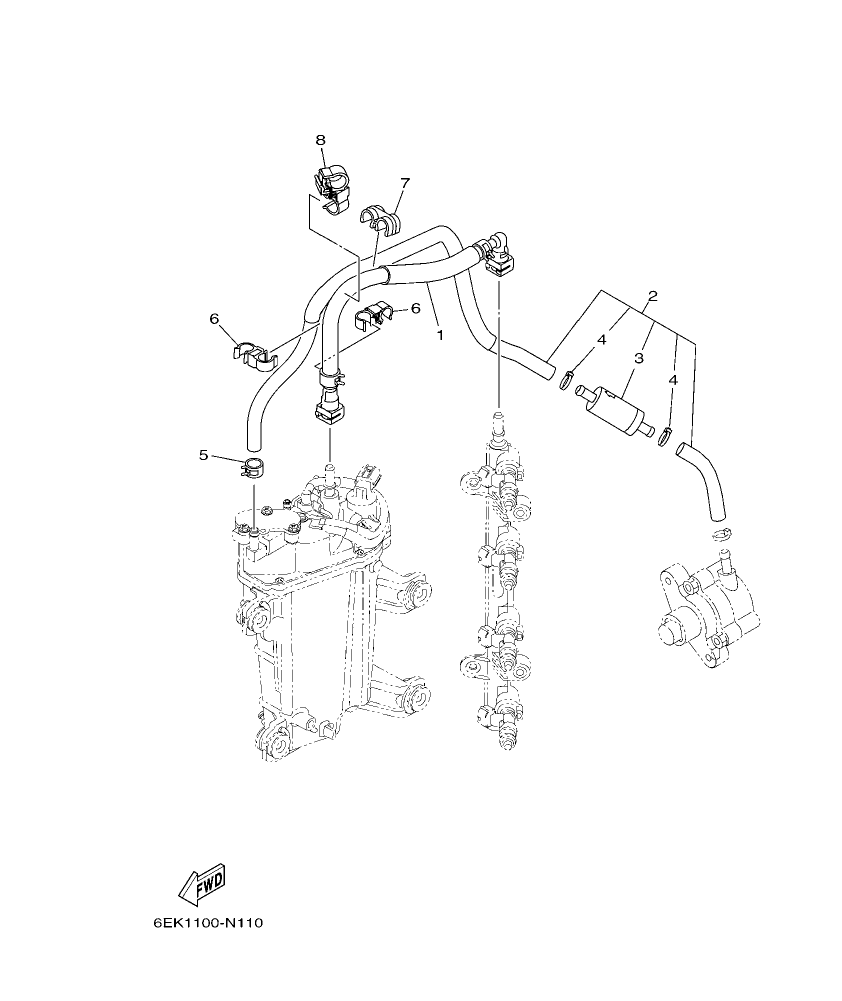

F130AET – section 11 FUEL INJECTION PUMP 2 parts diagram

Diagram for section 11: FUEL INJECTION PUMP 2.

Ref Part No. Qty Buy
1
6EK–2450B–00
FUEL HOSE ASSY
 1 Ask on WhatsApp
2
6EK–24330–00
FUEL PIPE ASSY
 1 Ask on WhatsApp
3
6C5–24251–00
.STRAINER 1
 1 Ask on WhatsApp
4
90465–11M10
.CLAMP
 2 Ask on WhatsApp
5
90467–120A7
CLIP
 1 Ask on WhatsApp
6
90464–12009
CLAMP
 2 Ask on WhatsApp
7
90464–12224
CLAMP
 1 Ask on WhatsApp
8
90464–12012
CLAMP
 1 Ask on WhatsApp
