F130AET – section 22 STARTING MOTOR parts diagram

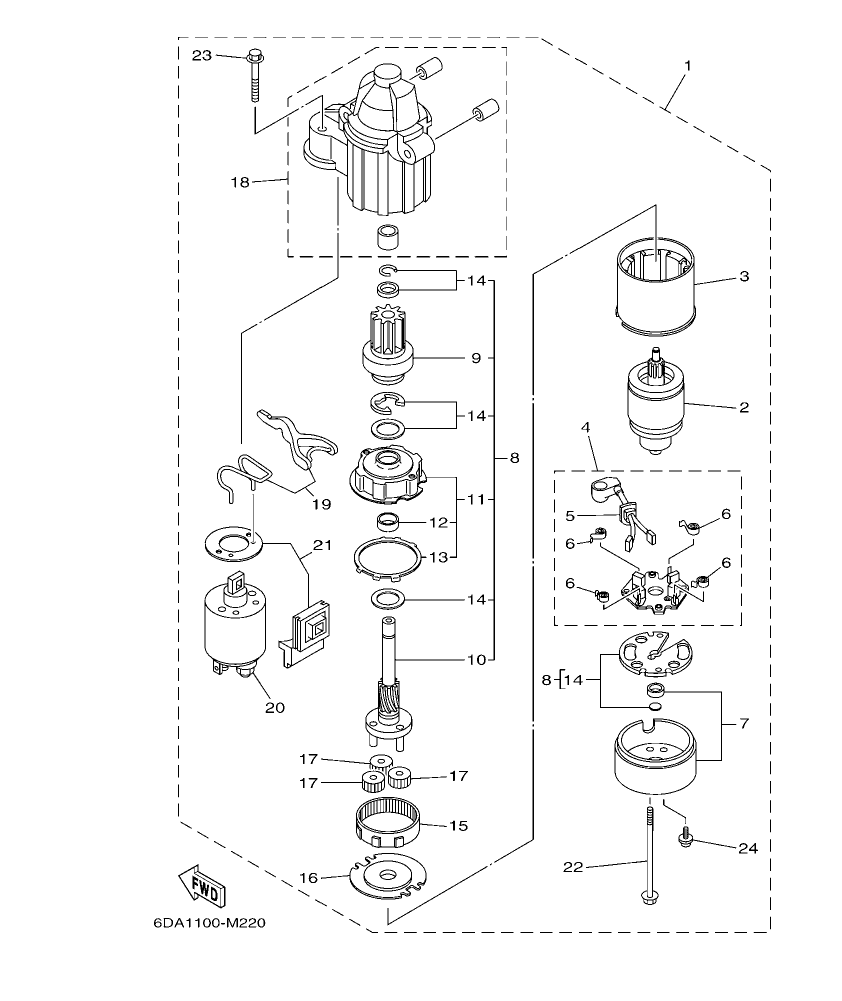

Diagram for section 22: STARTING MOTOR.

Ref Part No. Qty Buy
1
6EM–81800–00
STARTING MOTOR ASSY
 1 Ask on WhatsApp
2
67F–81850–00
.ARMATURE ASSY
 1 Ask on WhatsApp
3
67F–81810–00
.STATOR ASSY
 1 Ask on WhatsApp
4
69J–81840–00
.BRUSH HOLDER ASSY
 1 Ask on WhatsApp
5
69J–81801–00
..BRUSH SET
 1 Ask on WhatsApp
6
67F–81813–00
..SPRING, BRUSH
 4 Ask on WhatsApp
7
6CB–81820–00
.REAR BRACKET ASSY
 1 Ask on WhatsApp
8
6CB–81807–00
.GEAR ASSY, STARTING MOTOR
 1 Ask on WhatsApp
9
6CB–81832–00
..CLUTCH, OVER RUN
 1 Ask on WhatsApp
10
6CB–81836–00
..SHAFT, PINION
 1 Ask on WhatsApp
11
67F–81821–00
..BRACKET, CENTER 1
 1 Ask on WhatsApp
12
67F–81841–00
...BEARING
 1 Ask on WhatsApp
13
67F–8183R–00
...GASKET
 1 Ask on WhatsApp
14
6CB–81809–00
..WASHER KIT
 1 Ask on WhatsApp
15
67F–81891–00
.GEAR, RING
 1 Ask on WhatsApp
16
67F–81830–00
.BRACKET, CENTER 2
 1 Ask on WhatsApp
17
60V–8183T–00
.GEAR, IDLER
 3 Ask on WhatsApp
18
6CB–81842–00
.COVER
 1 Ask on WhatsApp
19
6C5–81839–00
.LEVER ASSY
 1 Ask on WhatsApp
20
6EM–81941–00
.STARTER RELAY ASSY
 1 Ask on WhatsApp
21
6C5–81869–00
.COVER, DUST
 1 Ask on WhatsApp
22
6CB–81826–00
.BOLT
 2 Ask on WhatsApp
23
69J–81828–00
.SCREW 2
 2 Ask on WhatsApp
24
67F–81846–00
.SCREW
 2 Ask on WhatsApp
