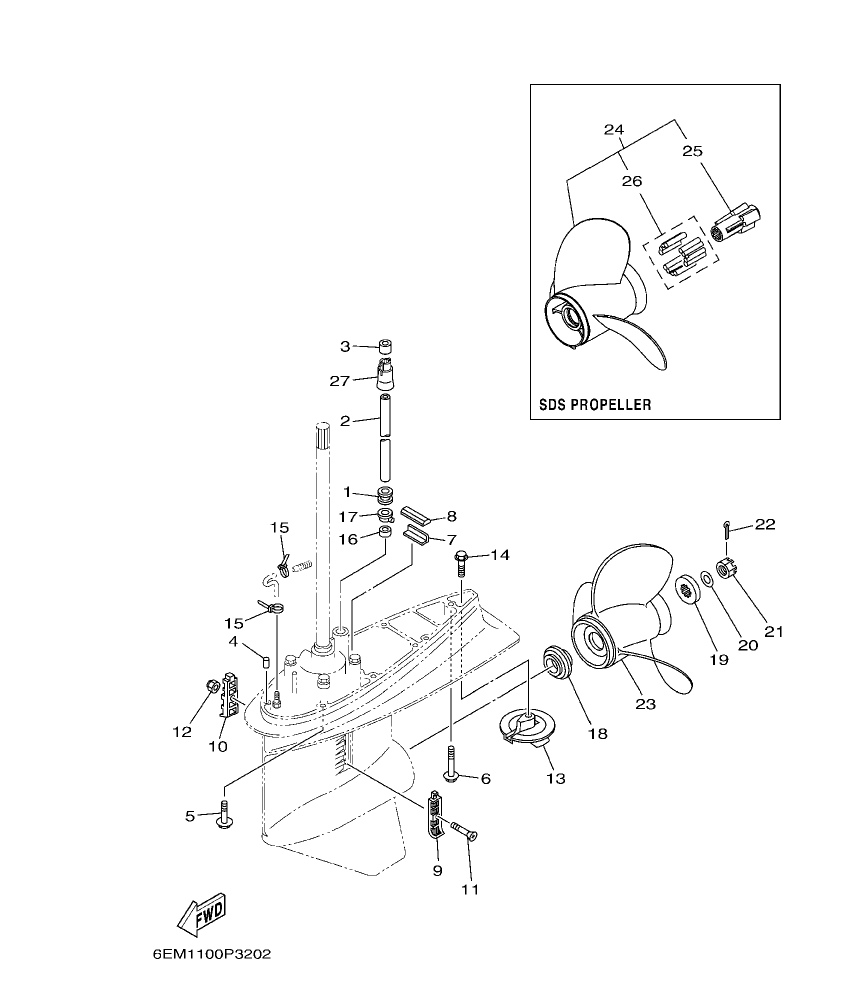

Diagram for section 33: LOWER CASING & DRIVE 2.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
6E5–44366–00
DAMPER, WATER SEAL 2
|
1 | Ask on WhatsApp |
| 2 |
90440–16001
PIPE
|
1 | Ask on WhatsApp |
| 2 |
90440–16002
PIPE
|
1 | Ask on WhatsApp |
| 3 |
6EK–44365–00
DAMPER, WATER SEAL 1
|
1 | Ask on WhatsApp |
| 4 |
93608–12M05
PIN, DOWEL
|
2 | Ask on WhatsApp |
| 5 |
97575–10545
BOLT, WITH WASHER
|
6 | Ask on WhatsApp |
| 6 |
90119–10M89
BOLT, WITH WASHER
|
1 | Ask on WhatsApp |
| 7 |
663–45376–00
GUIDE, SEAL DAMPER
|
1 | Ask on WhatsApp |
| 8 |
688–45375–00
DAMPER, SEAL
|
1 | Ask on WhatsApp |
| 9 |
688–45214–02
COVER, WATER INLET 1
|
1 | Ask on WhatsApp |
| 10 |
688–45215–02
COVER, WATER INLET 2
|
1 | Ask on WhatsApp |
| 11 |
90152–05M07
SCREW, COUNTERSUNK
|
1 | Ask on WhatsApp |
| 12 |
90185–05002
NUT, NYLON
|
1 | Ask on WhatsApp |
| 13 |
6E5–45371–01
TAB-TRIM
|
1 | Ask on WhatsApp |
| 14 |
90105–10M00
BOLT, FLANGE
|
1 | Ask on WhatsApp |
| 15 |
90465–11M10
CLAMP
|
2 | Ask on WhatsApp |
| 16 |
6E5–44365–00
DAMPER, WATER SEAL 1
|
1 | Ask on WhatsApp |
| 17 |
6E5–44312–00
COVER, WATER PUMP HOUSING
|
1 | Ask on WhatsApp |
| 18 |
63P–45987–00
SPACER 1
|
1 | Ask on WhatsApp |
| 19 |
688–45997–01
SPACER 2
|
1 | Ask on WhatsApp |
| 20 |
92990–18200
WASHER
|
1 | Ask on WhatsApp |
| 21 |
90171–18M04
NUT, CASTLE
|
1 | Ask on WhatsApp |
| 22 |
91490–40030
PIN. COTTER
|
1 | Ask on WhatsApp |
| 23 |
688–45930–02
"PROPELLER (3X13""X17""-K2)"
|
1 | Ask on WhatsApp |
| 23 |
688–45932–60
"PROPELLER (3X13-1/2""X14""-K)"
|
1 | Ask on WhatsApp |
| 23 |
688–45970–03
"PROPELLER (3X13""X19""-K)"
|
1 | Ask on WhatsApp |
| 23 |
688–45972–02
"PROPELLER (3X13""X21""-K)"
|
1 | Ask on WhatsApp |
| 23 |
688–45974–02
"PROPELLER (3X13""X23""-K)"
|
1 | Ask on WhatsApp |
| 23 |
688–45976–01
"PROPELLER (3X13""X25""-K)"
|
1 | Ask on WhatsApp |
| 23 |
688–45978–60
"PROPELLER (3X13-1/2""X16""-K)"
|
1 | Ask on WhatsApp |
| 23 |
6E5–45941–00
"PROPELLER (3X13""X19""-K)"
|
1 | Ask on WhatsApp |
| 23 |
6E5–45943–00
"PROPELLER (3X12-5/8""X21""-K)"
|
1 | Ask on WhatsApp |
| 23 |
6E5–45945–01
"PROPELLER (3X13-1/4""X17""-K)"
|
1 | Ask on WhatsApp |
| 23 |
6E5–45947–00
"PROPELLER (3X13-1/2""X15""-K)"
|
1 | Ask on WhatsApp |
| 23 |
6E5–45949–00
"PROPELLER (3X13-5/8""X13""-K)"
|
1 | Ask on WhatsApp |
| 23 |
6E5–45952–00
"PROPELLER (3X13""X23""-K)"
|
1 | Ask on WhatsApp |
| 23 |
6E5–45954–00
"PROPELLER (3X14""X11""-K)"
|
1 | Ask on WhatsApp |
| 23 |
6E5–45956–00
"PROPELLER (3X13""X25""-K)"
|
1 | Ask on WhatsApp |
| 23 |
6E5–45958–00
"PROPELLER (3X13-5/8""X14""-K)"
|
1 | Ask on WhatsApp |
| 24 |
6EK–45941–00
"PROPELLER (3X13-1/2""X9""-K)"
|
1 | Ask on WhatsApp |
| 24 |
6EK–45943–00
"PROPELLER (3X13-1/2""X10-1/2""-K"
|
1 | Ask on WhatsApp |
| 24 |
6EK–45945–00
"PROPELLER (3X13-1/2""X12""-K)"
|
1 | Ask on WhatsApp |
| 24 |
6EK–45947–00
"PROPELLER (3X13-1/2""X14""-K)"
|
1 | Ask on WhatsApp |
| 24 |
6EK–45949–00
"PROPELLER (3X13-1/2""X16""-K)"
|
1 | Ask on WhatsApp |
| 25 |
6EK–45982–00
.BUSH, PROPELLER
|
1 | Ask on WhatsApp |
| 26 |
6EK–45C82–09
.DAMPER RUBBER, PROPELLER 2
|
1 | Ask on WhatsApp |
