F130AET

Section 34: STEERING GUIDE (v2)

Engine sections in this catalog
SCHEDULED SERVICE PARTS FUEL INJECTION PUMP 1 FUEL INJECTION PUMP 2 EXHAUST FUEL 1 FUEL 2 GENERATOR ELECTRICAL 1 ELECTRICAL 2 ELECTRICAL 3 ELECTRICAL 4 TOP COWLING ELECTRICAL 5 ELECTRICAL 6 STARTING MOTOR BOTTOM COWLING 1 BOTTOM COWLING 2 CONTROL BRACKET 1 BRACKET 2 POWER TRIM & TILT ASSY 1 POWER TRIM & TILT ASSY 2 CYLINDER & CRANKCASE 1 UPPER CASING OIL PAN LOWER CASING & DRIVE 1 LOWER CASING & DRIVE 2 STEERING GUIDE OPTIONAL PARTS 1 OPTIONAL PARTS 2 REPAIR KIT 1 REPAIR KIT 2 CRANKSHAFT & PISTON CYLINDER & CRANKCASE 2 VALVE INTAKE 1 INTAKE 2 INTAKE 3

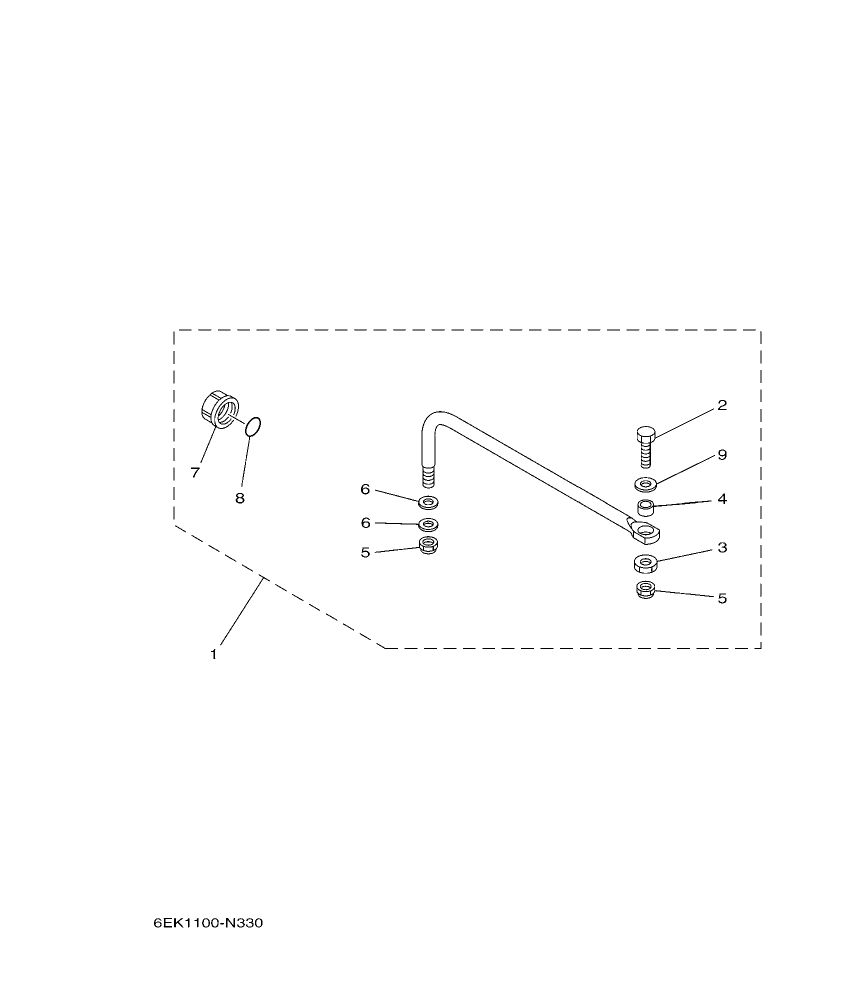

F130AET – section 34 STEERING GUIDE parts diagram

Diagram for section 34: STEERING GUIDE.

Ref Part No. Qty Buy
1
6EK–61350–00
STEERING GUIDE ATTACHMENT KIT
 1 Ask on WhatsApp
2
6E5–61355–00
.BOLT
 1 Ask on WhatsApp
3
90170–09M03
.NUT
 1 Ask on WhatsApp
4
90387–10M42
.COLLAR
 1 Ask on WhatsApp
5
90185–09M01
.NUT, SELF-LOCKING
 2 Ask on WhatsApp
6
90201–10M20
.WASHER, PLATE
 2 Ask on WhatsApp
7
6E5–43145–01
.CAP, CLAMP BRACKET
 1 Ask on WhatsApp
8
93210–16275
.O-RING
 1 Ask on WhatsApp
9
90201–10M63
.WASHER, PLATE
 1 Ask on WhatsApp
