F130AET

Section 24: BOTTOM COWLING 2 (v2)

Engine sections in this catalog
SCHEDULED SERVICE PARTS FUEL INJECTION PUMP 1 FUEL INJECTION PUMP 2 EXHAUST FUEL 1 FUEL 2 GENERATOR ELECTRICAL 1 ELECTRICAL 2 ELECTRICAL 3 ELECTRICAL 4 TOP COWLING ELECTRICAL 5 ELECTRICAL 6 STARTING MOTOR BOTTOM COWLING 1 BOTTOM COWLING 2 CONTROL BRACKET 1 BRACKET 2 POWER TRIM & TILT ASSY 1 POWER TRIM & TILT ASSY 2 CYLINDER & CRANKCASE 1 UPPER CASING OIL PAN LOWER CASING & DRIVE 1 LOWER CASING & DRIVE 2 STEERING GUIDE OPTIONAL PARTS 1 OPTIONAL PARTS 2 REPAIR KIT 1 REPAIR KIT 2 CRANKSHAFT & PISTON CYLINDER & CRANKCASE 2 VALVE INTAKE 1 INTAKE 2 INTAKE 3

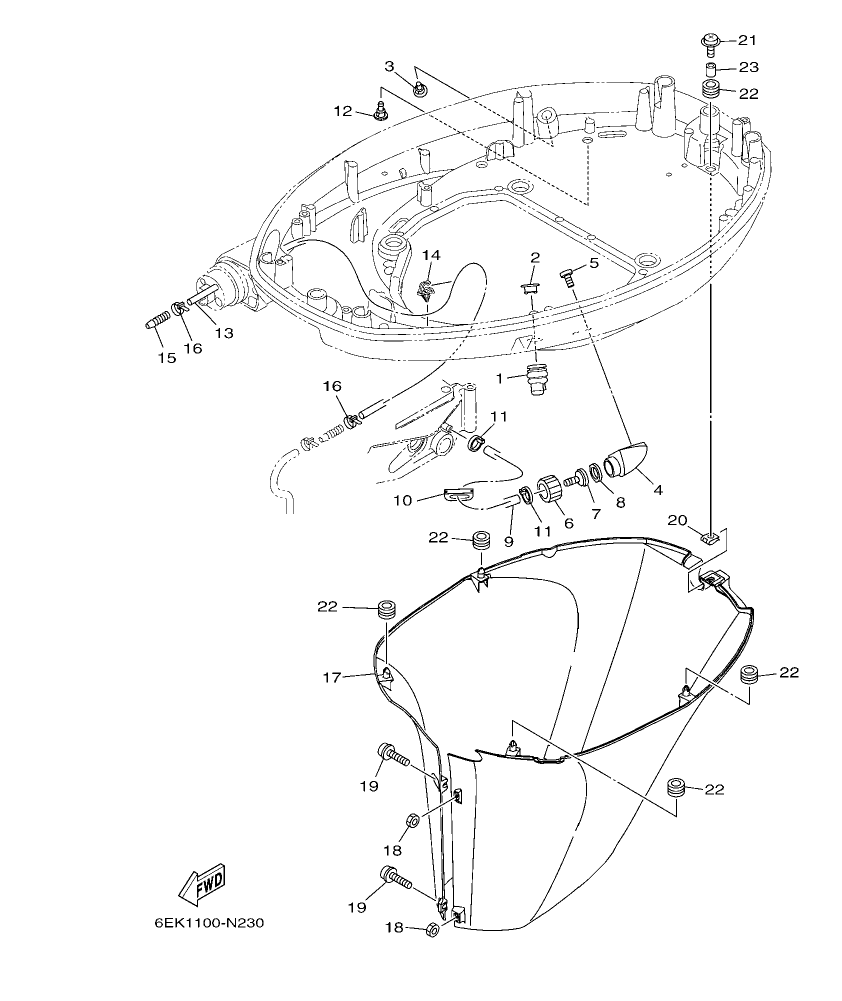

F130AET – section 24 BOTTOM COWLING 2 parts diagram

Diagram for section 24: BOTTOM COWLING 2.

Ref Part No. Qty Buy
1
6H1–42726–30
GROMMET
 1 Ask on WhatsApp
2
6BG–42384–00
SEAL, CAP
 1 Ask on WhatsApp
3
6P2–44391–00
NIPPLE, HOSE
 1 Ask on WhatsApp
4
6AW–12572–00
ADAPTER
 1 Ask on WhatsApp
5
97780–60520
SCREW, TAPPING
 2 Ask on WhatsApp
6
6R3–12581–00
JOINT, HOSE 1
 1 Ask on WhatsApp
7
6R3–12582–00
JOINT, HOSE 2
 1 Ask on WhatsApp
8
6R3–12583–00
GASKET, HOSE JOINT
 1 Ask on WhatsApp
9
6EK–42541–00
PIPE 1
 1 Ask on WhatsApp
10
6AH–42726–00
GROMMET
 1 Ask on WhatsApp
11
90465–11M10
CLAMP
 2 Ask on WhatsApp
12
6P2–44391–00
NIPPLE, HOSE
 1 Ask on WhatsApp
13
90445–073F9
HOSE (L1200)
 1 Ask on WhatsApp
14
90464–07259
CLAMP
 1 Ask on WhatsApp
15
6E5–83558–00
END, NIPPLE
 1 Ask on WhatsApp
16
90465–11M10
CLAMP
 2 Ask on WhatsApp
16
90465–11M10
CLAMP
 1 Ask on WhatsApp
17
6EK–42741–00–8D
APRON
 1 Ask on WhatsApp
18
95380–06600
NUT, HEXAGON
 2 Ask on WhatsApp
19
90159–06M28
SCREW, WITH WASHER
 2 Ask on WhatsApp
20
90183–061A8
NUT, SPRING
 1 Ask on WhatsApp
21
90159–06053
SCREW, WITH WASHER
 1 Ask on WhatsApp
22
90480–13M24
GROMMET
 5 Ask on WhatsApp
23
90387–06M43
COLLAR
 1 Ask on WhatsApp
