F130AET
Section 9: INTAKE 3 (v2)
Engine sections in this catalog
SCHEDULED SERVICE PARTS
FUEL INJECTION PUMP 1
FUEL INJECTION PUMP 2
EXHAUST
FUEL 1
FUEL 2
GENERATOR
ELECTRICAL 1
ELECTRICAL 2
ELECTRICAL 3
ELECTRICAL 4
TOP COWLING
ELECTRICAL 5
ELECTRICAL 6
STARTING MOTOR
BOTTOM COWLING 1
BOTTOM COWLING 2
CONTROL
BRACKET 1
BRACKET 2
POWER TRIM & TILT ASSY 1
POWER TRIM & TILT ASSY 2
CYLINDER & CRANKCASE 1
UPPER CASING
OIL PAN
LOWER CASING & DRIVE 1
LOWER CASING & DRIVE 2
STEERING GUIDE
OPTIONAL PARTS 1
OPTIONAL PARTS 2
REPAIR KIT 1
REPAIR KIT 2
CRANKSHAFT & PISTON
CYLINDER & CRANKCASE 2
VALVE
INTAKE 1
INTAKE 2
INTAKE 3

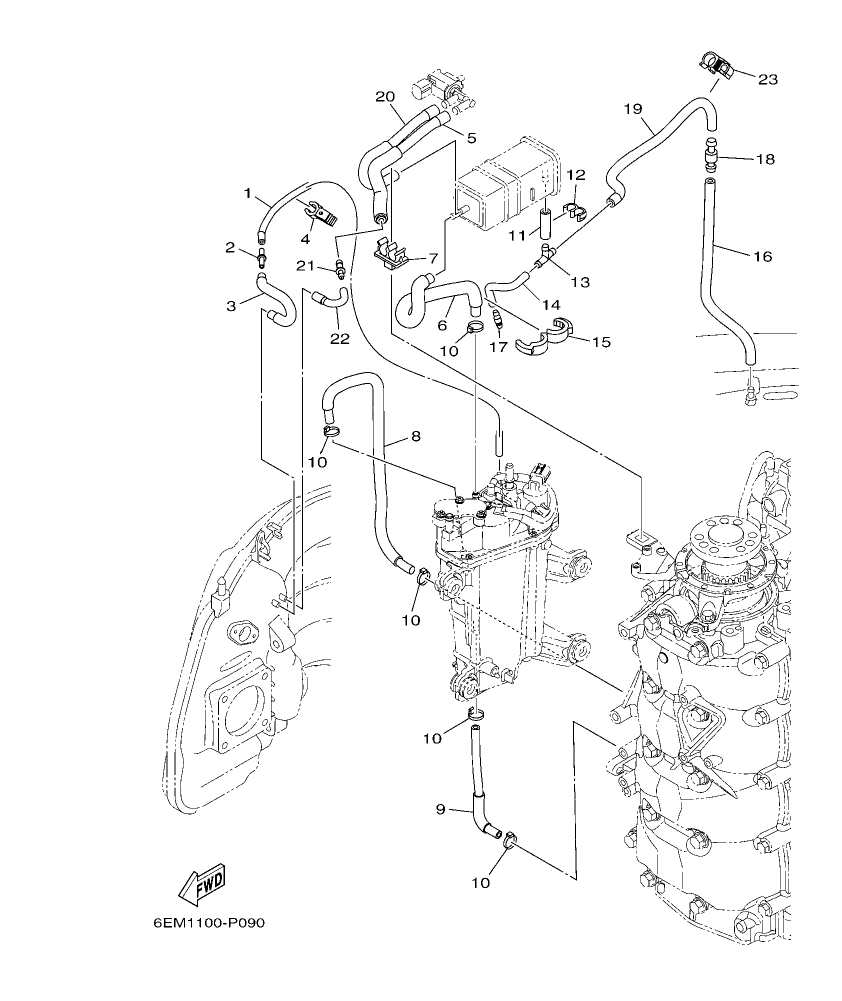

Diagram for section 9: INTAKE 3.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
6EK–13532–00
HOSE, VACUUM SENSING 3
|
1 | Ask on WhatsApp |
| 2 |
5PS–14568–00
JOINT
|
1 | Ask on WhatsApp |
| 3 |
6EM–1475H–00
PIPE 5
|
1 | Ask on WhatsApp |
| 4 |
90464–12006
CLAMP
|
1 | Ask on WhatsApp |
| 5 |
6EM–2416A–00
HOSE
|
1 | Ask on WhatsApp |
| 6 |
6EM–1475A–00
PIPE 1
|
1 | Ask on WhatsApp |
| 7 |
90464–11012
CLAMP
|
1 | Ask on WhatsApp |
| 8 |
6EK–12576–00
HOSE 1
|
1 | Ask on WhatsApp |
| 9 |
6EK–12577–00
HOSE 2
|
1 | Ask on WhatsApp |
| 10 |
90465–11M10
CLAMP
|
5 | Ask on WhatsApp |
| 11 |
6AW–13545–10
HOSE 1
|
1 | Ask on WhatsApp |
| 12 |
90464–10M57
CLAMP
|
1 | Ask on WhatsApp |
| 13 |
688–24378–00
PIPE, JOINT 3
|
1 | Ask on WhatsApp |
| 14 |
6EK–13546–00
HOSE 2
|
1 | Ask on WhatsApp |
| 15 |
90464–16001
CLAMP
|
1 | Ask on WhatsApp |
| 16 |
6EK–13547–00
HOSE 3
|
1 | Ask on WhatsApp |
| 17 |
6E5–21744–00
BREATHER
|
1 | Ask on WhatsApp |
| 18 |
63D–21744–00
BREATHER
|
1 | Ask on WhatsApp |
| 19 |
6EK–13548–00
HOSE, AIR 4
|
1 | Ask on WhatsApp |
| 20 |
6EK–1475F–00
PIPE 3
|
1 | Ask on WhatsApp |
| 21 |
6EK–14989–00
ORIFICE, AIR VENT
|
1 | Ask on WhatsApp |
| 22 |
6EM–1475G–00
PIPE 4
|
1 | Ask on WhatsApp |
| 23 |
90464–12010
CLAMP
|
1 | Ask on WhatsApp |
