F130AET
Section 17: ELECTRICAL 2 (v2)
Engine sections in this catalog
SCHEDULED SERVICE PARTS
FUEL INJECTION PUMP 1
FUEL INJECTION PUMP 2
EXHAUST
FUEL 1
FUEL 2
GENERATOR
ELECTRICAL 1
ELECTRICAL 2
ELECTRICAL 3
ELECTRICAL 4
TOP COWLING
ELECTRICAL 5
ELECTRICAL 6
STARTING MOTOR
BOTTOM COWLING 1
BOTTOM COWLING 2
CONTROL
BRACKET 1
BRACKET 2
POWER TRIM & TILT ASSY 1
POWER TRIM & TILT ASSY 2
CYLINDER & CRANKCASE 1
UPPER CASING
OIL PAN
LOWER CASING & DRIVE 1
LOWER CASING & DRIVE 2
STEERING GUIDE
OPTIONAL PARTS 1
OPTIONAL PARTS 2
REPAIR KIT 1
REPAIR KIT 2
CRANKSHAFT & PISTON
CYLINDER & CRANKCASE 2
VALVE
INTAKE 1
INTAKE 2
INTAKE 3

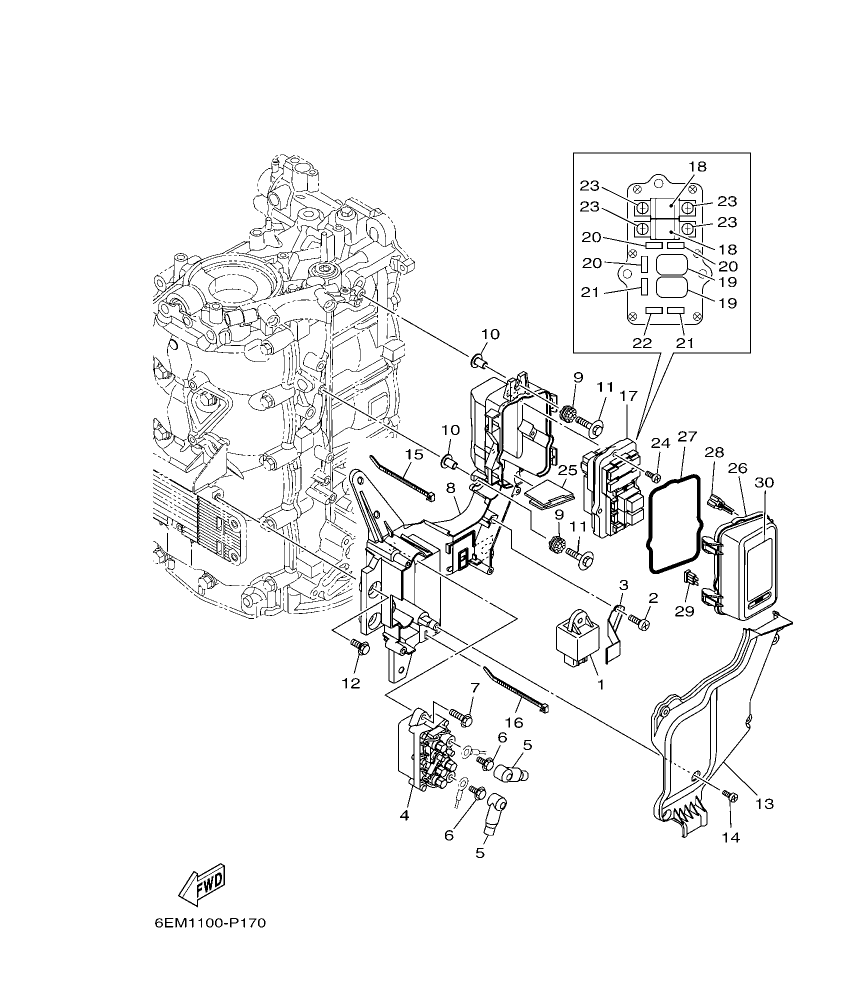

Diagram for section 17: ELECTRICAL 2.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
68V–81950–00
RELAY ASSY
|
1 | Ask on WhatsApp |
| 2 |
97780–60620
SCREW, TAPPING
|
1 | Ask on WhatsApp |
| 3 |
6EM–81953–00
STAY, RELAY
|
1 | Ask on WhatsApp |
| 4 |
63P–81950–00
RELAY ASSY
|
1 | Ask on WhatsApp |
| 5 |
682–82119–01
COVER, LEAD WIRE
|
2 | Ask on WhatsApp |
| 6 |
97595–06610
BOLT, WITH WASHER
|
2 | Ask on WhatsApp |
| 7 |
97595–06520
BOLT, WITH WASHER
|
2 | Ask on WhatsApp |
| 8 |
6EK–81952–00
HOLDER, RELAY
|
1 | Ask on WhatsApp |
| 9 |
64J–85516–00
SPACER
|
4 | Ask on WhatsApp |
| 10 |
69M–42758–01
COLLAR
|
4 | Ask on WhatsApp |
| 11 |
90119–06M56
BOLT, WITH WASHER
|
4 | Ask on WhatsApp |
| 12 |
95895–06016
BOLT, FLANGE
|
2 | Ask on WhatsApp |
| 13 |
6EM–81942–00
COVER
|
1 | Ask on WhatsApp |
| 14 |
90169–05M00
SCREW, TRUSS HEAD TAPPING
|
4 | Ask on WhatsApp |
| 15 |
90465–13M18
CLAMP
|
2 | Ask on WhatsApp |
| 16 |
90465–14M66
CLAMP
|
1 | Ask on WhatsApp |
| 17 |
6EM–82170–00
FUSE BOX ASSY
|
1 | Ask on WhatsApp |
| 18 |
63P–82151–00
.FUSE (50A)
|
2 | Ask on WhatsApp |
| 19 |
6AW–8195A–00
.RELAY ASSY
|
2 | Ask on WhatsApp |
| 20 |
67F–82151–00
.FUSE (20A)
|
3 | Ask on WhatsApp |
| 21 |
67F–82151–10
.FUSE (30A)
|
2 | Ask on WhatsApp |
| 22 |
67F–82151–40
.FUSE (10A)
|
1 | Ask on WhatsApp |
| 23 |
68F–82846–00
.SCREW, PAN HEAD (M5)
|
4 | Ask on WhatsApp |
| 24 |
97780–50620
SCREW, TAPPING
|
3 | Ask on WhatsApp |
| 25 |
6EM–81336–00
GROMMET
|
1 | Ask on WhatsApp |
| 26 |
6EM–85544–00
CASE
|
1 | Ask on WhatsApp |
| 27 |
68F–82176–00
DAMPER
|
1 | Ask on WhatsApp |
| 28 |
67F–2812A–00
PULLER, FUSE
|
1 | Ask on WhatsApp |
| 29 |
67F–82151–40
FUSE (10A)
|
1 | Ask on WhatsApp |
| 30 |
6EM–81919–00
GRAPHIC, REGULATOR
|
1 | Ask on WhatsApp |
