F130AET

Section 38: REPAIR KIT 2 (v2)

Engine sections in this catalog
SCHEDULED SERVICE PARTS FUEL INJECTION PUMP 1 FUEL INJECTION PUMP 2 EXHAUST FUEL 1 FUEL 2 GENERATOR ELECTRICAL 1 ELECTRICAL 2 ELECTRICAL 3 ELECTRICAL 4 TOP COWLING ELECTRICAL 5 ELECTRICAL 6 STARTING MOTOR BOTTOM COWLING 1 BOTTOM COWLING 2 CONTROL BRACKET 1 BRACKET 2 POWER TRIM & TILT ASSY 1 POWER TRIM & TILT ASSY 2 CYLINDER & CRANKCASE 1 UPPER CASING OIL PAN LOWER CASING & DRIVE 1 LOWER CASING & DRIVE 2 STEERING GUIDE OPTIONAL PARTS 1 OPTIONAL PARTS 2 REPAIR KIT 1 REPAIR KIT 2 CRANKSHAFT & PISTON CYLINDER & CRANKCASE 2 VALVE INTAKE 1 INTAKE 2 INTAKE 3

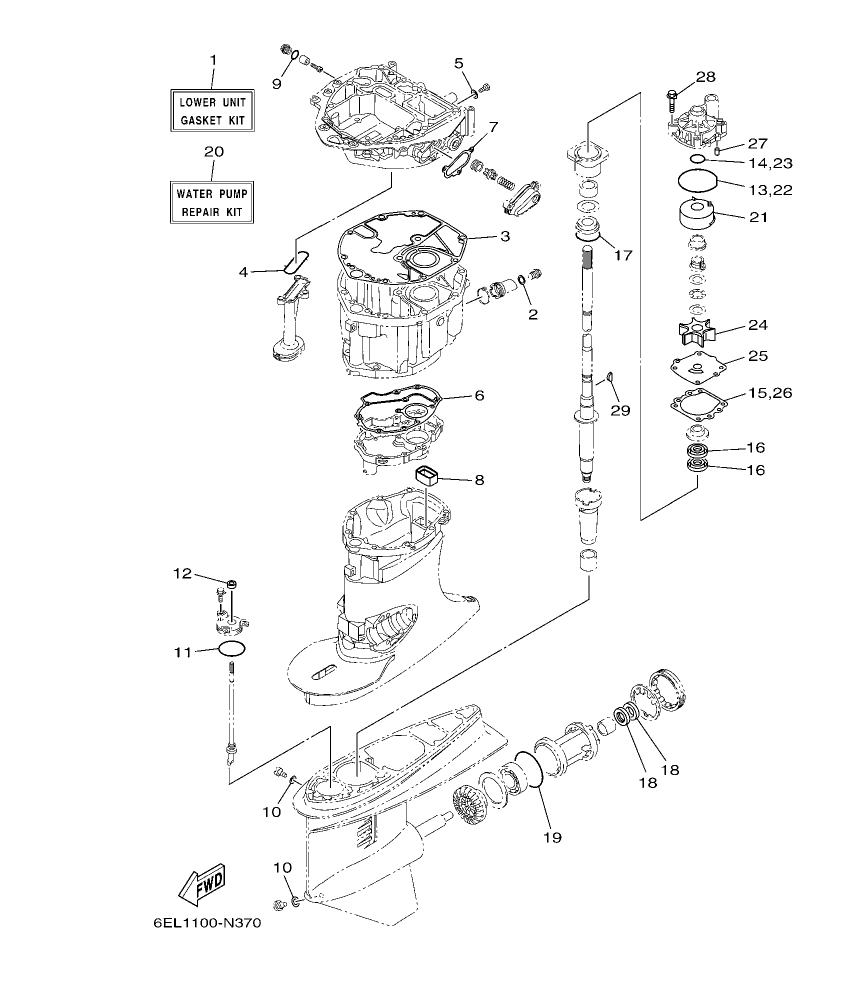

F130AET – section 38 REPAIR KIT 2 parts diagram

Diagram for section 38: REPAIR KIT 2.

Ref Part No. Qty Buy
1
6EK–W0001–20
LOWER UNIT GASKET KIT
 1 Ask on WhatsApp
2
90430–14M09
.GASKET
 1 Ask on WhatsApp
3
6EK–15312–00
.GASKET, OIL PAN
 1 Ask on WhatsApp
4
67F–13415–00
.SEAL, OIL STRAINER
 1 Ask on WhatsApp
5
90430–08143
.GASKET
 1 Ask on WhatsApp
6
6EK–41134–00
.GASKET, EXHAUST MANIFOLD
 1 Ask on WhatsApp
7
6EK–12435–A0
.GASKET
 1 Ask on WhatsApp
8
67F–45127–00
.SEAL
 1 Ask on WhatsApp
9
93210–13M63
.O-RING
 1 Ask on WhatsApp
10
90430–08020
.GASKET
 2 Ask on WhatsApp
11
93210–58144
.O-RING
 1 Ask on WhatsApp
12
93106–09014
.OIL SEAL
 1 Ask on WhatsApp
13
93210–86M38
.O-RING
 1 Ask on WhatsApp
14
93210–37160
.O-RING
 1 Ask on WhatsApp
15
6E5–44315–A0
.GASKET, WATER PUMP
 1 Ask on WhatsApp
16
93101–28M16
.OIL SEAL
 2 Ask on WhatsApp
17
93210–55M14
.O-RING
 1 Ask on WhatsApp
18
93101–30M17
.OIL SEAL
 2 Ask on WhatsApp
19
93210–86M39
.O-RING
 1 Ask on WhatsApp
20
68V–W0078–00
WATER PUMP REPAIR KIT
 1 Ask on WhatsApp
21
61A–44322–02
.INSERT, CARTRIDGE
 1 Ask on WhatsApp
22
93210–86M38
.O-RING
 1 Ask on WhatsApp
23
93210–37160
.O-RING
 1 Ask on WhatsApp
24
6E5–44352–01
.IMPELLER
 1 Ask on WhatsApp
25
6EK–44323–00
.OUTER PLATE, CARTRIDGE
 1 Ask on WhatsApp
26
6E5–44315–A0
.GASKET, WATER PUMP
 1 Ask on WhatsApp
27
93606–12019
.PIN, DOWEL
 2 Ask on WhatsApp
28
90119–08M14
.BOLT, WITH WASHER
 4 Ask on WhatsApp
29
90280–04M05
.KEY, WOODRUFF
 1 Ask on WhatsApp
