F130AET

Section 28: POWER TRIM & TILT ASSY 1 (v2)

Engine sections in this catalog
SCHEDULED SERVICE PARTS FUEL INJECTION PUMP 1 FUEL INJECTION PUMP 2 EXHAUST FUEL 1 FUEL 2 GENERATOR ELECTRICAL 1 ELECTRICAL 2 ELECTRICAL 3 ELECTRICAL 4 TOP COWLING ELECTRICAL 5 ELECTRICAL 6 STARTING MOTOR BOTTOM COWLING 1 BOTTOM COWLING 2 CONTROL BRACKET 1 BRACKET 2 POWER TRIM & TILT ASSY 1 POWER TRIM & TILT ASSY 2 CYLINDER & CRANKCASE 1 UPPER CASING OIL PAN LOWER CASING & DRIVE 1 LOWER CASING & DRIVE 2 STEERING GUIDE OPTIONAL PARTS 1 OPTIONAL PARTS 2 REPAIR KIT 1 REPAIR KIT 2 CRANKSHAFT & PISTON CYLINDER & CRANKCASE 2 VALVE INTAKE 1 INTAKE 2 INTAKE 3

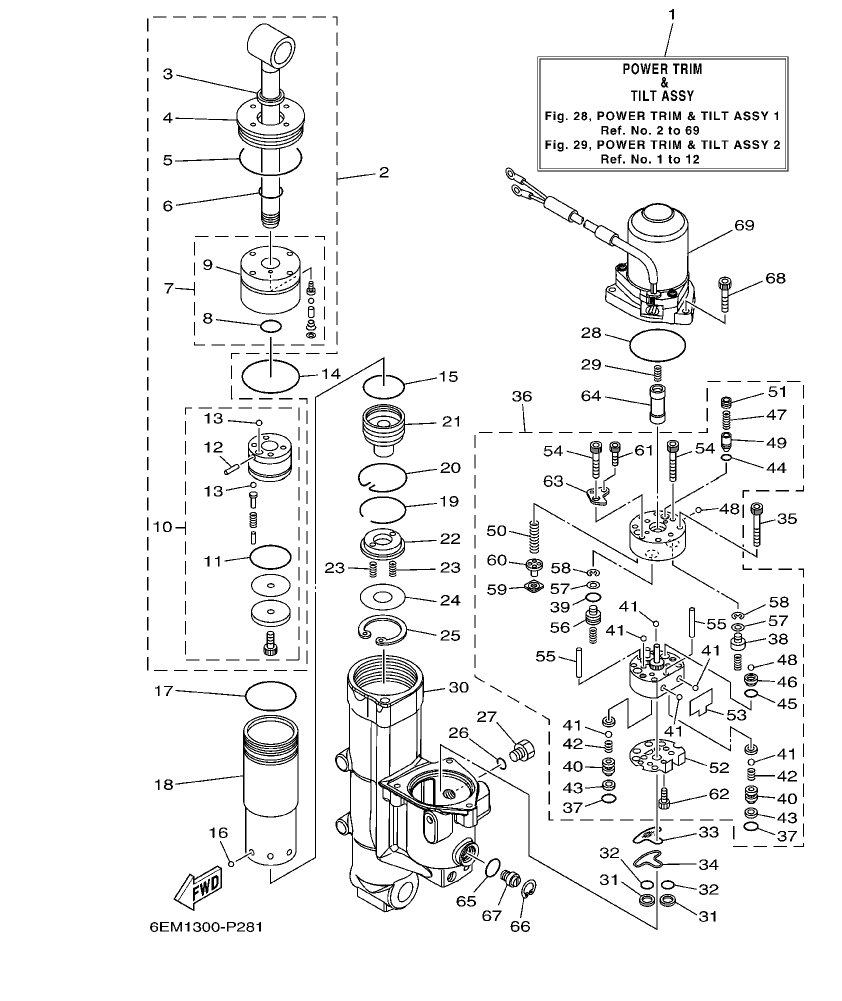

F130AET – section 28 POWER TRIM & TILT ASSY 1 parts diagram

Diagram for section 28: POWER TRIM & TILT ASSY 1.

Ref Part No. Qty Buy
1
6EK–43800–00
POWER TRIM & TILT ASSY
 1 Ask on WhatsApp
2
6EK–43810–00
TILT PISTON SUB ASSY
 1 Ask on WhatsApp
3
6H1–43812–00
.SEAL, DUST
 1 Ask on WhatsApp
4
6EK–43821–00
.SCREW, TRIM CYLINDER END
 1 Ask on WhatsApp
5
6EK–43861–00
.O-RING
 1 Ask on WhatsApp
6
6D8–43861–00
.O-RING
 1 Ask on WhatsApp
7
6EK–4380R–00
.CYLINDER END SUB ASSY
 1 Ask on WhatsApp
8
6D8–43861–00
..O-RING
 1 Ask on WhatsApp
9
6EK–43811–00
..SCREW, CYLINDER END
 1 Ask on WhatsApp
10
6EK–4380P–00
.PISTON SUB ASSY
 1 Ask on WhatsApp
11
6H1–43862–00
..O-RING
 1 Ask on WhatsApp
12
91609–16012
..PIN, SPRING
 1 Ask on WhatsApp
13
93505–32038
..BALL
 5 Ask on WhatsApp
14
67F–43865–00
O-RING
 1 Ask on WhatsApp
15
6H1–43862–00
O-RING
 1 Ask on WhatsApp
16
93503–16003
BALL
 6 Ask on WhatsApp
17
7BB–43861–00
O-RING
 1 Ask on WhatsApp
18
6EK–22471–00
CYLINDER, SHOCK ABSORBER
 1 Ask on WhatsApp
19
93450–47164
CIRCLIP
 1 Ask on WhatsApp
20
6EK–43875–00
RING, SNAP
 1 Ask on WhatsApp
21
6EK–4381B–00
FREE PISTON SUB ASSY
 1 Ask on WhatsApp
22
6EK–43899–00
PLATE STOPPER
 1 Ask on WhatsApp
23
62X–4384H–00
SPRING
 2 Ask on WhatsApp
24
6EK–22434–00
PLATE, VALVE 1
 1 Ask on WhatsApp
25
99009–47500
CIRCLIP
 1 Ask on WhatsApp
26
93210–09165
O-RING
 1 Ask on WhatsApp
27
6EK–43829–00
PLUG, RESERVOIR
 1 Ask on WhatsApp
28
93210–68N50
O-RING
 1 Ask on WhatsApp
29
62X–4384H–00
SPRING
 1 Ask on WhatsApp
30
6EK–4380K–00
CYLINDER, TILT SUB ASSY
 1 Ask on WhatsApp
31
6C6–43817–00
FILTER 2
 2 Ask on WhatsApp
32
69J–4389J–00
O-RING
 2 Ask on WhatsApp
33
6C5–43816–00
FILTER 1
 1 Ask on WhatsApp
34
6C5–4380G–00
PLATE
 1 Ask on WhatsApp
35
91318–05045
BOLT
 4 Ask on WhatsApp
36
6EK–43830–00
GEAR PUMP ASSY
 1 Ask on WhatsApp
37
69J–4389J–00
.O-RING
 2 Ask on WhatsApp
38
6D8–4384M–00
.PISTON, SHUTTLE 2
 1 Ask on WhatsApp
39
6H1–43883–00
.O-RING
 1 Ask on WhatsApp
40
6EK–4382E–00
.ADAPTOR 2
 2 Ask on WhatsApp
41
93505–32038
.BALL
 6 Ask on WhatsApp
42
6C6–43853–00
.SPRING, MAIN VALVE
 2 Ask on WhatsApp
43
6C6–4387G–00
.WASHER
 2 Ask on WhatsApp
44
93210–04N51
.O-RING
 1 Ask on WhatsApp
45
93210–064A5
.O-RING
 1 Ask on WhatsApp
46
6D8–43851–00
.SEAT, RELIEF VALVE
 1 Ask on WhatsApp
47
6C5–43855–10
.SPRING, UP RELIEF
 1 Ask on WhatsApp
48
93501–08001
.BALL
 2 Ask on WhatsApp
49
6D8–43844–00
.PIN, VALVE SUPPORT
 1 Ask on WhatsApp
50
6EK–43856–00
.SPRING, DOWN RELIEF
 1 Ask on WhatsApp
51
6D8–43843–00
.SCREW, VALVE LOCK
 1 Ask on WhatsApp
52
6C5–43895–00
.SEAT, RELIEF VALVE
 1 Ask on WhatsApp
53
6C5–43854–00
.SPRING, MANUAL RELEASE
 1 Ask on WhatsApp
54
91318–05030
.BOLT
 2 Ask on WhatsApp
55
93604–26256
.PIN, DOWEL
 2 Ask on WhatsApp
56
6D8–43841–00
.PISTON, SHUTTLE
 1 Ask on WhatsApp
57
69A–4384F–00
.SEAL, MAIN VALVE
 2 Ask on WhatsApp
58
99002–03600
.CLIP
 2 Ask on WhatsApp
59
6H1–4384G–11
.SEAL, RELIEF VALVE
 1 Ask on WhatsApp
60
6H1–43844–10
.PIN, VALVE SUPPORT
 1 Ask on WhatsApp
61
91318–03025
.BOLT
 2 Ask on WhatsApp
62
91318–03005
.BOLT
 1 Ask on WhatsApp
63
6D8–4382L–00
.CAP, RELIEF VALVE
 1 Ask on WhatsApp
64
6EK–43831–00
CONNECTOR, SHAFT
 1 Ask on WhatsApp
65
6D8–43863–00
O-RING
 1 Ask on WhatsApp
66
6H1–43875–00
RING, SNAP
 1 Ask on WhatsApp
67
6EK–43845–00
SCREW, MANUAL RELEASE
 1 Ask on WhatsApp
68
91380–06025
BOLT
 3 Ask on WhatsApp
69
6EK–43880–00
MOTOR ASSY
 1 Ask on WhatsApp
