F130AET

Section 35: OPTIONAL PARTS 1 (v2)

Engine sections in this catalog
SCHEDULED SERVICE PARTS FUEL INJECTION PUMP 1 FUEL INJECTION PUMP 2 EXHAUST FUEL 1 FUEL 2 GENERATOR ELECTRICAL 1 ELECTRICAL 2 ELECTRICAL 3 ELECTRICAL 4 TOP COWLING ELECTRICAL 5 ELECTRICAL 6 STARTING MOTOR BOTTOM COWLING 1 BOTTOM COWLING 2 CONTROL BRACKET 1 BRACKET 2 POWER TRIM & TILT ASSY 1 POWER TRIM & TILT ASSY 2 CYLINDER & CRANKCASE 1 UPPER CASING OIL PAN LOWER CASING & DRIVE 1 LOWER CASING & DRIVE 2 STEERING GUIDE OPTIONAL PARTS 1 OPTIONAL PARTS 2 REPAIR KIT 1 REPAIR KIT 2 CRANKSHAFT & PISTON CYLINDER & CRANKCASE 2 VALVE INTAKE 1 INTAKE 2 INTAKE 3

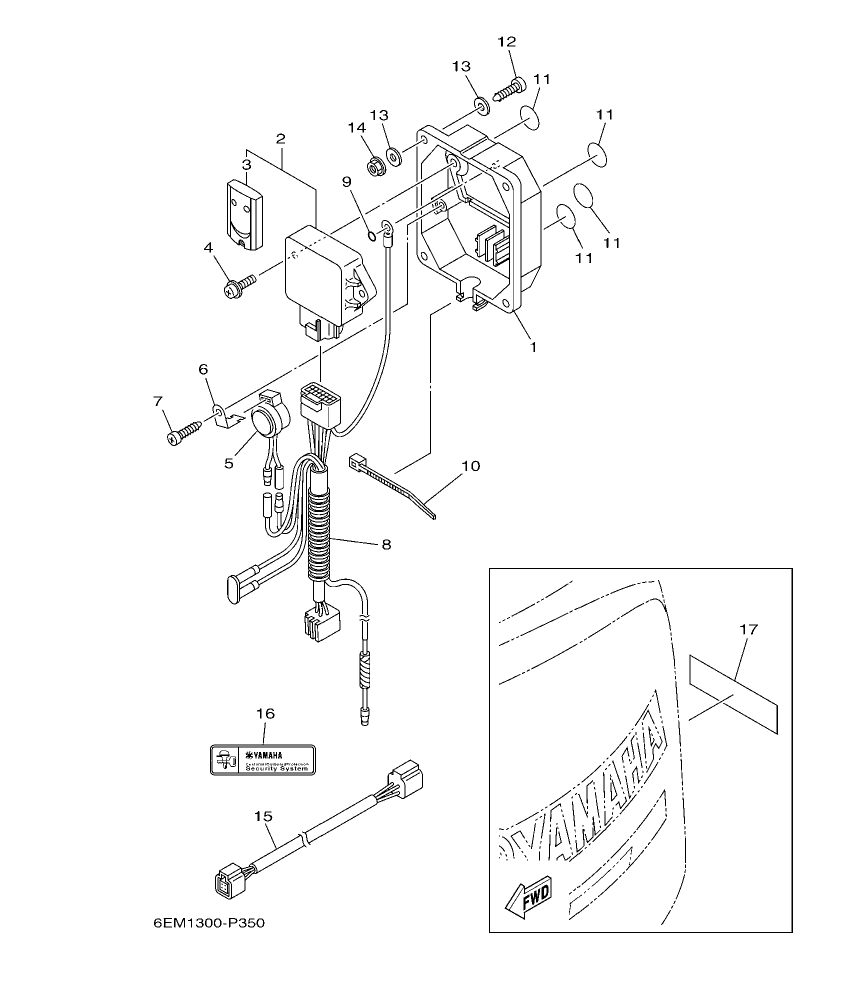

F130AET – section 35 OPTIONAL PARTS 1 parts diagram

Diagram for section 35: OPTIONAL PARTS 1.

Ref Part No. Qty Buy
1
6Y8–86267–00
CASE COMPLETE 1
 1 Ask on WhatsApp
2
6Y8–86260–02
REMOTE CONTROL UNIT ASSY
 1 Ask on WhatsApp
2
6Y8–86260–12
REMOTE CONTROL UNIT ASSY
 1 Ask on WhatsApp
3
6AA–86261–00
.XMTR. COMP.
 2 Ask on WhatsApp
3
6AA–86261–22
.XMTR. COMP.
 2 Ask on WhatsApp
4
97980–06216
SCREW, WITH WASHER
 2 Ask on WhatsApp
5
6X4–83383–00
BUZZER
 1 Ask on WhatsApp
6
6X4–83386–00
STAY, BUZZER
 1 Ask on WhatsApp
7
97780–60620
SCREW, TAPPING
 1 Ask on WhatsApp
8
6Y8–82509–10
WIRE, SUB LEAD
 1 Ask on WhatsApp
9
93210–04279
O-RING
 1 Ask on WhatsApp
10
90465–11M10
CLAMP
 1 Ask on WhatsApp
11
6Y8–8454G–00
PATCH 1
 4 Ask on WhatsApp
12
90167–06M00
SCREW, TAPPING
 4 Ask on WhatsApp
12
97880–06035
SCREW, PAN HEAD
 4 Ask on WhatsApp
13
90201–06M30
WASHER, PLATE
 8 Ask on WhatsApp
14
95780–06300
NUT, FLANGE
 4 Ask on WhatsApp
15
6Y8–82521–11
2FT PIGTAIL BUS
 1 Ask on WhatsApp
16
6Y8–48277–00
STICKER 1
 1 Ask on WhatsApp
16
6Y8–48277–00
STICKER 1
 4 Ask on WhatsApp
17
6Y8–48277–00
STICKER 1
 1 Ask on WhatsApp
