F130AET

Section 16: ELECTRICAL 1 (v2)

Engine sections in this catalog
SCHEDULED SERVICE PARTS FUEL INJECTION PUMP 1 FUEL INJECTION PUMP 2 EXHAUST FUEL 1 FUEL 2 GENERATOR ELECTRICAL 1 ELECTRICAL 2 ELECTRICAL 3 ELECTRICAL 4 TOP COWLING ELECTRICAL 5 ELECTRICAL 6 STARTING MOTOR BOTTOM COWLING 1 BOTTOM COWLING 2 CONTROL BRACKET 1 BRACKET 2 POWER TRIM & TILT ASSY 1 POWER TRIM & TILT ASSY 2 CYLINDER & CRANKCASE 1 UPPER CASING OIL PAN LOWER CASING & DRIVE 1 LOWER CASING & DRIVE 2 STEERING GUIDE OPTIONAL PARTS 1 OPTIONAL PARTS 2 REPAIR KIT 1 REPAIR KIT 2 CRANKSHAFT & PISTON CYLINDER & CRANKCASE 2 VALVE INTAKE 1 INTAKE 2 INTAKE 3
F130AET – section 16 ELECTRICAL 1 parts diagram

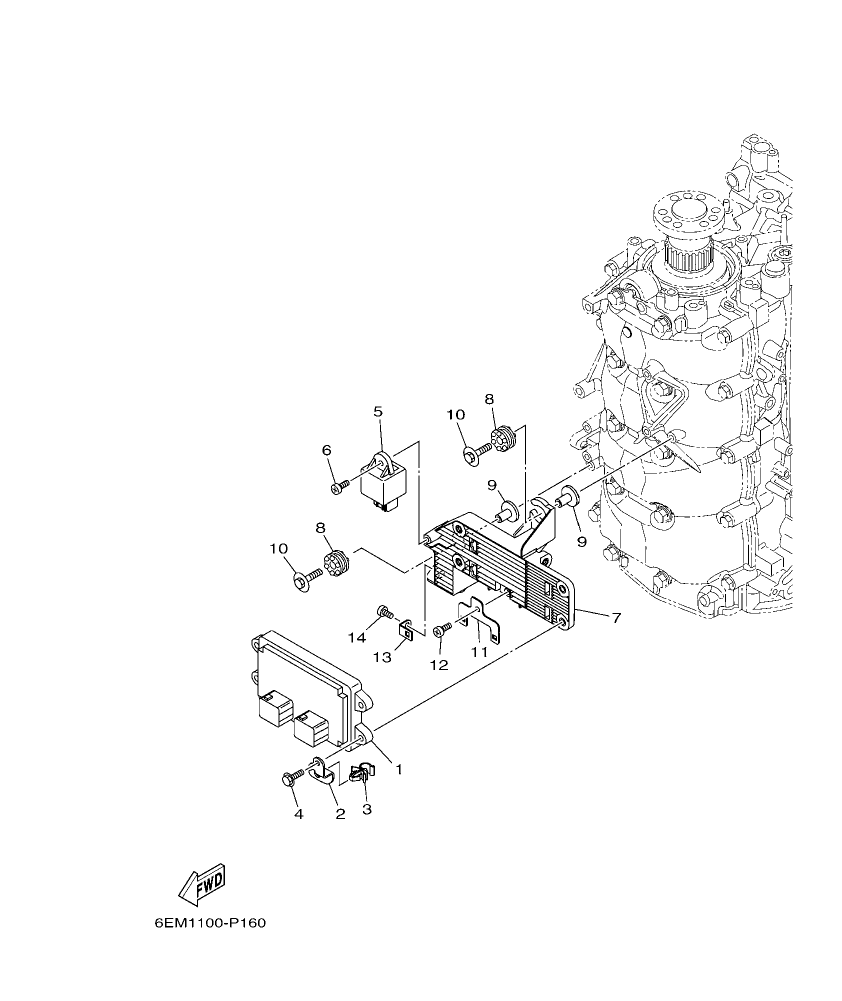

Diagram for section 16: ELECTRICAL 1.

Ref Part No. Qty Buy
1
6EM–8591A–00
ENGINE CONTROL UNIT ASSY
 1 Ask on WhatsApp
2
6EM–82398–00
PLATE 3
 1 Ask on WhatsApp
3
90464–10M32
CLAMP
 1 Ask on WhatsApp
4
97595–06520
BOLT, WITH WASHER
 4 Ask on WhatsApp
5
68V–81950–00
RELAY ASSY
 1 Ask on WhatsApp
6
97780–60620
SCREW, TAPPING
 1 Ask on WhatsApp
7
6EM–81948–00
BRACKET
 1 Ask on WhatsApp
8
60V–85564–00
GROMMET
 2 Ask on WhatsApp
9
90387–06176
COLLAR
 2 Ask on WhatsApp
10
68F–85119–00
BOLT
 2 Ask on WhatsApp
11
6C5–8257V–00
PLATE, CONNECTOR
 1 Ask on WhatsApp
12
97780–60620
SCREW, TAPPING
 1 Ask on WhatsApp
13
68V–85548–00
HOLDER
 1 Ask on WhatsApp
14
97780–60620
SCREW, TAPPING
 1 Ask on WhatsApp
