F130AET

Section 21: ELECTRICAL 6 (v2)

Engine sections in this catalog
SCHEDULED SERVICE PARTS FUEL INJECTION PUMP 1 FUEL INJECTION PUMP 2 EXHAUST FUEL 1 FUEL 2 GENERATOR ELECTRICAL 1 ELECTRICAL 2 ELECTRICAL 3 ELECTRICAL 4 TOP COWLING ELECTRICAL 5 ELECTRICAL 6 STARTING MOTOR BOTTOM COWLING 1 BOTTOM COWLING 2 CONTROL BRACKET 1 BRACKET 2 POWER TRIM & TILT ASSY 1 POWER TRIM & TILT ASSY 2 CYLINDER & CRANKCASE 1 UPPER CASING OIL PAN LOWER CASING & DRIVE 1 LOWER CASING & DRIVE 2 STEERING GUIDE OPTIONAL PARTS 1 OPTIONAL PARTS 2 REPAIR KIT 1 REPAIR KIT 2 CRANKSHAFT & PISTON CYLINDER & CRANKCASE 2 VALVE INTAKE 1 INTAKE 2 INTAKE 3

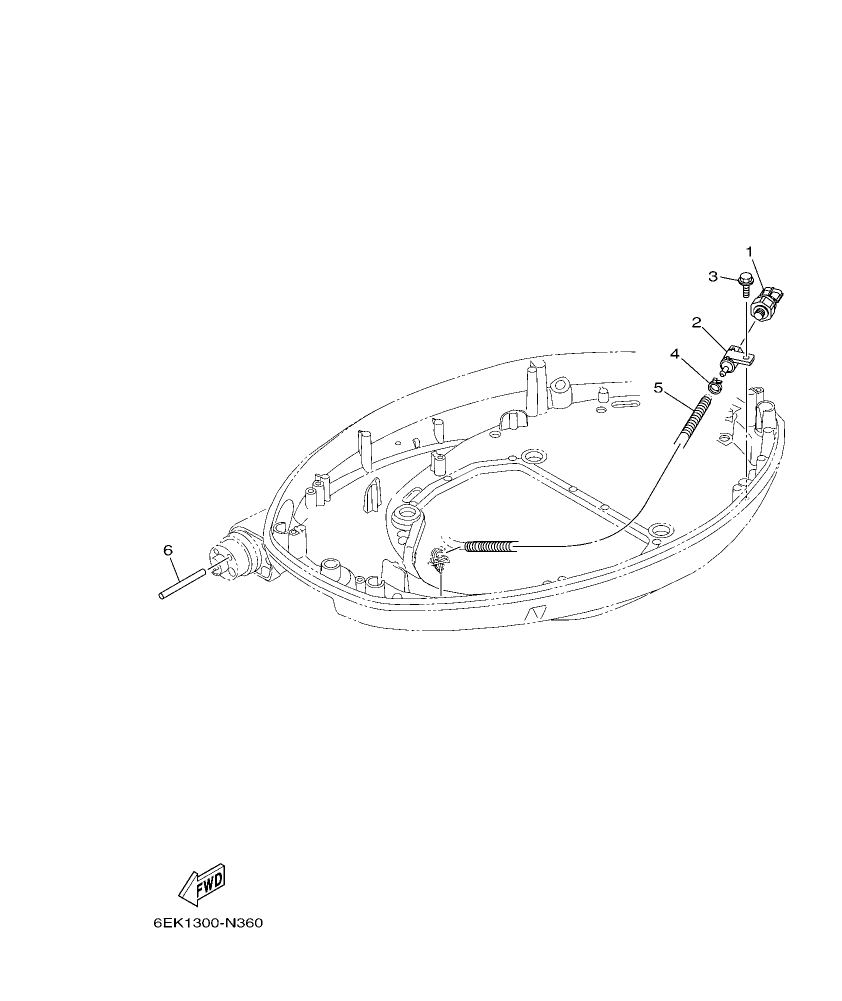

F130AET – section 21 ELECTRICAL 6 parts diagram

Diagram for section 21: ELECTRICAL 6.

Ref Part No. Qty Buy
1
6AW–8366B–01
SENSOR, WATER PRESSURE
 1 Ask on WhatsApp
2
60V–8366D–00
ADAPTOR, INPUT
 1 Ask on WhatsApp
3
90109–06M81
BOLT
 1 Ask on WhatsApp
4
90465–11M10
CLAMP
 1 Ask on WhatsApp
5
90447–07010
HOSE, WITH SPRING (L520)
 1 Ask on WhatsApp
6
60V–42629–00
SEAL
 1 Ask on WhatsApp
