F130AET

Section 8: INTAKE 2 (v2)

Engine sections in this catalog
SCHEDULED SERVICE PARTS FUEL INJECTION PUMP 1 FUEL INJECTION PUMP 2 EXHAUST FUEL 1 FUEL 2 GENERATOR ELECTRICAL 1 ELECTRICAL 2 ELECTRICAL 3 ELECTRICAL 4 TOP COWLING ELECTRICAL 5 ELECTRICAL 6 STARTING MOTOR BOTTOM COWLING 1 BOTTOM COWLING 2 CONTROL BRACKET 1 BRACKET 2 POWER TRIM & TILT ASSY 1 POWER TRIM & TILT ASSY 2 CYLINDER & CRANKCASE 1 UPPER CASING OIL PAN LOWER CASING & DRIVE 1 LOWER CASING & DRIVE 2 STEERING GUIDE OPTIONAL PARTS 1 OPTIONAL PARTS 2 REPAIR KIT 1 REPAIR KIT 2 CRANKSHAFT & PISTON CYLINDER & CRANKCASE 2 VALVE INTAKE 1 INTAKE 2 INTAKE 3

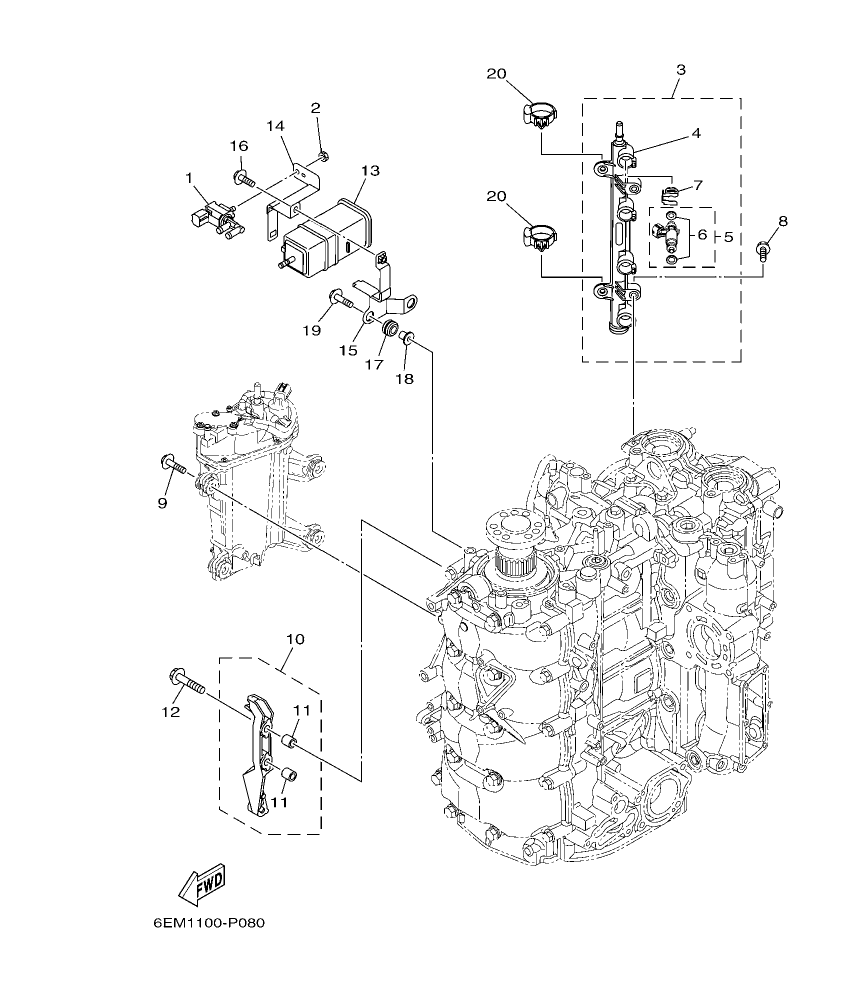

F130AET – section 8 INTAKE 2 parts diagram

Diagram for section 8: INTAKE 2.

Ref Part No. Qty Buy
1
6C5–86120–00
SOLENOID VALVE ASSY
 1 Ask on WhatsApp
2
95380–06600
NUT, HEXAGON
 1 Ask on WhatsApp
3
6EK–13160–00
DELIVERY PIPE ASSY 1
 1 Ask on WhatsApp
4
6EK–13161–00
.PIPE, DELIVERY 1
 1 Ask on WhatsApp
5
6EK–13761–00
.INJECTOR
 4 Ask on WhatsApp
6
6AW–1410B–00
..PACKING KIT
 1 Ask on WhatsApp
7
6AW–13577–10
.CLIP
 4 Ask on WhatsApp
8
90105–06M08
BOLT, FLANGE
 2 Ask on WhatsApp
9
90119–06M24
BOLT, WITH WASHER
 4 Ask on WhatsApp
10
6EM–14291–00
BRACKET 1
 1 Ask on WhatsApp
11
99590–10114
.PIN, DOWEL
 2 Ask on WhatsApp
12
90105–08M87
BOLT, FLANGE
 2 Ask on WhatsApp
13
6P2–24170–00
CANISTER ASSY
 1 Ask on WhatsApp
14
6EK–2419A–00
HOLDER
 1 Ask on WhatsApp
15
6EK–2134X–00
BRACKET, CANISTER
 1 Ask on WhatsApp
16
95895–06014
BOLT, FLANGE
 1 Ask on WhatsApp
17
90480–10M23
GROMMET
 2 Ask on WhatsApp
18
90387–06289
COLLAR
 2 Ask on WhatsApp
19
90119–06M17
BOLT, WITH WASHER
 2 Ask on WhatsApp
20
90464–07209
CLAMP
 2 Ask on WhatsApp
