F130AET

Section 1: SCHEDULED SERVICE PARTS (v2)

Engine sections in this catalog
SCHEDULED SERVICE PARTS FUEL INJECTION PUMP 1 FUEL INJECTION PUMP 2 EXHAUST FUEL 1 FUEL 2 GENERATOR ELECTRICAL 1 ELECTRICAL 2 ELECTRICAL 3 ELECTRICAL 4 TOP COWLING ELECTRICAL 5 ELECTRICAL 6 STARTING MOTOR BOTTOM COWLING 1 BOTTOM COWLING 2 CONTROL BRACKET 1 BRACKET 2 POWER TRIM & TILT ASSY 1 POWER TRIM & TILT ASSY 2 CYLINDER & CRANKCASE 1 UPPER CASING OIL PAN LOWER CASING & DRIVE 1 LOWER CASING & DRIVE 2 STEERING GUIDE OPTIONAL PARTS 1 OPTIONAL PARTS 2 REPAIR KIT 1 REPAIR KIT 2 CRANKSHAFT & PISTON CYLINDER & CRANKCASE 2 VALVE INTAKE 1 INTAKE 2 INTAKE 3

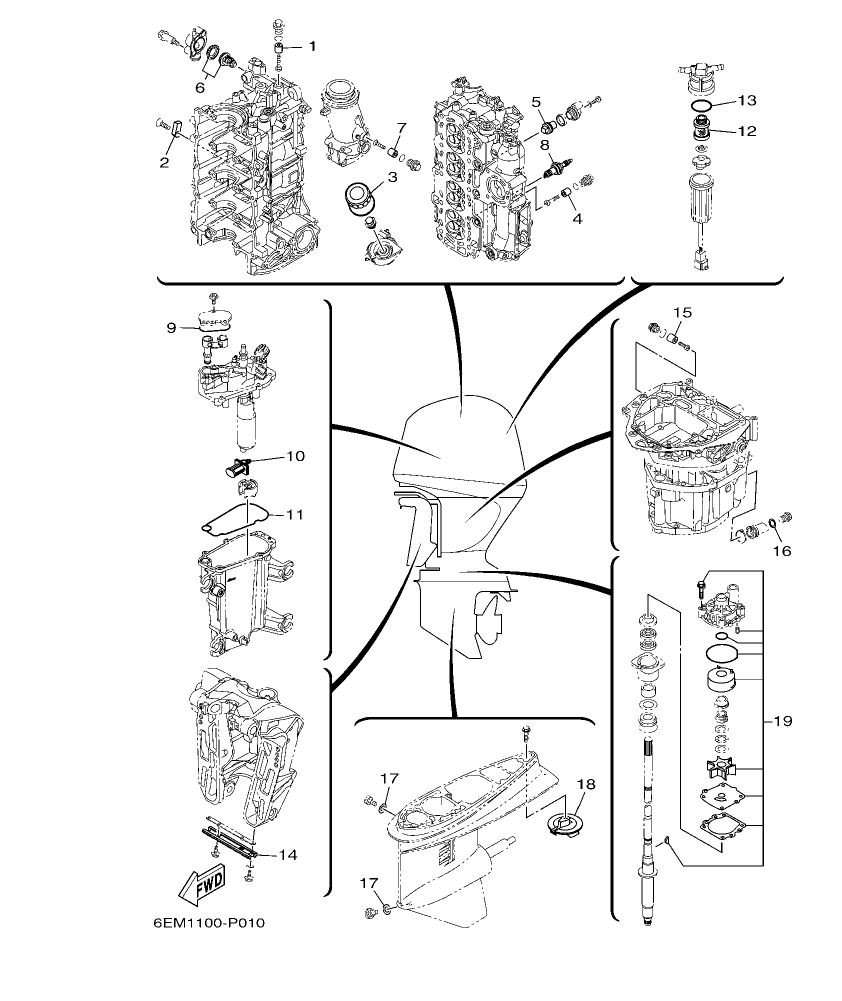

F130AET – section 1 SCHEDULED SERVICE PARTS parts diagram

Diagram for section 1: SCHEDULED SERVICE PARTS.

Ref Part No. Qty Buy
1
6G8–11325–00
ANODE
 1 Ask on WhatsApp
2
63P–11325–01
ANODE
 1 Ask on WhatsApp
3
5GH–13440–30
ELEMENT ASSY, OIL CLEANER
 1 Ask on WhatsApp
4
6G8–11325–00
ANODE
 1 Ask on WhatsApp
5
67F–11325–01
ANODE
 1 Ask on WhatsApp
6
6EK–12411–00
THERMOSTAT
 1 Ask on WhatsApp
7
6EK–11325–00
ANODE
 1 Ask on WhatsApp
8
94702–00437
PLUG, SPARK (NGK LKR6E)
 4 Ask on WhatsApp
9
6CB–13016–00
O-RING
 1 Ask on WhatsApp
10
63P–13915–00
FILTER
 1 Ask on WhatsApp
11
6CB–14984–00
GASKET, FLOAT CHAMBER
 1 Ask on WhatsApp
12
6D8–24563–00
ELEMENT, FILTER
 1 Ask on WhatsApp
13
6D8–24564–00
GASKET
 1 Ask on WhatsApp
14
6H1–45251–03
ANODE
 1 Ask on WhatsApp
15
6G8–11325–00
ANODE
 1 Ask on WhatsApp
16
90430–14M09
GASKET
 1 Ask on WhatsApp
17
90430–08020
GASKET
 2 Ask on WhatsApp
18
6E5–45371–01
TAB-TRIM
 1 Ask on WhatsApp
19
68V–W0078–00
WATER PUMP REPAIR KIT
 1 Ask on WhatsApp
