F130AET

Section 30: UPPER CASING (v2)

Engine sections in this catalog
SCHEDULED SERVICE PARTS FUEL INJECTION PUMP 1 FUEL INJECTION PUMP 2 EXHAUST FUEL 1 FUEL 2 GENERATOR ELECTRICAL 1 ELECTRICAL 2 ELECTRICAL 3 ELECTRICAL 4 TOP COWLING ELECTRICAL 5 ELECTRICAL 6 STARTING MOTOR BOTTOM COWLING 1 BOTTOM COWLING 2 CONTROL BRACKET 1 BRACKET 2 POWER TRIM & TILT ASSY 1 POWER TRIM & TILT ASSY 2 CYLINDER & CRANKCASE 1 UPPER CASING OIL PAN LOWER CASING & DRIVE 1 LOWER CASING & DRIVE 2 STEERING GUIDE OPTIONAL PARTS 1 OPTIONAL PARTS 2 REPAIR KIT 1 REPAIR KIT 2 CRANKSHAFT & PISTON CYLINDER & CRANKCASE 2 VALVE INTAKE 1 INTAKE 2 INTAKE 3

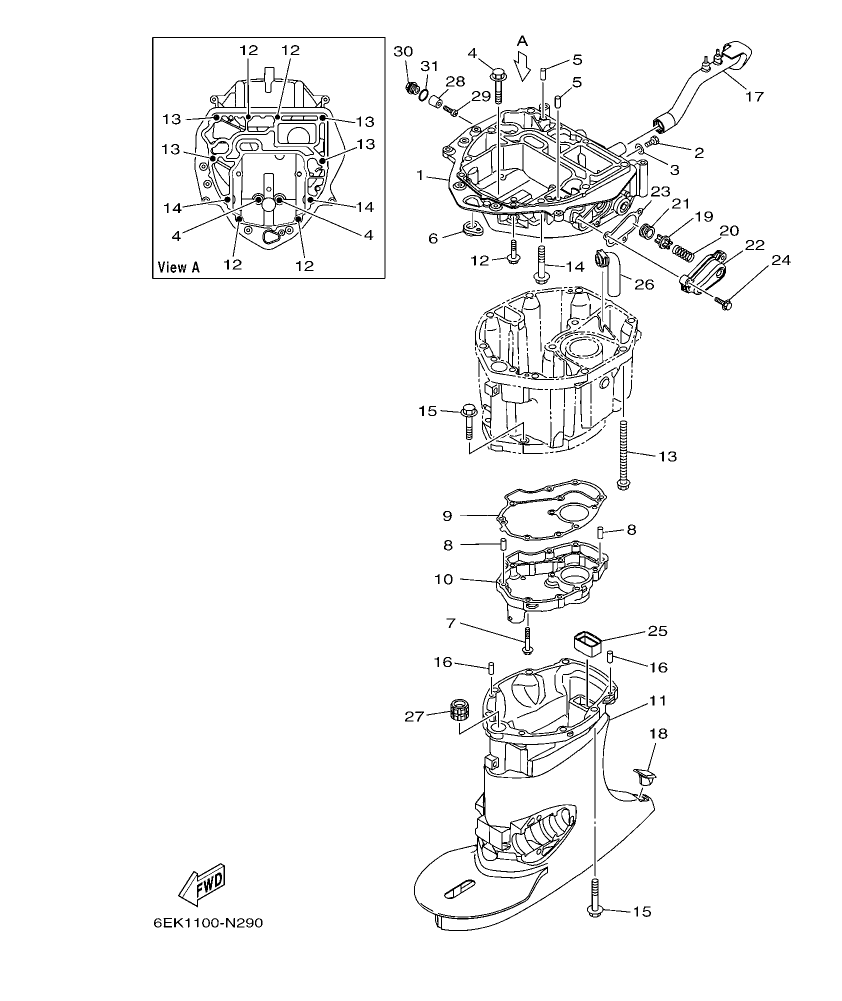

F130AET – section 30 UPPER CASING parts diagram

Diagram for section 30: UPPER CASING.

Ref Part No. Qty Buy
1
6EK–41137–00–CA
GUIDE, EXHAUST
 1 Ask on WhatsApp
2
97095–08014
BOLT
 1 Ask on WhatsApp
3
90430–08143
GASKET
 1 Ask on WhatsApp
4
97575–10545
BOLT, WITH WASHER
 2 Ask on WhatsApp
5
93608–12M05
PIN, DOWEL
 2 Ask on WhatsApp
6
6EK–42727–00
GROMMET
 1 Ask on WhatsApp
7
95895–06030
BOLT, FLANGE
 11 Ask on WhatsApp
8
93606–12019
PIN, DOWEL
 2 Ask on WhatsApp
9
6EK–41134–00
GASKET, EXHAUST MANIFOLD
 1 Ask on WhatsApp
10
6EK–45181–00–9S
PLATE
 1 Ask on WhatsApp
11
6EK–45111–00–8D
CASING, UPPER
 1 Ask on WhatsApp
11
6EK–45111–10–8D
CASING, UPPER
 1 Ask on WhatsApp
12
97575–08535
BOLT, WITH WASHER
 4 Ask on WhatsApp
13
90119–10007
BOLT, WITH WASHER
 4 Ask on WhatsApp
14
97575–10545
BOLT, WITH WASHER
 2 Ask on WhatsApp
15
97575–10545
BOLT, WITH WASHER
 8 Ask on WhatsApp
16
93606–12019
PIN, DOWEL
 2 Ask on WhatsApp
17
6EK–42769–00
SEAL, RUBBER
 1 Ask on WhatsApp
18
6C5–45155–00
CAP
 1 Ask on WhatsApp
19
6G5–12416–00
VALVE, PRESSURE CONTROL
 1 Ask on WhatsApp
20
90501–200A2
SPRING, COMPRESSION
 1 Ask on WhatsApp
21
90480–20M05
GROMMET
 1 Ask on WhatsApp
22
6EK–1246A–00–9S
COVER 1
 1 Ask on WhatsApp
23
6EK–12435–A0
GASKET
 1 Ask on WhatsApp
24
95895–06025
BOLT, FLANGE
 3 Ask on WhatsApp
25
67F–45127–00
SEAL
 1 Ask on WhatsApp
26
6EK–45135–00
PIPE
 1 Ask on WhatsApp
27
6EK–45318–00
BUSHING, DRIVE SHAFT
 1 Ask on WhatsApp
28
6G8–11325–00
ANODE
 1 Ask on WhatsApp
29
98980–05025
SCREW, BIND
 1 Ask on WhatsApp
30
6G8–11197–A0
PLUG, BLIND
 1 Ask on WhatsApp
31
93210–13M63
O-RING
 1 Ask on WhatsApp
