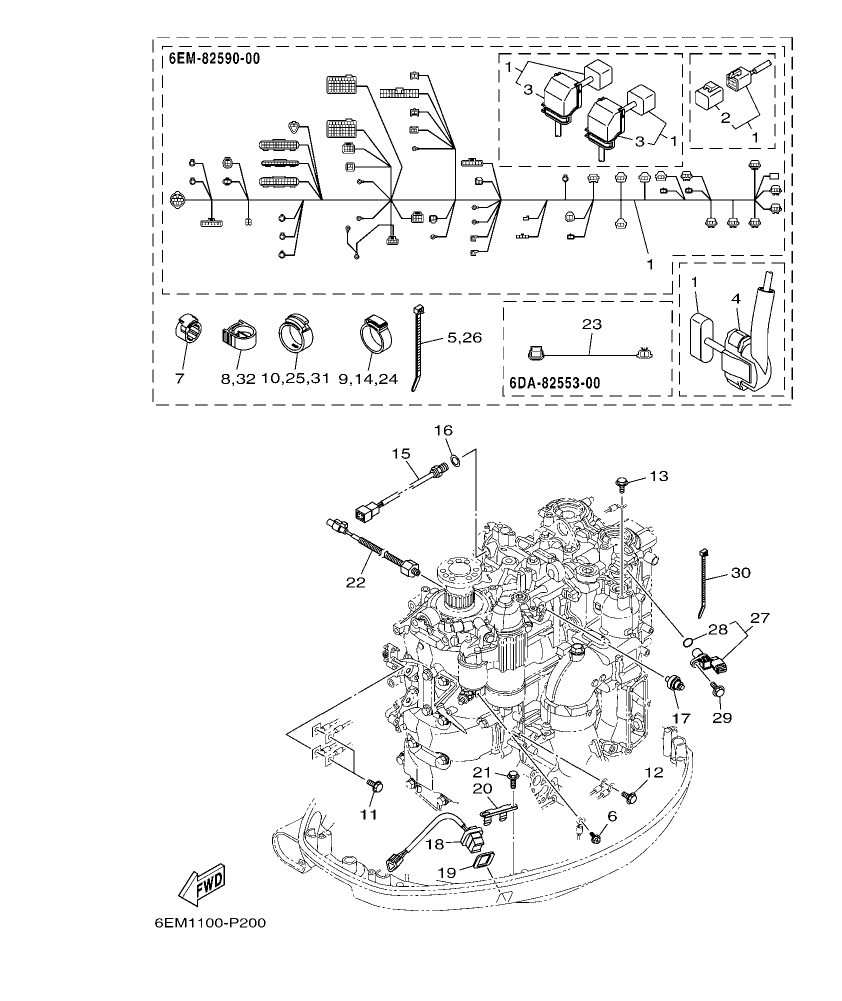

Diagram for section 20: ELECTRICAL 5.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
6EM–82590–00
WIRE HARNESS ASSY
|
1 | Ask on WhatsApp |
| 2 |
6Y8–82582–11
.CAP 1 (4PIN)
|
1 | Ask on WhatsApp |
| 3 |
6EM–82599–00
.COVER, CONNECTER
|
2 | Ask on WhatsApp |
| 4 |
6EM–82119–00
COVER, LEAD WIRE
|
1 | Ask on WhatsApp |
| 5 |
90465–13M18
CLAMP
|
1 | Ask on WhatsApp |
| 6 |
97985–04308
SCREW, WITH WASHER
|
1 | Ask on WhatsApp |
| 7 |
90464–13227
CLAMP
|
1 | Ask on WhatsApp |
| 8 |
90464–18004
CLAMP
|
1 | Ask on WhatsApp |
| 9 |
90464–26001
CLAMP
|
1 | Ask on WhatsApp |
| 10 |
90464–16001
CLAMP
|
1 | Ask on WhatsApp |
| 11 |
97595–06516
BOLT, WITH WASHER
|
2 | Ask on WhatsApp |
| 12 |
97595–06516
BOLT, WITH WASHER
|
1 | Ask on WhatsApp |
| 13 |
97595–06512
BOLT, WITH WASHER
|
1 | Ask on WhatsApp |
| 14 |
90464–26001
CLAMP
|
1 | Ask on WhatsApp |
| 15 |
6CJ–85790–00
THERMOSENSOR ASSY
|
1 | Ask on WhatsApp |
| 16 |
90430–14115
GASKET
|
1 | Ask on WhatsApp |
| 17 |
68V–82504–00
OIL PRESSURE SWITCH ASSY
|
1 | Ask on WhatsApp |
| 18 |
69J–82563–01
TRIM & TILT SWITCH ASSY
|
1 | Ask on WhatsApp |
| 19 |
69J–82587–00
GASKET
|
1 | Ask on WhatsApp |
| 20 |
69J–83614–00
BRACKET
|
1 | Ask on WhatsApp |
| 21 |
90109–06M86
BOLT
|
2 | Ask on WhatsApp |
| 22 |
6CJ–85780–00
SENSOR, KNOCK
|
1 | Ask on WhatsApp |
| 23 |
6DA–82553–00
EXTENSION, WIRE LEAD
|
1 | Ask on WhatsApp |
| 24 |
90464–26001
CLAMP
|
1 | Ask on WhatsApp |
| 25 |
90464–16001
CLAMP
|
1 | Ask on WhatsApp |
| 26 |
90465–13M18
CLAMP
|
1 | Ask on WhatsApp |
| 27 |
6P2–85896–00
SENSOR, CAM POSITION
|
1 | Ask on WhatsApp |
| 28 |
6P2–85075–00
.O-RING
|
1 | Ask on WhatsApp |
| 29 |
95895–06016
BOLT, FLANGE
|
1 | Ask on WhatsApp |
| 30 |
90465–11M59
CLAMP
|
1 | Ask on WhatsApp |
| 31 |
90464–16001
CLAMP
|
1 | Ask on WhatsApp |
| 32 |
90464–18004
CLAMP
|
1 | Ask on WhatsApp |
