F130AET

Section 6: VALVE (v2)

Engine sections in this catalog
SCHEDULED SERVICE PARTS FUEL INJECTION PUMP 1 FUEL INJECTION PUMP 2 EXHAUST FUEL 1 FUEL 2 GENERATOR ELECTRICAL 1 ELECTRICAL 2 ELECTRICAL 3 ELECTRICAL 4 TOP COWLING ELECTRICAL 5 ELECTRICAL 6 STARTING MOTOR BOTTOM COWLING 1 BOTTOM COWLING 2 CONTROL BRACKET 1 BRACKET 2 POWER TRIM & TILT ASSY 1 POWER TRIM & TILT ASSY 2 CYLINDER & CRANKCASE 1 UPPER CASING OIL PAN LOWER CASING & DRIVE 1 LOWER CASING & DRIVE 2 STEERING GUIDE OPTIONAL PARTS 1 OPTIONAL PARTS 2 REPAIR KIT 1 REPAIR KIT 2 CRANKSHAFT & PISTON CYLINDER & CRANKCASE 2 VALVE INTAKE 1 INTAKE 2 INTAKE 3

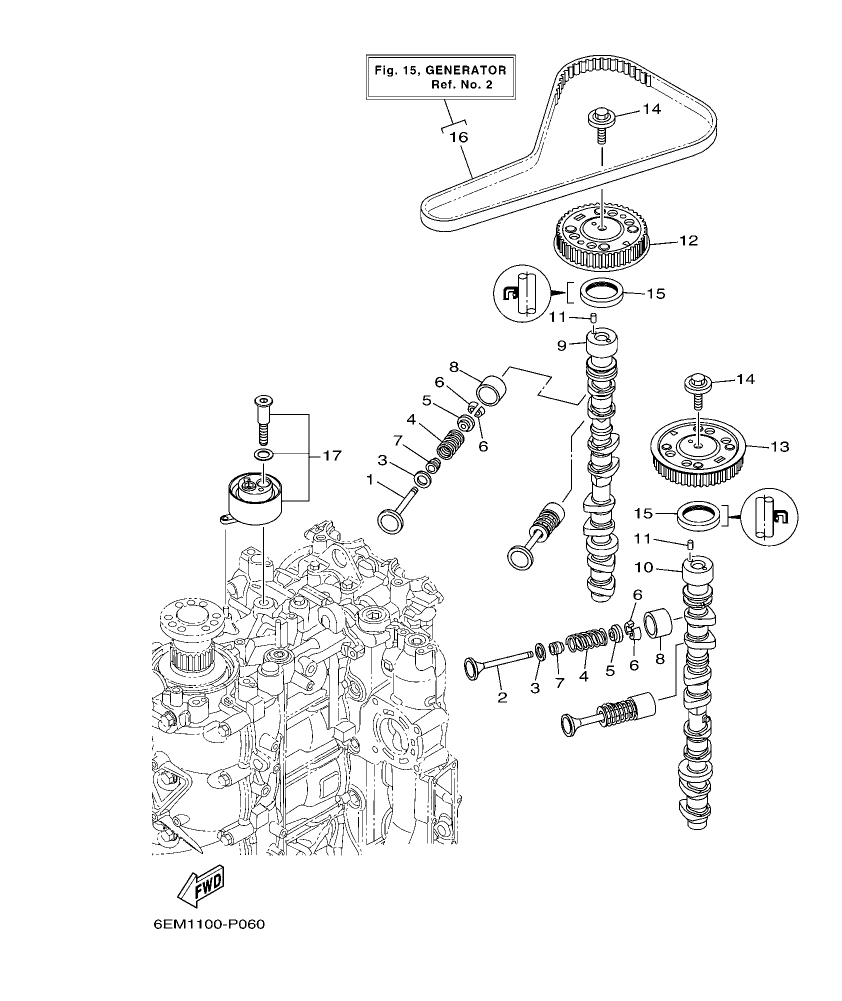

F130AET – section 6 VALVE parts diagram

Diagram for section 6: VALVE.

Ref Part No. Qty Buy
1
6EK–12111–00
VALVE, INTAKE
 8 Ask on WhatsApp
2
6EK–12121–00
VALVE, EXHAUST
 8 Ask on WhatsApp
3
62Y–12116–00
SEAT, VALVE SPRING
 16 Ask on WhatsApp
4
30X–12114–00
SPRING, VALVE OUTER
 16 Ask on WhatsApp
5
30X–12117–00
RETAINER, VALVE SPRING
 16 Ask on WhatsApp
6
30X–12118–00
LOCK, VALVE SPRING RETAINER
 32 Ask on WhatsApp
7
51Y–12119–00
SEAL, VALVE STEM
 16 Ask on WhatsApp
8
6D8–12153–00
LIFTER, VALVE (12)
 16 Ask on WhatsApp
8
6D8–12153–10
LIFTER, VALVE (14)
 16 Ask on WhatsApp
8
6D8–12153–20
LIFTER, VALVE (16)
 16 Ask on WhatsApp
8
6D8–12153–30
LIFTER, VALVE (18)
 16 Ask on WhatsApp
8
6D8–12153–40
LIFTER, VALVE (20)
 16 Ask on WhatsApp
8
6D8–12153–50
LIFTER, VALVE (22)
 16 Ask on WhatsApp
8
6D8–12153–60
LIFTER, VALVE (24)
 16 Ask on WhatsApp
8
6D8–12153–70
LIFTER, VALVE (26)
 16 Ask on WhatsApp
8
6D8–12153–80
LIFTER, VALVE (28)
 16 Ask on WhatsApp
8
6D8–12153–90
LIFTER, VALVE (30)
 16 Ask on WhatsApp
8
6D8–12153–A0
LIFTER, VALVE (32)
 16 Ask on WhatsApp
8
6D8–12153–B0
LIFTER, VALVE (34)
 16 Ask on WhatsApp
8
6D8–12153–C0
LIFTER, VALVE (36)
 16 Ask on WhatsApp
8
6D8–12153–D0
LIFTER, VALVE (38)
 16 Ask on WhatsApp
8
6D8–12153–E0
LIFTER, VALVE (40)
 16 Ask on WhatsApp
8
6D8–12153–F0
LIFTER, VALVE (42)
 16 Ask on WhatsApp
8
6D8–12153–G0
LIFTER, VALVE (44)
 16 Ask on WhatsApp
8
6D8–12153–H0
LIFTER, VALVE (46)
 16 Ask on WhatsApp
8
6D8–12153–J0
LIFTER, VALVE (48)
 16 Ask on WhatsApp
8
6D8–12153–K0
LIFTER, VALVE (50)
 16 Ask on WhatsApp
8
6D8–12153–L0
LIFTER, VALVE (52)
 16 Ask on WhatsApp
8
6D8–12153–M0
LIFTER, VALVE (54)
 16 Ask on WhatsApp
8
6D8–12153–N0
LIFTER, VALVE (56)
 16 Ask on WhatsApp
8
6D8–12153–P0
LIFTER, VALVE (58)
 16 Ask on WhatsApp
8
6D8–12153–R0
LIFTER, VALVE (60)
 16 Ask on WhatsApp
8
6D8–12153–S0
LIFTER, VALVE (62)
 16 Ask on WhatsApp
8
6D8–12153–T0
LIFTER, VALVE (64)
 16 Ask on WhatsApp
8
6D8–12153–U0
LIFTER, VALVE (66)
 16 Ask on WhatsApp
8
6D8–12153–V0
LIFTER, VALVE (68)
 16 Ask on WhatsApp
9
6EM–12171–00
CAMSHAFT 1
 1 Ask on WhatsApp
10
6EK–12181–00
CAMSHAFT 2
 1 Ask on WhatsApp
11
93605–10108
PIN, DOWEL
 2 Ask on WhatsApp
12
6EK–11537–00
GEAR, DRIVEN
 1 Ask on WhatsApp
13
6EK–11567–00
GEAR, DRIVEN 2
 1 Ask on WhatsApp
14
90119–10050
BOLT, WITH WASHER
 2 Ask on WhatsApp
15
93102–38008
OIL SEAL
 2 Ask on WhatsApp
16
6EK–W4624–00
BELT (WITH ROTOR BOLTS)
 1 Ask on WhatsApp
17
6EK–11590–00
TENSIONER ASSY
 1 Ask on WhatsApp
