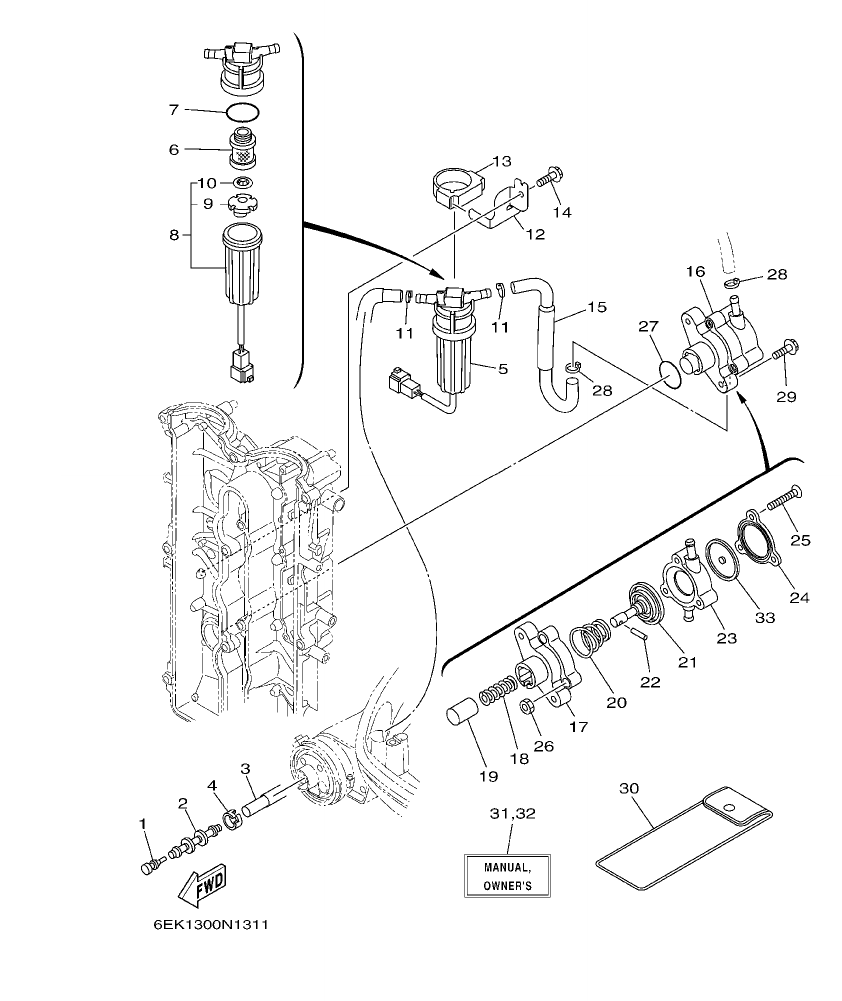

Diagram for section 13: FUEL 1.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
689–85547–00
DAMPER
|
1 | Ask on WhatsApp |
| 2 |
6AW–24377–01
PIPE, JOINT 2
|
1 | Ask on WhatsApp |
| 3 |
6EK–24314–00
PIPE 4
|
1 | Ask on WhatsApp |
| 4 |
6E5–24351–51
BAND 1
|
1 | Ask on WhatsApp |
| 5 |
6EK–24560–00
FILTER ASSY
|
1 | Ask on WhatsApp |
| 6 |
6D8–24563–00
.ELEMENT, FILTER
|
1 | Ask on WhatsApp |
| 7 |
6D8–24564–00
.GASKET
|
1 | Ask on WhatsApp |
| 8 |
6D8–24562–00
.CUP, FILTER
|
1 | Ask on WhatsApp |
| 9 |
6D8–24469–00
..FLOAT, WATER LEVEL
|
1 | Ask on WhatsApp |
| 10 |
6D8–24519–00
..CLIP
|
1 | Ask on WhatsApp |
| 11 |
90465–11M10
CLAMP
|
2 | Ask on WhatsApp |
| 12 |
6EK–24566–00
BRACKET, FILTER
|
1 | Ask on WhatsApp |
| 13 |
6EK–24568–00
BAND, FILTER
|
1 | Ask on WhatsApp |
| 14 |
95895–06016
BOLT, FLANGE
|
1 | Ask on WhatsApp |
| 15 |
6EK–24311–00
PIPE, FUEL 1
|
1 | Ask on WhatsApp |
| 16 |
6EK–24410–00
FUEL PUMP ASSY
|
1 | Ask on WhatsApp |
| 17 |
68V–24412–00
.BODY 1
|
1 | Ask on WhatsApp |
| 18 |
68V–24454–00
.SPRING
|
1 | Ask on WhatsApp |
| 19 |
63P–13131–00
.PLUNGER
|
1 | Ask on WhatsApp |
| 20 |
63P–24423–00
.SPRING, DIAPHRAGM
|
1 | Ask on WhatsApp |
| 21 |
68V–24411–00
.DIAPHRAGM
|
1 | Ask on WhatsApp |
| 22 |
68V–24374–00
.PIN
|
1 | Ask on WhatsApp |
| 23 |
6EK–24413–00
.BODY 2
|
1 | Ask on WhatsApp |
| 24 |
6EK–24414–00
.BODY 3
|
1 | Ask on WhatsApp |
| 25 |
68V–24444–00
.SCREW
|
3 | Ask on WhatsApp |
| 26 |
68V–24149–00
.NUT
|
3 | Ask on WhatsApp |
| 27 |
93210–30682
O-RING
|
1 | Ask on WhatsApp |
| 28 |
90465–11M10
CLAMP
|
2 | Ask on WhatsApp |
| 29 |
90105–06208
BOLT, FLANGE
|
2 | Ask on WhatsApp |
| 30 |
67F–28100–01
TOOL KIT
|
1 | Ask on WhatsApp |
| 31 |
6EK–28199–71–D0
MANUAL,OWNER'S
|
1 | Ask on WhatsApp |
| 31 |
6EK–28199–71–E0
MANUAL,OWNER'S
|
1 | Ask on WhatsApp |
| 31 |
6EK–28199–71–F0
MANUAL,OWNER'S
|
1 | Ask on WhatsApp |
| 31 |
6EK–28199–71–G0
MANUAL,OWNER'S
|
1 | Ask on WhatsApp |
| 31 |
6EK–28199–71–H0
MANUAL,OWNER'S
|
1 | Ask on WhatsApp |
| 31 |
6EK–28199–71–S0
MANUAL,OWNER'S
|
1 | Ask on WhatsApp |
| 32 |
6EK–28199–81–K0
MANUAL,OWNER'S
|
1 | Ask on WhatsApp |
| 32 |
6EK–28199–81–L0
MANUAL,OWNER'S
|
1 | Ask on WhatsApp |
| 32 |
6EK–28199–81–M0
MANUAL,OWNER'S
|
1 | Ask on WhatsApp |
| 32 |
6EK–28199–81–N0
MANUAL,OWNER'S
|
1 | Ask on WhatsApp |
| 32 |
6EK–28199–81–P0
MANUAL,OWNER'S
|
1 | Ask on WhatsApp |
| 32 |
6EK–28199–81–R0
MANUAL,OWNER'S
|
1 | Ask on WhatsApp |
| 33 |
68V–24471–10
.DIAPHRAGM
|
1 | Ask on WhatsApp |
