F130AET
Section 25: CONTROL (v2)
Engine sections in this catalog
SCHEDULED SERVICE PARTS
FUEL INJECTION PUMP 1
FUEL INJECTION PUMP 2
EXHAUST
FUEL 1
FUEL 2
GENERATOR
ELECTRICAL 1
ELECTRICAL 2
ELECTRICAL 3
ELECTRICAL 4
TOP COWLING
ELECTRICAL 5
ELECTRICAL 6
STARTING MOTOR
BOTTOM COWLING 1
BOTTOM COWLING 2
CONTROL
BRACKET 1
BRACKET 2
POWER TRIM & TILT ASSY 1
POWER TRIM & TILT ASSY 2
CYLINDER & CRANKCASE 1
UPPER CASING
OIL PAN
LOWER CASING & DRIVE 1
LOWER CASING & DRIVE 2
STEERING GUIDE
OPTIONAL PARTS 1
OPTIONAL PARTS 2
REPAIR KIT 1
REPAIR KIT 2
CRANKSHAFT & PISTON
CYLINDER & CRANKCASE 2
VALVE
INTAKE 1
INTAKE 2
INTAKE 3

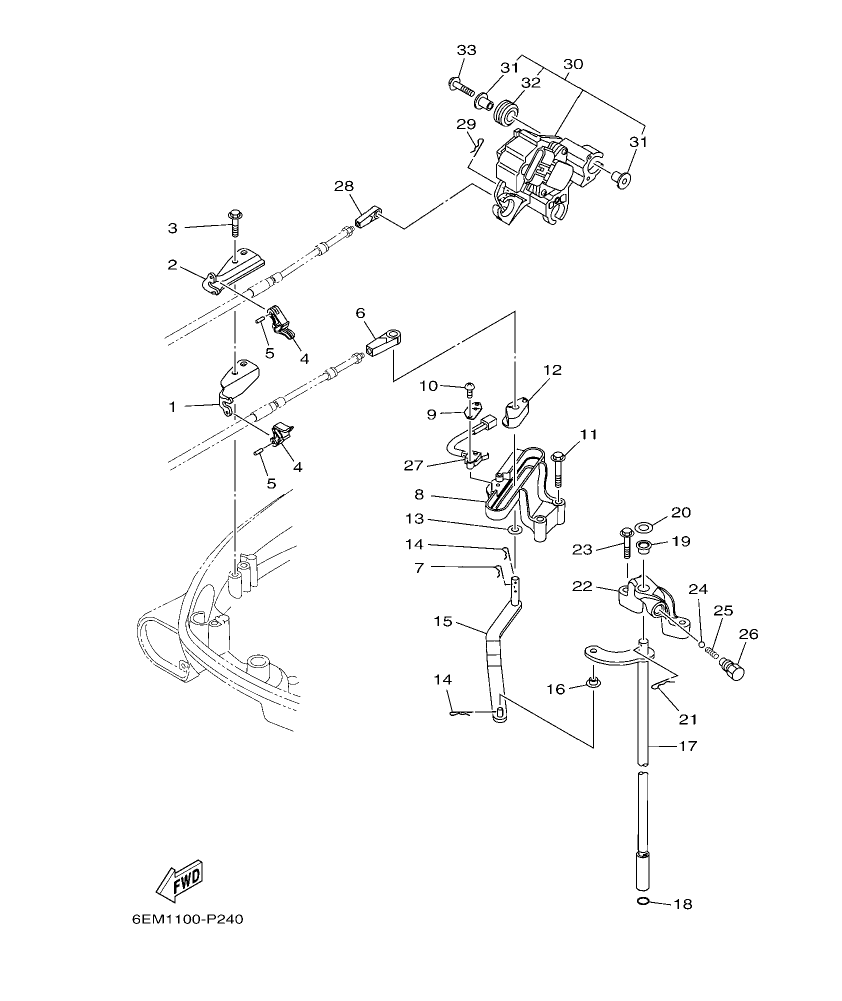

Diagram for section 25: CONTROL.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
6EK–48531–00
BRACKET, REMOTE CONTROL 1
|
1 | Ask on WhatsApp |
| 2 |
6EK–48532–00
BRACKET, REMOTE CONTROL 2
|
1 | Ask on WhatsApp |
| 3 |
90109–06M81
BOLT
|
2 | Ask on WhatsApp |
| 4 |
6EK–48538–00
CLAMP, CABLE 1
|
2 | Ask on WhatsApp |
| 5 |
91690–30010
PIN, SPRING
|
2 | Ask on WhatsApp |
| 6 |
6E5–48344–00
CABLE END, REMOTE CONTROL
|
1 | Ask on WhatsApp |
| 7 |
90468–18008
CLIP
|
1 | Ask on WhatsApp |
| 8 |
6EK–44117–00
BRACKET
|
1 | Ask on WhatsApp |
| 9 |
61A–82588–01
PLATE
|
1 | Ask on WhatsApp |
| 10 |
97985–04116
SCREW, WITH WASHER
|
2 | Ask on WhatsApp |
| 11 |
95875–06040
BOLT, FLANGE
|
2 | Ask on WhatsApp |
| 12 |
63P–44122–00
BUSHING, SHIFT ROD LEVER
|
1 | Ask on WhatsApp |
| 13 |
90202–08M20
WASHER, PLATE
|
1 | Ask on WhatsApp |
| 14 |
90468–18008
CLIP
|
2 | Ask on WhatsApp |
| 15 |
6EK–44121–00
LEVER, SHIFT ROD
|
1 | Ask on WhatsApp |
| 16 |
90386–06M12
BUSH
|
1 | Ask on WhatsApp |
| 17 |
6EK–44120–00
HANDLE GEAR SHIFT ASSY
|
1 | Ask on WhatsApp |
| 17 |
6EK–44120–10
HANDLE GEAR SHIFT ASSY
|
1 | Ask on WhatsApp |
| 18 |
93210–09165
O-RING
|
1 | Ask on WhatsApp |
| 19 |
90386–10001
BUSH
|
1 | Ask on WhatsApp |
| 20 |
90201–11008
WASHER, PLATE
|
1 | Ask on WhatsApp |
| 21 |
90468–180A0
CLIP
|
1 | Ask on WhatsApp |
| 22 |
6EK–44118–00
BRACKET
|
1 | Ask on WhatsApp |
| 23 |
95895–06030
BOLT, FLANGE
|
2 | Ask on WhatsApp |
| 24 |
93501–04M02
BALL
|
1 | Ask on WhatsApp |
| 25 |
90501–12082
SPRING, COMPRESSION
|
1 | Ask on WhatsApp |
| 26 |
648–42715–00
BUSHING
|
1 | Ask on WhatsApp |
| 27 |
60V–8259F–00
SWITCH ASSY
|
1 | Ask on WhatsApp |
| 28 |
6E5–48344–00
CABLE END, REMOTE CONTROL
|
1 | Ask on WhatsApp |
| 29 |
90468–18008
CLIP
|
1 | Ask on WhatsApp |
| 30 |
6EM–8A410–00
SENSOR UNIT
|
1 | Ask on WhatsApp |
| 31 |
69J–13716–00
.COLLAR
|
6 | Ask on WhatsApp |
| 32 |
6EM–13593–00
.DAMPER
|
3 | Ask on WhatsApp |
| 33 |
90119–06126
BOLT, WITH WASHER
|
3 | Ask on WhatsApp |
