F130AET

Section 27: BRACKET 2 (v2)

Engine sections in this catalog
SCHEDULED SERVICE PARTS FUEL INJECTION PUMP 1 FUEL INJECTION PUMP 2 EXHAUST FUEL 1 FUEL 2 GENERATOR ELECTRICAL 1 ELECTRICAL 2 ELECTRICAL 3 ELECTRICAL 4 TOP COWLING ELECTRICAL 5 ELECTRICAL 6 STARTING MOTOR BOTTOM COWLING 1 BOTTOM COWLING 2 CONTROL BRACKET 1 BRACKET 2 POWER TRIM & TILT ASSY 1 POWER TRIM & TILT ASSY 2 CYLINDER & CRANKCASE 1 UPPER CASING OIL PAN LOWER CASING & DRIVE 1 LOWER CASING & DRIVE 2 STEERING GUIDE OPTIONAL PARTS 1 OPTIONAL PARTS 2 REPAIR KIT 1 REPAIR KIT 2 CRANKSHAFT & PISTON CYLINDER & CRANKCASE 2 VALVE INTAKE 1 INTAKE 2 INTAKE 3

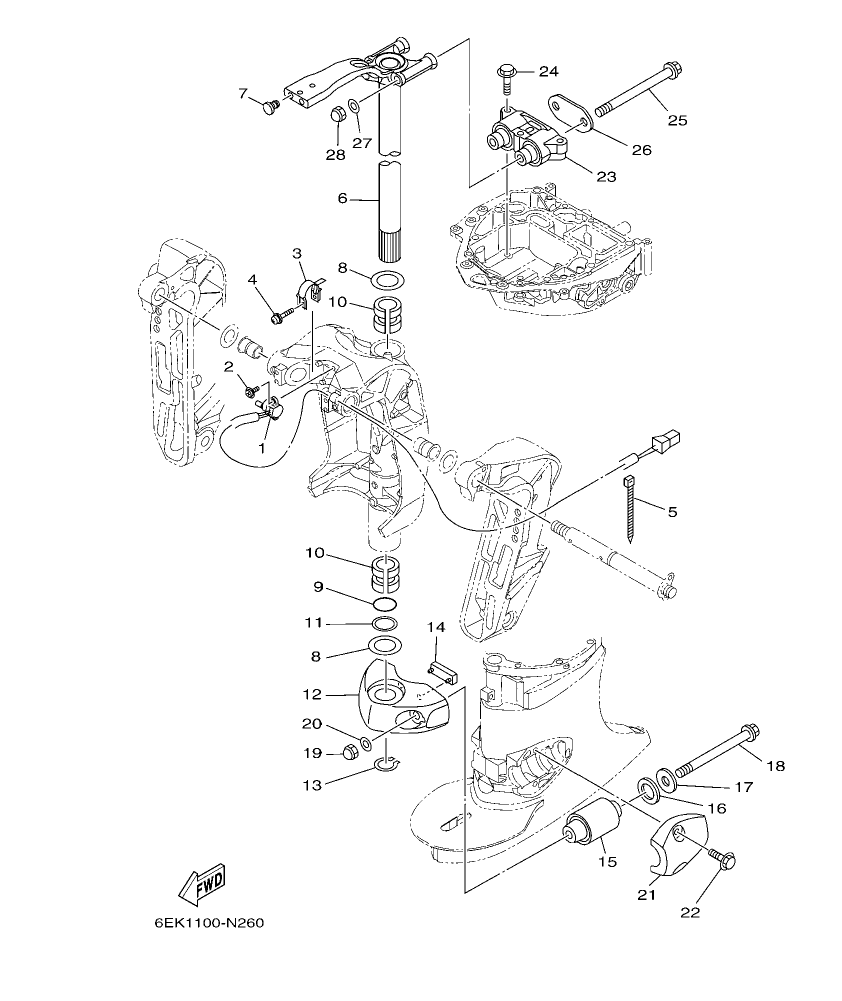

F130AET – section 27 BRACKET 2 parts diagram

Diagram for section 27: BRACKET 2.

Ref Part No. Qty Buy
1
67H–83672–01
TRIM SENDER
 1 Ask on WhatsApp
2
97985–06216
SCREW, WITH WASHER
 2 Ask on WhatsApp
3
64E–43139–10
CAM, TRIM SENDER
 1 Ask on WhatsApp
4
90159–05051
SCREW, WITH WASHER
 1 Ask on WhatsApp
5
90465–11M10
CLAMP
 2 Ask on WhatsApp
6
6EK–42510–00–8D
STEERING BRACKET ASSY
 1 Ask on WhatsApp
6
6EK–42510–10–8D
STEERING BRACKET ASSY
 1 Ask on WhatsApp
7
90338–08174
PLUG
 2 Ask on WhatsApp
8
90201–38M60
WASHER, PLATE
 2 Ask on WhatsApp
9
93210–37MH7
O-RING
 1 Ask on WhatsApp
10
90386–38M32
BUSH
 2 Ask on WhatsApp
11
90202–40M47
WASHER, PLATE
 1 Ask on WhatsApp
12
6EK–44551–00–8D
HOUSING, LOWER MOUNT RUBBER 1
 1 Ask on WhatsApp
13
93410–37M04
CIRCLIP
 1 Ask on WhatsApp
14
61A–44575–00
DAMPER, LOWER MOUNT RUBBER
 1 Ask on WhatsApp
15
63P–44555–00
MOUNT DAMPER, LOWER SIDE
 2 Ask on WhatsApp
16
90202–32M19
WASHER, PLATE
 2 Ask on WhatsApp
17
90201–16M55
WASHER, PLATE
 2 Ask on WhatsApp
18
90105–14013
BOLT, FLANGE
 2 Ask on WhatsApp
19
90176–14002
NUT, CROWN
 2 Ask on WhatsApp
20
92995–14600
WASHER
 2 Ask on WhatsApp
21
6EK–44553–00–8D
COVER, LOWER MOUNT
 2 Ask on WhatsApp
22
95875–10040
BOLT, FLANGE
 4 Ask on WhatsApp
23
6EK–44514–00
MOUNT DAMPER, UPPER SIDE
 1 Ask on WhatsApp
24
95875–10060
BOLT, FLANGE
 3 Ask on WhatsApp
25
90105–14007
BOLT, FLANGE
 2 Ask on WhatsApp
26
6EK–44526–00
PLATE
 1 Ask on WhatsApp
27
92995–14600
WASHER
 2 Ask on WhatsApp
28
90176–14002
NUT, CROWN
 2 Ask on WhatsApp
