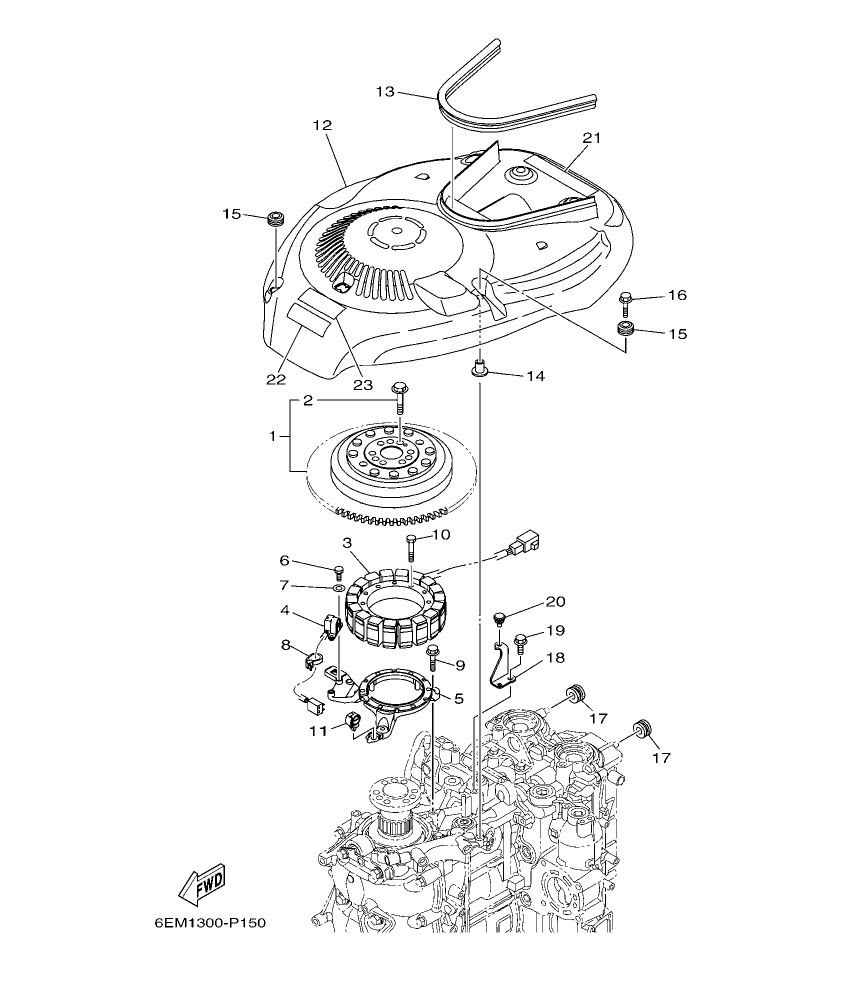

F130AET – section 15 GENERATOR parts diagram

Diagram for section 15: GENERATOR.

Ref Part No. Qty Buy
1
6EK–W8145–00
ROTOR ASSY WITH BOLTS
 1 Ask on WhatsApp
2
6EK–W9010–00
.BOLT SET
 1 Ask on WhatsApp
3
6EK–81410–00
STATOR ASSY
 1 Ask on WhatsApp
4
6CB–85580–00
COIL, PULSER
 1 Ask on WhatsApp
5
6EK–85561–00
BASE, MAGNETO
 1 Ask on WhatsApp
6
97095–05016
BOLT
 2 Ask on WhatsApp
7
92995–05600
WASHER
 2 Ask on WhatsApp
8
90465–13M97
CLAMP
 1 Ask on WhatsApp
9
95895–06030
BOLT, FLANGE
 3 Ask on WhatsApp
10
91312–06035
BOLT
 6 Ask on WhatsApp
11
90464–13249
CLAMP
 1 Ask on WhatsApp
12
6EK–81337–00
COVER, FLYWHEEL
 1 Ask on WhatsApp
13
6EK–42617–00
DAMPER, FORM
 1 Ask on WhatsApp
14
90387–06119
COLLAR
 1 Ask on WhatsApp
15
6A0–82317–00
DAMPER, IGNITION COIL
 2 Ask on WhatsApp
16
95895–06030
BOLT, FLANGE
 1 Ask on WhatsApp
17
90480–12314
GROMMET
 2 Ask on WhatsApp
18
6EK–8132G–00
PLATE
 1 Ask on WhatsApp
19
95895–06016
BOLT, FLANGE
 1 Ask on WhatsApp
20
90480–06M19
GROMMET
 1 Ask on WhatsApp
21
6EK–13437–60
MARK, CAUTION
 1 Ask on WhatsApp
22
6EE–81994–40
LABEL, SAFETY
 1 Ask on WhatsApp
23
6EE–81994–50
LABEL, SAFETY
 1 Ask on WhatsApp
