F130AET

Section 12: EXHAUST (v2)

Engine sections in this catalog
SCHEDULED SERVICE PARTS FUEL INJECTION PUMP 1 FUEL INJECTION PUMP 2 EXHAUST FUEL 1 FUEL 2 GENERATOR ELECTRICAL 1 ELECTRICAL 2 ELECTRICAL 3 ELECTRICAL 4 TOP COWLING ELECTRICAL 5 ELECTRICAL 6 STARTING MOTOR BOTTOM COWLING 1 BOTTOM COWLING 2 CONTROL BRACKET 1 BRACKET 2 POWER TRIM & TILT ASSY 1 POWER TRIM & TILT ASSY 2 CYLINDER & CRANKCASE 1 UPPER CASING OIL PAN LOWER CASING & DRIVE 1 LOWER CASING & DRIVE 2 STEERING GUIDE OPTIONAL PARTS 1 OPTIONAL PARTS 2 REPAIR KIT 1 REPAIR KIT 2 CRANKSHAFT & PISTON CYLINDER & CRANKCASE 2 VALVE INTAKE 1 INTAKE 2 INTAKE 3

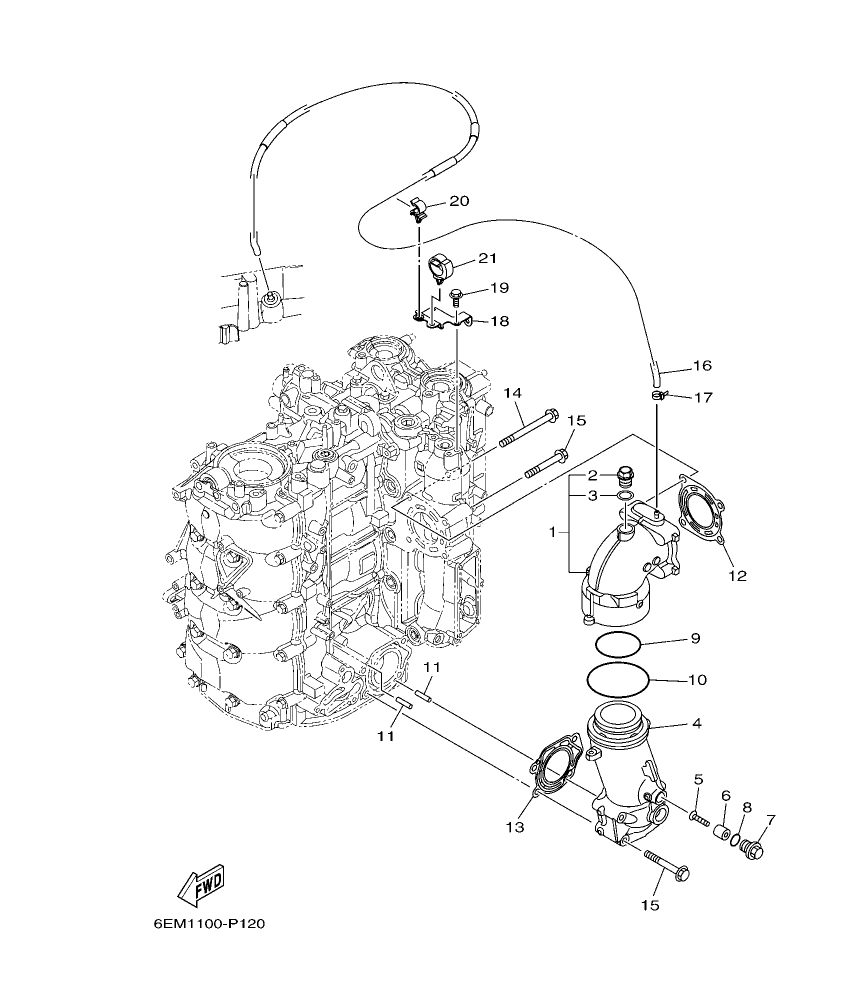

F130AET – section 12 EXHAUST parts diagram

Diagram for section 12: EXHAUST.

Ref Part No. Qty Buy
1
6EK–14615–00
JOINT, EXHAUST 1
 1 Ask on WhatsApp
2
90340–18M09
.PLUG, STRAIGHT SCREW
 1 Ask on WhatsApp
3
90201–186F1
.WASHER, PLATE
 1 Ask on WhatsApp
4
6EK–14625–00
JOINT, EXHAUST 2
 1 Ask on WhatsApp
5
98780–05025
SCREW, FLAT HEAD
 1 Ask on WhatsApp
6
6EK–11325–00
ANODE
 1 Ask on WhatsApp
7
6G8–11197–A0
PLUG, BLIND
 1 Ask on WhatsApp
8
93210–13M63
O-RING
 1 Ask on WhatsApp
9
93210–64001
O-RING
 1 Ask on WhatsApp
10
93210–84001
O-RING
 1 Ask on WhatsApp
11
91690–50014
PIN, SPRING
 2 Ask on WhatsApp
12
6EK–41114–00
GASKET, EXHAUST OUTER COVER
 1 Ask on WhatsApp
13
6EK–41124–00
GASKET, EXHAUST OUTER COVER
 1 Ask on WhatsApp
14
90105–08247
BOLT, FLANGE
 2 Ask on WhatsApp
15
90105–08220
BOLT, FLANGE
 6 Ask on WhatsApp
16
6EM–42542–00
PIPE
 1 Ask on WhatsApp
17
90465–11M10
CLAMP
 1 Ask on WhatsApp
18
6EK–82398–00
PLATE 3
 1 Ask on WhatsApp
19
95895–06012
BOLT, FLANGE
 2 Ask on WhatsApp
20
90464–09129
CLAMP
 1 Ask on WhatsApp
21
90464–12183
CLAMP
 1 Ask on WhatsApp
